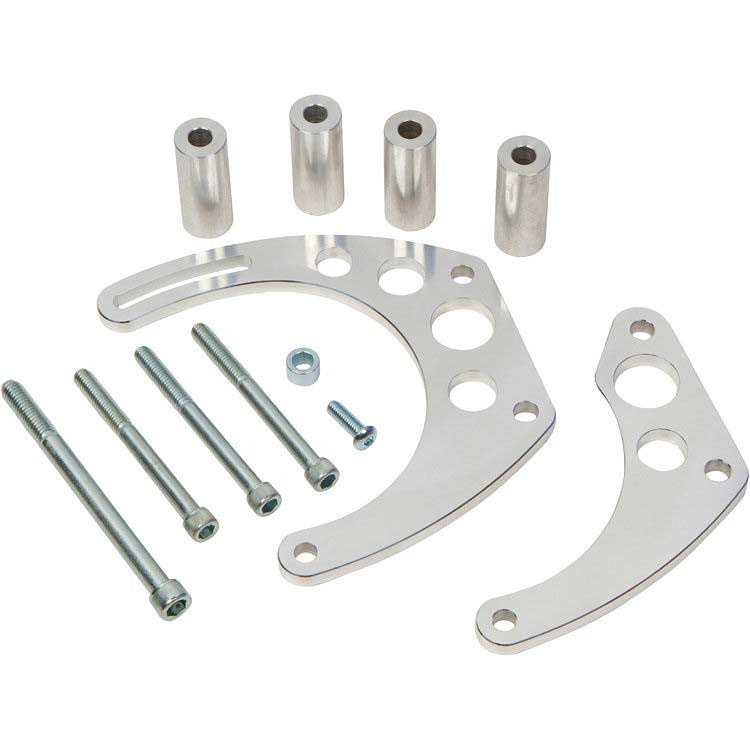

This CVF Racing V-belt alternator bracket mounts the alternator on the passenger side cylinder head of a Big Block Chevy 396/427/454 using short water pump pulley spacing. It works with a mechanical short water pump or an electric water pump, fits all BBC engines including tall deck versions, and has a Polished finish.
Specifications:
- Engine: Big Block Chevy 396, 427 and 454 CID
- Block: Standard or tall deck
- Drive: V-belt
- Water pump: Mechanical short or electric
- Pulley spacing: Short water pump pulleys required
- Alternator position: Mid mount, passenger side cylinder head
- Pulleys: OEM or CVF Racing
- Finish: Polished
- Part number: 454-ALTBRKT-HP-SWP
Application Notes:
- Must be used with short water pump pulleys for proper alignment.
- With an electric water pump, use a short water pump crankshaft pulley such as BBCS1CR, BBCS2CR or BBCS3CR.
- For power steering, pair with bracket 454-PSBRKT-C-SWP.
- Some makes, models or engine placements may also require 454-ALTBRKT-RELO for A-arm clearance.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which power steering bracket matches the CVF Racing 454-ALTBRKT-HP-SWP?
CVF pairs this alternator bracket with power steering bracket part number 454-PSBRKT-C-SWP.
What crank pulley is needed with an electric water pump?
Use a short water pump crankshaft pulley such as BBCS1CR, BBCS2CR or BBCS3CR.
Will the alternator clear the A-arms?
Some makes, models or engine placements may also require the 454-ALTBRKT-RELO bracket for A-arm clearance.
Does it fit tall deck engines?
Yes. CVF lists it for all BBC engines, including tall deck engines.
What finish is 454-ALTBRKT-HP-SWP?
This listing (454-ALTBRKT-HP-SWP) is the Polished version. CVF also lists the same bracket in Stealth Black (B-454-ALTBRKT-HP-SWP).
