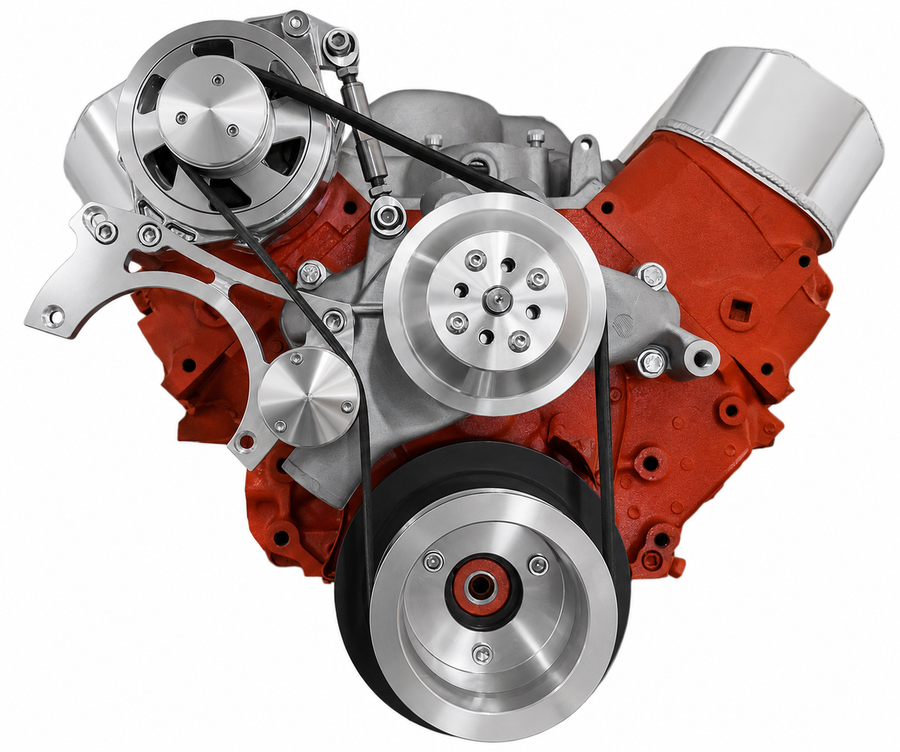

This CVF Racing Beast mid-mount serpentine conversion kit sets up an 8-rib serpentine drive for alternator only on a Big Block Chevy 396/427/454 with a standard Chevy long water pump. The alternator mounts mid-height on the passenger side on a combined alternator and AC bracket. Brackets and pulleys have a Polished finish.
Specifications:
- Engine: Big Block Chevy 396, 427 and 454
- Belt: 8-rib serpentine
- Water pump: Mechanical, standard Chevy long water pump (not included)
- Alternator position: Mid mount, passenger side
- Finish: Polished
- Belts options: Belts Not Included, Include 8-Rib Serpentine Belt(s)
- Part number: 454-SERPENTINE-ALT-BP
Kit Includes:
- 1-belt water pump pulley
- 1-belt crankshaft pulley
- 1-belt alternator pulley
- 1-belt idler pulley
- Passenger side alternator and AC bracket
- Universal alternator fan
Not Included: Alternator and water pump. Belts are included only when the belt option is selected.
Application Notes:
- This kit uses the mid-mount alternator and AC bracket and is intended for vehicles that run or may add air conditioning. CVF recommends its standard high mount kit if AC will not be added later.
- An adapter kit for older cylinder heads with 7/16" threaded holes is offered separately.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is included with the CVF Racing 454-SERPENTINE-ALT-BP?
The kit includes 1-belt water pump pulley, 1-belt crankshaft pulley, 1-belt alternator pulley, 1-belt idler pulley, passenger side alternator and AC bracket and universal alternator fan.
Which accessories are not included?
Alternator and water pump. Belts are included only when the belt option is selected.
Should this kit be used without air conditioning?
CVF designed this mid-mount bracket for AC applications and recommends its standard high mount kit if AC will not be added later.
Can it be used on older big block heads with 7/16" threaded holes?
Yes, with an adapter kit for 7/16" threaded holes that CVF offers separately.
What finish is 454-SERPENTINE-ALT-BP?
This listing (454-SERPENTINE-ALT-BP) is the Polished version. CVF also lists the same kit in Stealth Black (B-454-SERPENTINE-ALT-BP).
