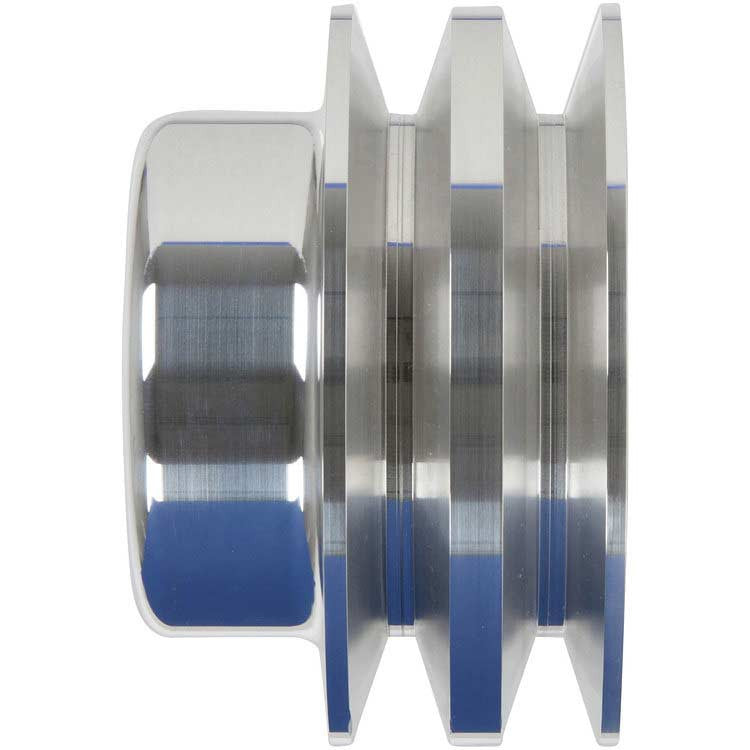

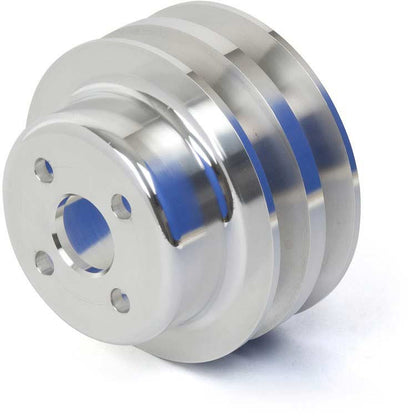

This CVF Racing billet aluminum water pump pulley has two V-belt grooves and fits 1975 to 1976 Toyota Land Cruiser FJ40 and FJ45 models with the 2F engine, the long water pump (6-3/16 inches tall) and no fan clutch. It is designed to work with the stock power steering and alternator brackets.
For reference, CVF lists Land Cruiser water pump heights as 5-5/16 inches for the 1968 to 1975 short pump, 6-3/16 inches for the 1975 to 1976 long pump, and 4-13/16 inches for the 1976 and later clutch fan pump.
Specifications:
- Grooves: 2 (V-belt)
- Diameter: 4.8"
- Overall length: 3.1"
- Bolt pattern: 4-bolt
- Bolt circle: 2.0"
- Pilot diameter: 1.13"
- Water pump: Long style, 6-3/16" tall, no fan clutch
- Engine: Toyota 2F
- Material: Billet aluminum
- Finish: Polished
- Part number: TLCL2WP
Vehicle Applications (2F engine with long water pump and no fan clutch, as listed by CVF):
- 1975 Toyota Land Cruiser FJ40
- 1976 Toyota Land Cruiser FJ40
- 1975 Toyota Land Cruiser FJ45
- 1976 Toyota Land Cruiser FJ45
FAQ
Which Land Cruisers does the TLCL2WP fit?
It fits 1975 to 1976 Toyota Land Cruiser FJ40 and FJ45 models with the 2F engine, the long water pump and no fan clutch.
How tall is the long water pump?
CVF lists the 1975 to 1976 long water pump at 6-3/16 inches tall.
What are the dimensions?
It is 4.8 inches in diameter and 3.1 inches long, with a 4-bolt pattern on a 2.0 inch bolt circle and a 1.13 inch pilot.
