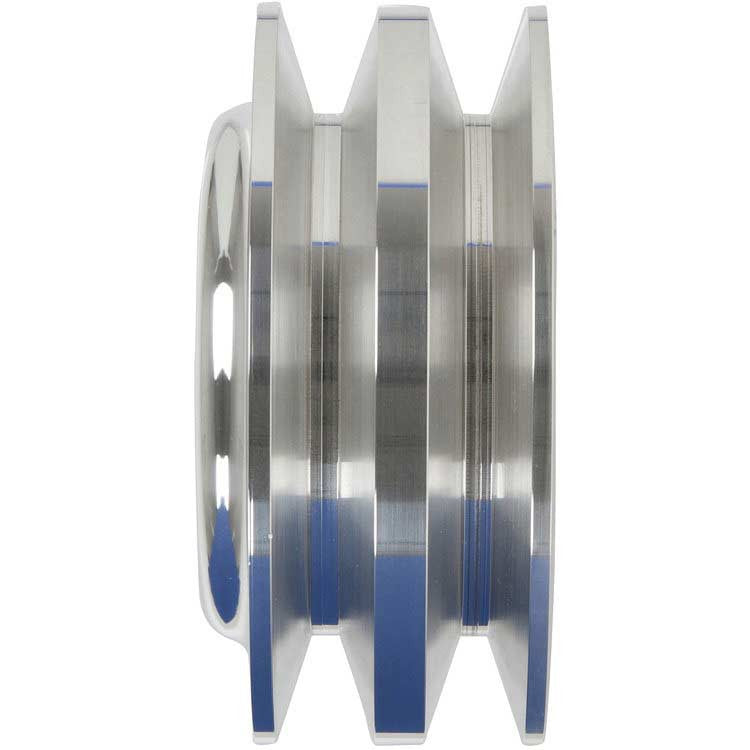

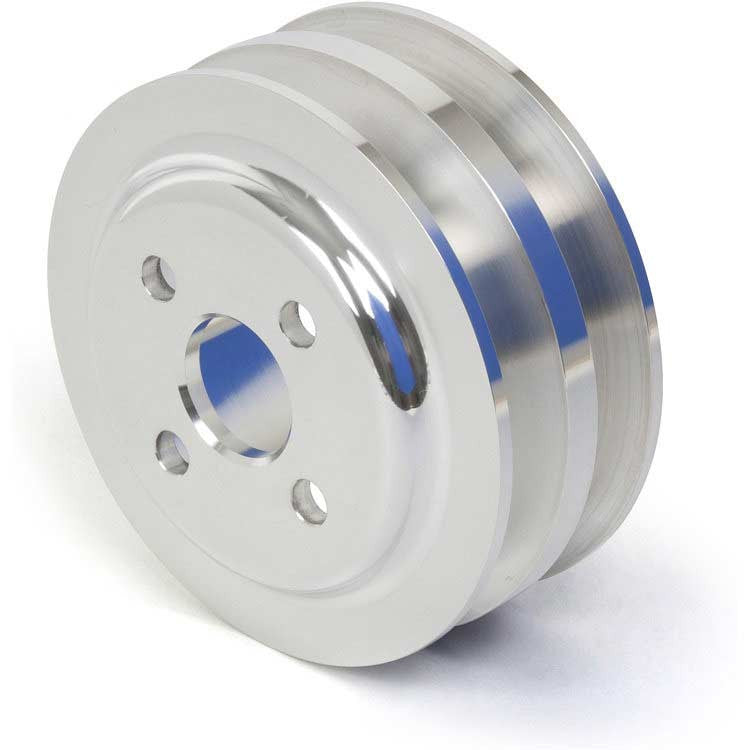

This CVF Racing billet aluminum water pump pulley has two V-belt grooves and fits 1968 to 1975 Toyota Land Cruiser FJ40 and FJ45 models with the F or 2F engine, the short water pump (5-5/16 inches tall) and no fan clutch. It is designed to work with the stock power steering and alternator brackets.
For reference, CVF lists Land Cruiser water pump heights as 5-5/16 inches for the 1968 to 1975 short pump, 6-3/16 inches for the 1975 to 1976 long pump, and 4-13/16 inches for the 1976 and later clutch fan pump.
Specifications:
- Grooves: 2 (V-belt)
- Diameter: 4.8"
- Overall length: 2.2"
- Bolt pattern: 4-bolt
- Bolt circle: 2.0"
- Pilot diameter: 1.13"
- Water pump: Short style, 5-5/16" tall, no fan clutch
- Engine: Toyota F and 2F
- Material: Billet aluminum
- Finish: Polished
- Part number: TLCE2WP
Vehicle Applications (F or 2F engine with short water pump and no fan clutch, as listed by CVF):
- 1968 Toyota Land Cruiser FJ40
- 1969 Toyota Land Cruiser FJ40
- 1970 Toyota Land Cruiser FJ40
- 1971 Toyota Land Cruiser FJ40
- 1972 Toyota Land Cruiser FJ40
- 1973 Toyota Land Cruiser FJ40
- 1974 Toyota Land Cruiser FJ40
- 1975 Toyota Land Cruiser FJ40
- 1968 Toyota Land Cruiser FJ45
- 1969 Toyota Land Cruiser FJ45
- 1970 Toyota Land Cruiser FJ45
- 1971 Toyota Land Cruiser FJ45
- 1972 Toyota Land Cruiser FJ45
- 1973 Toyota Land Cruiser FJ45
- 1974 Toyota Land Cruiser FJ45
- 1975 Toyota Land Cruiser FJ45
FAQ
Which Land Cruisers does the TLCE2WP fit?
It fits 1968 to 1975 Toyota Land Cruiser FJ40 and FJ45 models with the F or 2F engine, the short water pump and no fan clutch.
How can I tell which water pump I have?
CVF lists the short pump at 5-5/16 inches tall, the 1975 to 1976 long pump at 6-3/16 inches, and the 1976 and later clutch fan pump at 4-13/16 inches.
What are the dimensions?
It is 4.8 inches in diameter and 2.2 inches long, with a 4-bolt pattern on a 2.0 inch bolt circle and a 1.13 inch pilot.
