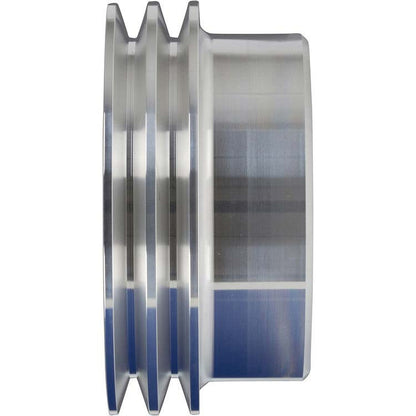

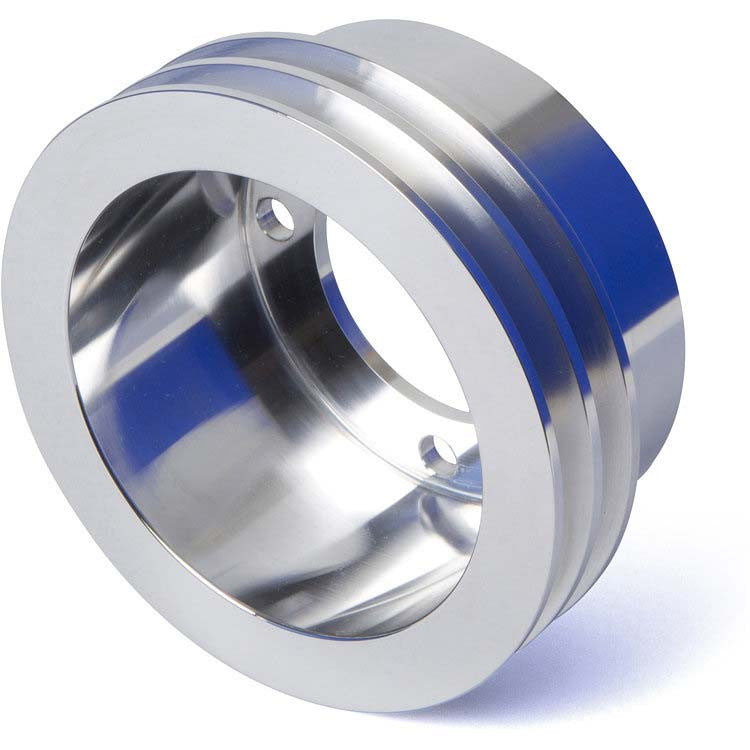

This CVF Racing billet aluminum crankshaft pulley has two V-belt grooves and fits AMC, AMX and Jeep 304, 360 and 401 V8 engines from 1976 and earlier that use the 3-bolt crank pulley on the OEM damper. It works with the stock power steering and alternator brackets.
It is made for the factory damper only. CVF notes that it will not fit the ATI aftermarket damper, since most aftermarket AMC dampers use the Big Block Chevy 3-bolt pulley pattern.
Specifications:
- Grooves: 2 (V-belt)
- Diameter: 5.6"
- Overall length: 3.9"
- Bolt pattern: 3-bolt
- Bolt circle: 2.7"
- Material: Billet aluminum
- Finish: Polished
- Engine: AMC, AMX and Jeep 304, 360 and 401 V8 with 3-bolt OEM damper, 1976 and earlier
- Part number: AMCE2CR
Application Notes:
- For use with the OEM damper only; not compatible with the ATI aftermarket damper.
FAQ
What engines does the AMCE2CR fit?
It fits AMC, AMX and Jeep 304, 360 and 401 V8 engines from 1976 and earlier that have the 3-bolt OEM damper.
Will it fit an ATI damper?
No. CVF states this pulley is designed for the OEM damper only and will not fit the ATI aftermarket damper.
What are the dimensions?
It is 5.6 inches in diameter and 3.9 inches long overall, with a 3-bolt pattern on a 2.7 inch bolt circle.
Does it work with the stock brackets?
Yes. CVF designed it for use with the stock power steering and alternator brackets.
