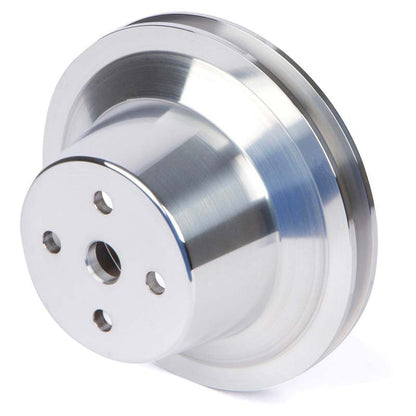

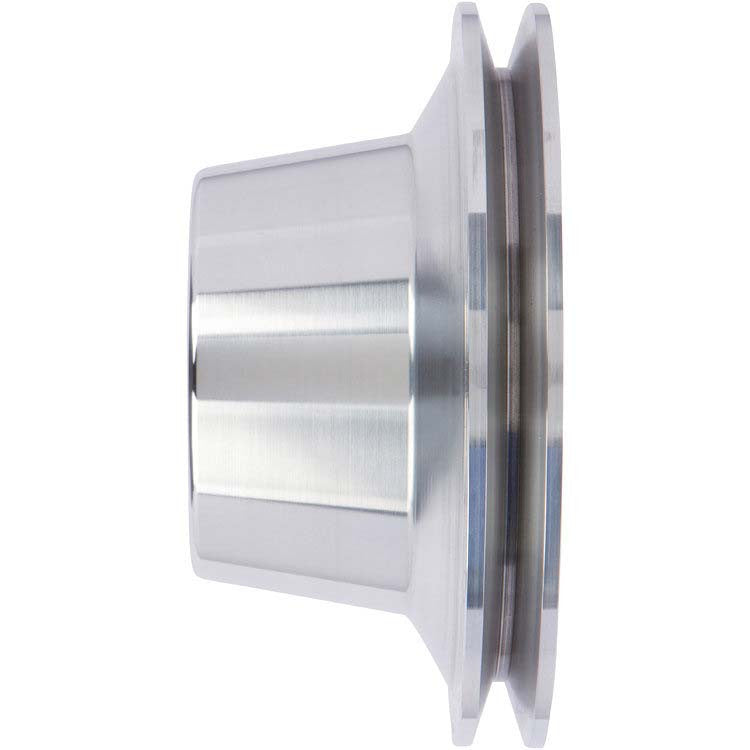

This CVF Racing billet aluminum water pump pulley is a single-groove V-belt design for AMC, AMX and Jeep 258 six-cylinder engines without power steering. It is designed to work with the stock power steering and alternator brackets.
It measures 5.9 inches in diameter and 2.75 inches in overall length and has a polished finish.
Specifications:
- Grooves: 1 (V-belt)
- Diameter: 5.9"
- Overall length: 2.75"
- Bolt pattern: 4-bolt
- Bolt circle: 1.95"
- Pilot diameter: 5/8"
- Material: Billet aluminum
- Finish: Polished
- Engine: AMC, AMX and Jeep 258 inline six
- Part number: AMCL1WP-258
Additional Application Note: CVF lists this pulley for Jeep engines from 1972 to 1979 without power steering, without naming specific models. CVF notes the list is not complete and recommends confirming the engine, since many vehicles have had engine swaps.
FAQ
What engine does the AMCL1WP-258 fit?
It fits AMC, AMX and Jeep 258 six-cylinder engines, and CVF lists it for 1972 to 1979 Jeep engines without power steering.
How many grooves does it have?
It is a single-groove V-belt water pump pulley.
What are the dimensions?
It is 5.9 inches in diameter and 2.75 inches long, with a 4-bolt pattern on a 1.95 inch bolt circle and a 5/8 inch pilot.
