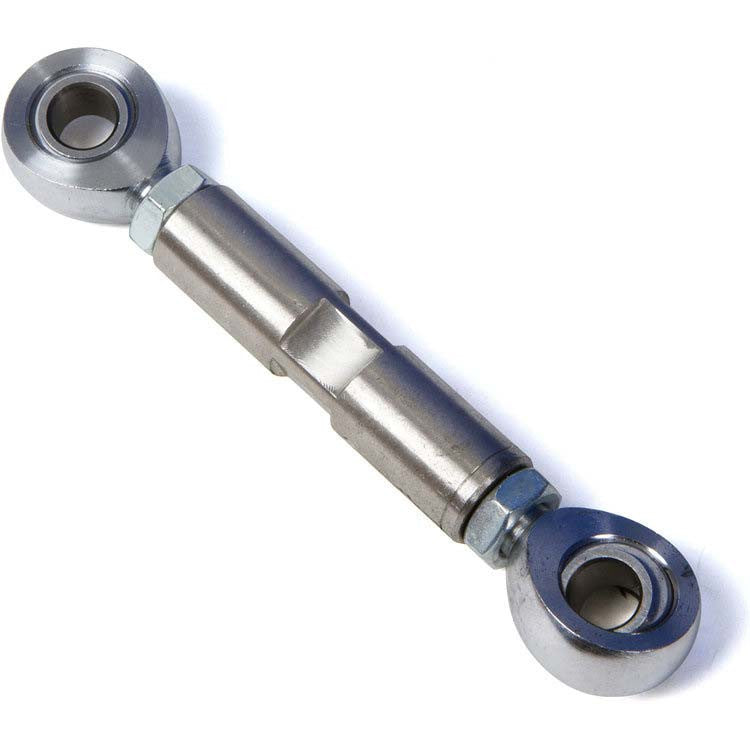

This CVF Racing adjusting rod is a universal turnbuckle-style link for building custom accessory brackets. It measures 10 in. center to center at its shortest and extends to 11.5 in., giving 1.5 in. of usable adjustment.
CVF uses these same rods in its own bracket kits. Each end has a 3/8 in. eyelet, the tensioning rod is stainless steel and the solid center section is 8.25 in. long.
Specifications:
- Minimum length (center to center): 10 in.
- Maximum length: 11.5 in.
- Usable stroke: 1.5 in.
- Solid center section: 8.25 in.
- Eyelet size: 3/8 in.
- Rod ends: Stainless steel chrome-moly, as described by CVF
- Tensioning rod: Stainless steel
- Part number: 235763-825-ASM
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is this adjusting rod used for?
It is a universal adjustable link for making custom brackets, such as tensioning an alternator or other accessory. CVF uses the same rods in its bracket kits.
What length range does it cover?
It adjusts from 10 in. to 11.5 in. measured between eyelet centers, for 1.5 in. of usable stroke.
What size are the eyelets?
Both rod ends have 3/8 in. eyelets.
Are other lengths available?
Yes. CVF sells this rod in several minimum lengths from 4.25 in. to 10 in. under separate part numbers.
