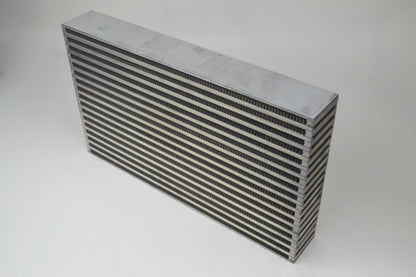

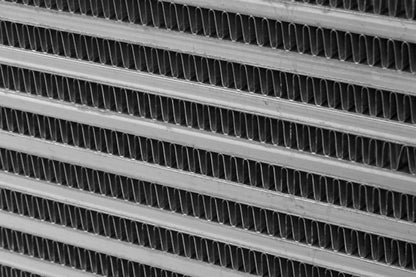

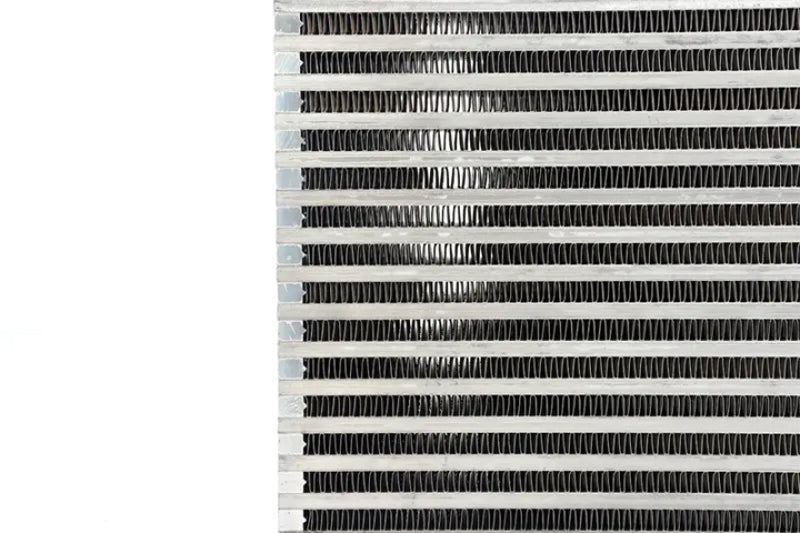

The CSF 8056 is a universal high-performance bar-and-plate intercooler core measuring 20 by 12 by 3 and rated to 700 horsepower. It uses an air-to-air cross-flow design with a multi-louvered high-precision staggered fin pattern on both the ambient and pressure sides. It is vacuum-brazed and pressure tested at 120 psi. This is a core only, for custom intercooler fabrication.
- Type: universal bar-and-plate intercooler core
- Dimensions: 20x12x3in
- Rating: 700 HP
- Flow: air-to-air cross-flow

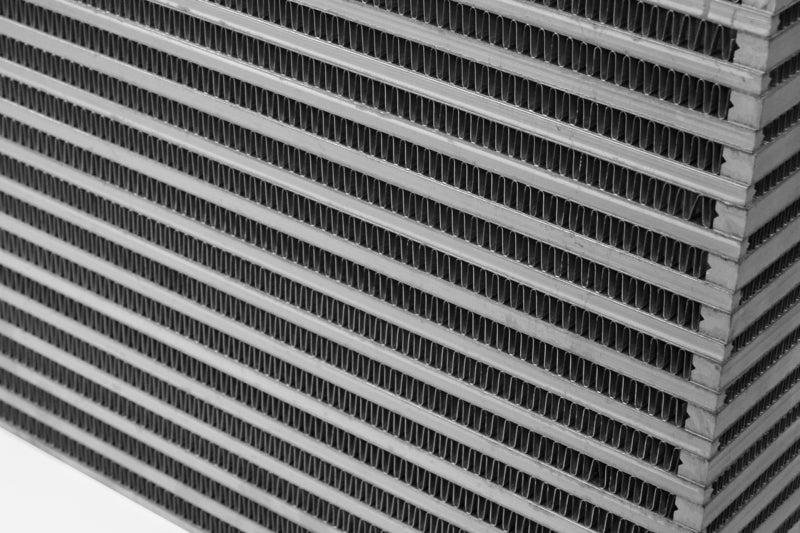

- Fins: multi-louvered, high-precision staggered
- Construction: vacuum-brazed, pressure tested at 120 psi

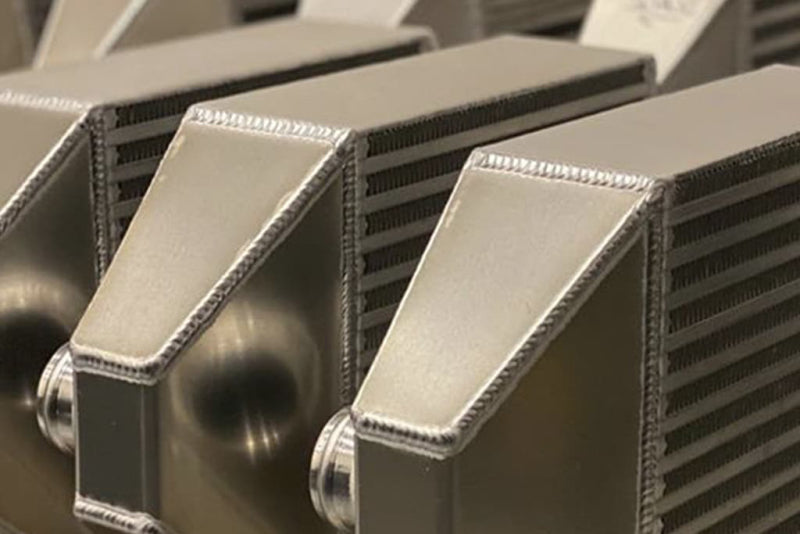

- Note: core only, for custom fabrication
- Part number: 8056
FAQ
What is the CSF 8056?
A universal air-to-air bar-and-plate intercooler core, 20x12x3in, rated to 700 horsepower.
What is the horsepower rating?
It is rated to 700 HP.
Is this a complete intercooler?
No. It is a core only, intended for custom fabrication.
