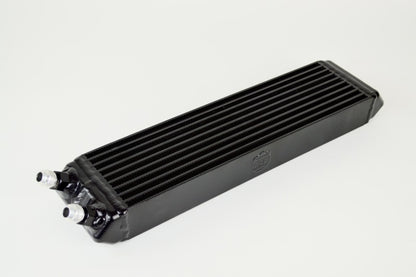

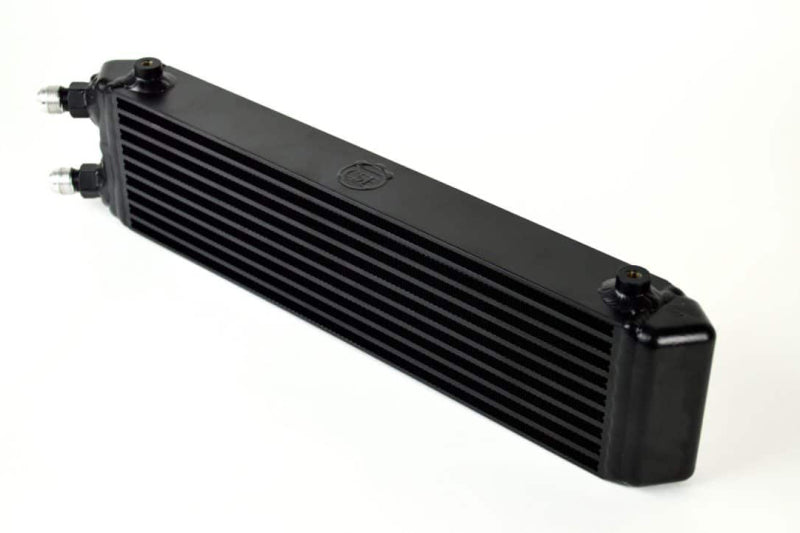

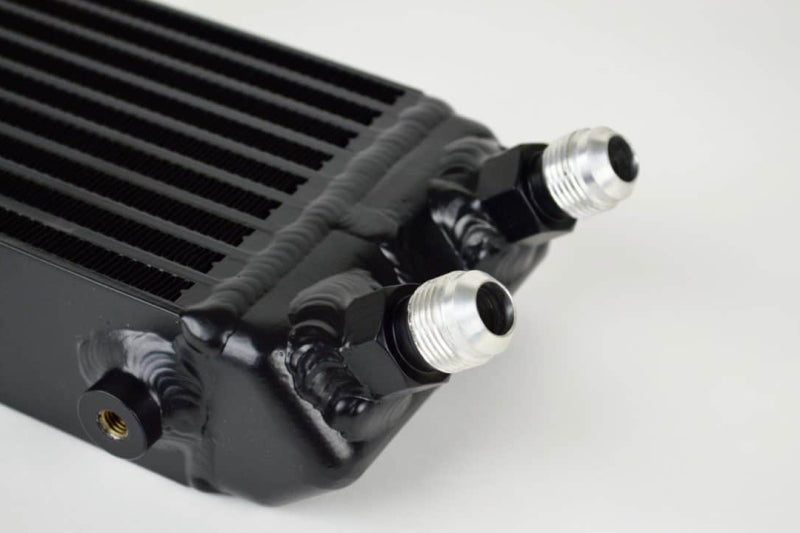

The CSF 8066 is a universal dual-pass oil cooler measuring 22.0 by 5.0 by 2.25 inches, built for both internal and external mounting. It uses a heavy-duty bar-and-plate 8-row turbulated core with a high-density multi-louvered fin pitch, finished in a thermal-rejecting semi-gloss black powder coat. It has -10 AN male inlet and outlet connections in a flip-able design that lets the inlet and outlet sit on either side, plus two M8 mounting bosses with steel helicoils, and it holds 0.68 liters. The bar-and-plate build stands up to high vibration and debris.
- Type: universal dual-pass oil cooler (internal or external mount)

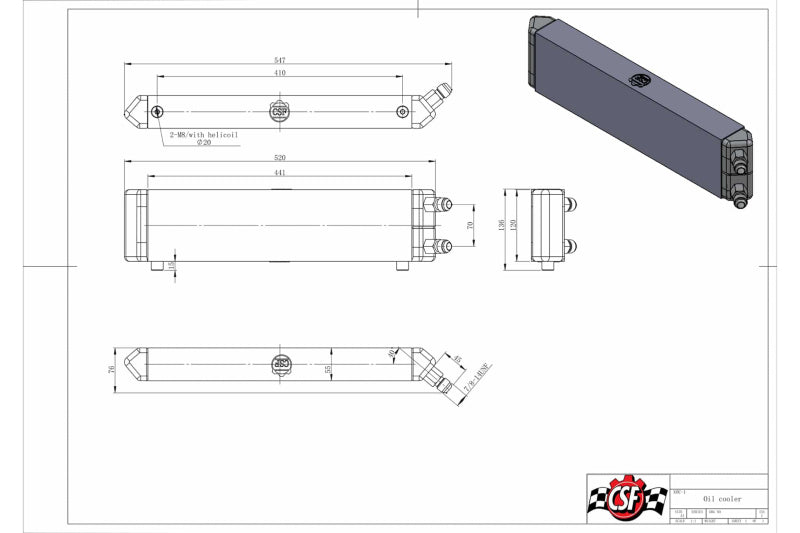

- Size: 22.0 in L x 5.0 in H x 2.25 in W
- Core: heavy-duty 8-row bar-and-plate, turbulated, high-density multi-louvered fins

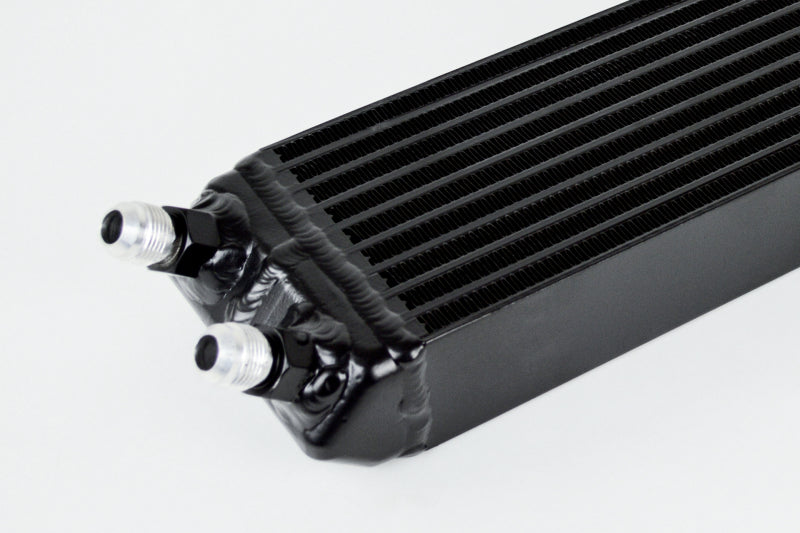

- Connections: -10 AN male, flip-able inlet/outlet
- Mounting: two M8 bosses with steel helicoils
- Capacity: 0.68 L
- Finish: semi-gloss black powder coat
- Part number: 8066
FAQ
What is the CSF 8066?
A universal dual-pass oil cooler, 22 by 5 by 2.25 inches, for internal or external mounting.
What connections does it use?
-10 AN male inlet and outlet, in a flip-able design that lets them sit on either side.
Is it a bar-and-plate cooler?
Yes. It uses a heavy-duty 8-row bar-and-plate turbulated core.
Can it be mounted externally?
Yes. The bar-and-plate build is ideal for external placement and resists vibration and debris.
