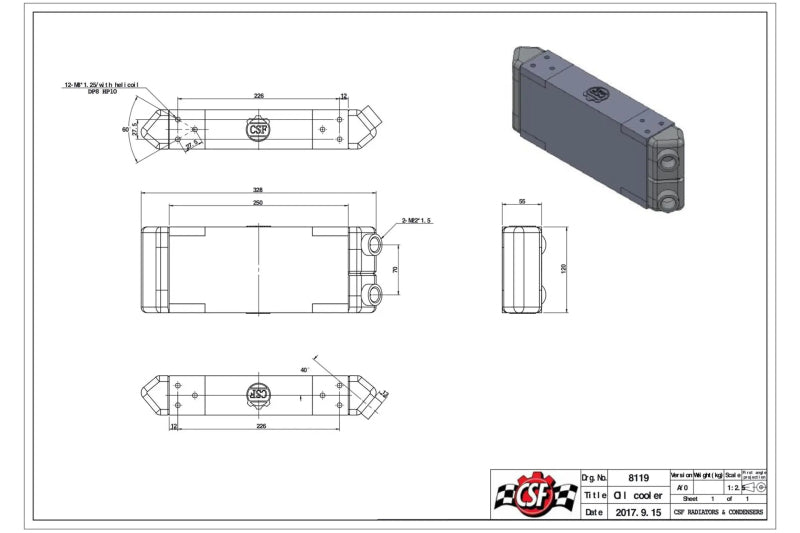

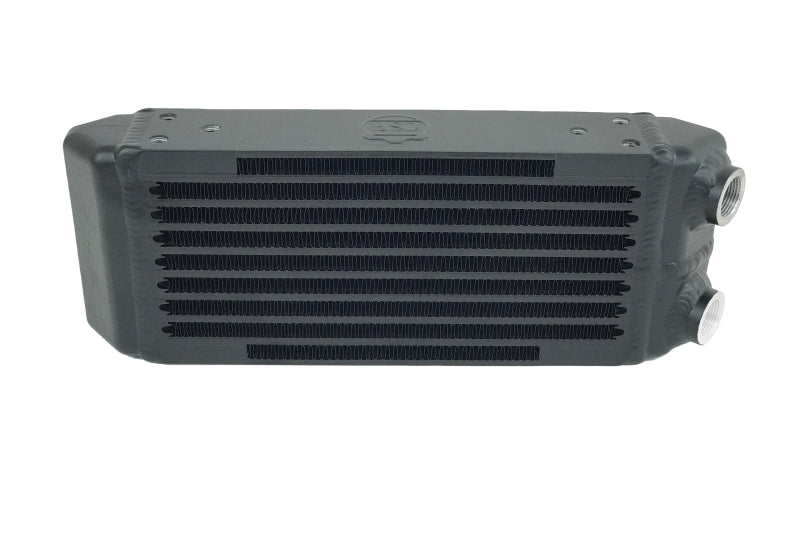

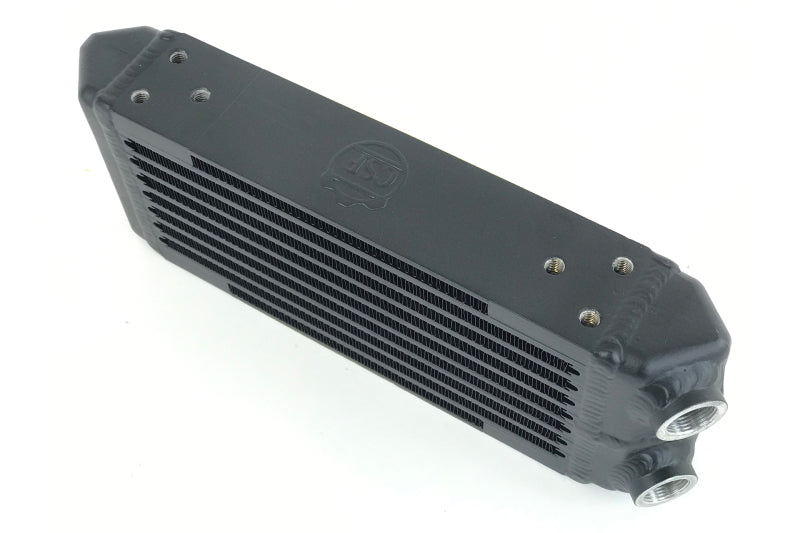

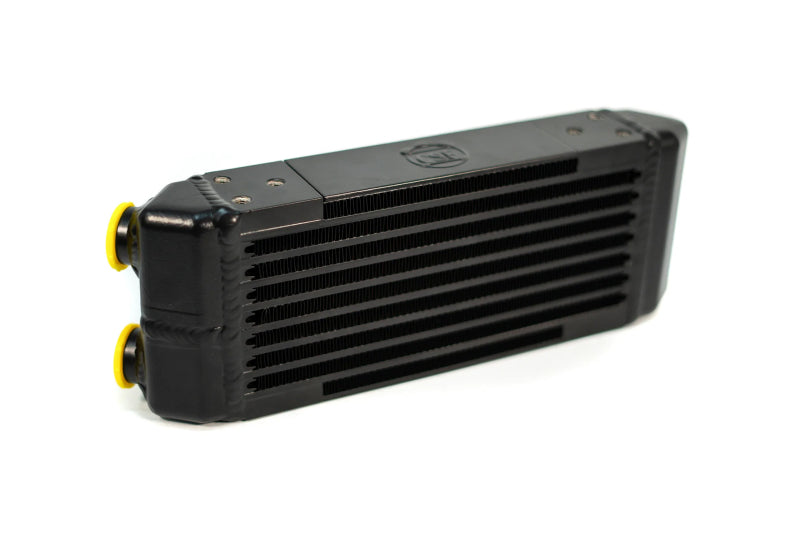

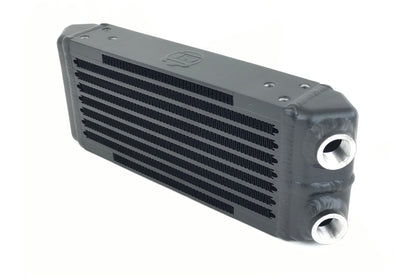

The CSF 8119 is a compact universal dual-pass oil cooler measuring 13 by 4.75 by 2.16 inches, built to mount in tight spaces. It uses a high-pressure bar-and-plate 8-row core and holds 0.53 liters, with M22 x 1.5 female connections on the same side set at a 40-degree angle. It is more robust than a conventional plate-type cooler, withstands a higher peak burst rate, and resists vibration and debris, so it can go in areas where debris would normally be a problem.
- Type: universal dual-pass oil cooler
- Size: 13 in L x 4.75 in H x 2.16 in W
- Core: high-pressure 8-row bar-and-plate
- Connections: M22 x 1.5 female, same side, 40-degree angle
- Capacity: 0.53 L
- Durability: high burst rate, vibration and debris resistant
- Part number: 8119
FAQ
What is the CSF 8119?
A compact universal dual-pass oil cooler, 13 by 4.75 by 2.16 inches, for tight mounting spaces.
What connections does it use?
M22 x 1.5 female connections on the same side, set at a 40-degree angle.
How many rows is the core?
An 8-row high-pressure bar-and-plate core.

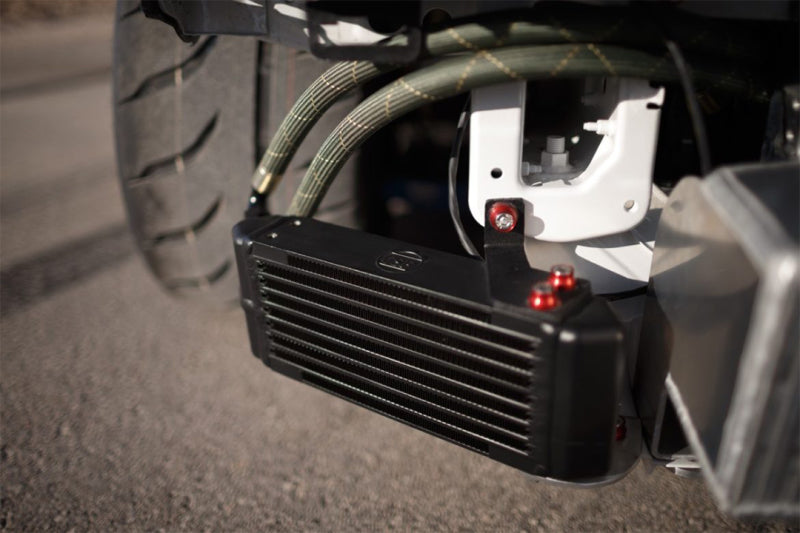

Can it be mounted in a high-debris area?
Yes. It resists vibration and debris and withstands a higher peak burst rate than plate-type coolers.
