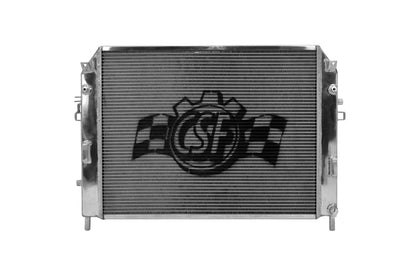

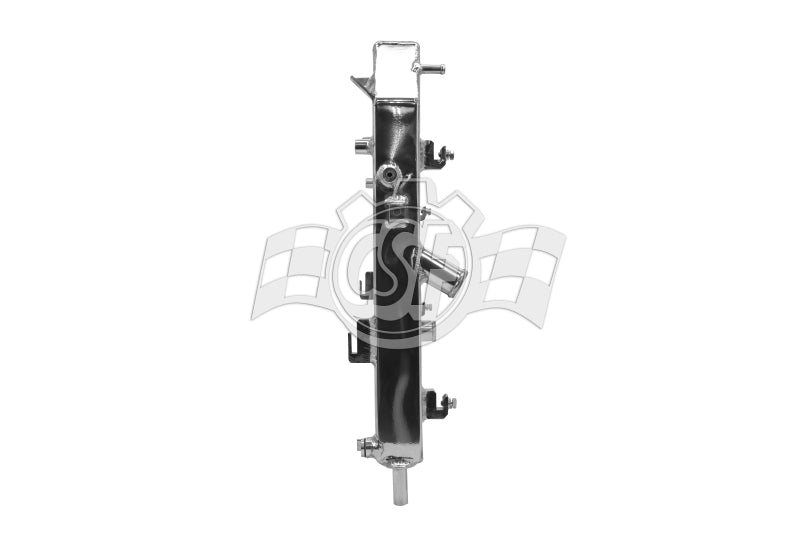

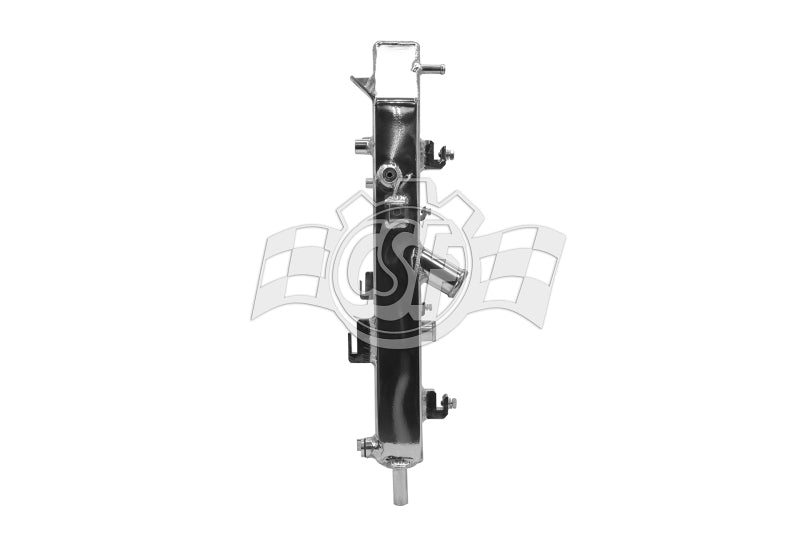

The CSF 7015 is an all-aluminum high-performance radiator for the 2006-2015 Mazda MX-5 Miata (NC) with the 2.0L engine. It uses a 2-row 42mm dual core with CSF's B-Tube Technology and multi-louvered 6.5mm fins for a dual liquid laminar flow. It is a drop-in fit with CNC-machined quick-connect connections that accept the OEM hoses, an all-aluminum race-style drain plug, and a satin finish, and it works with the OEM brackets, AC condenser, and fan shroud.
- Type: all-aluminum performance radiator

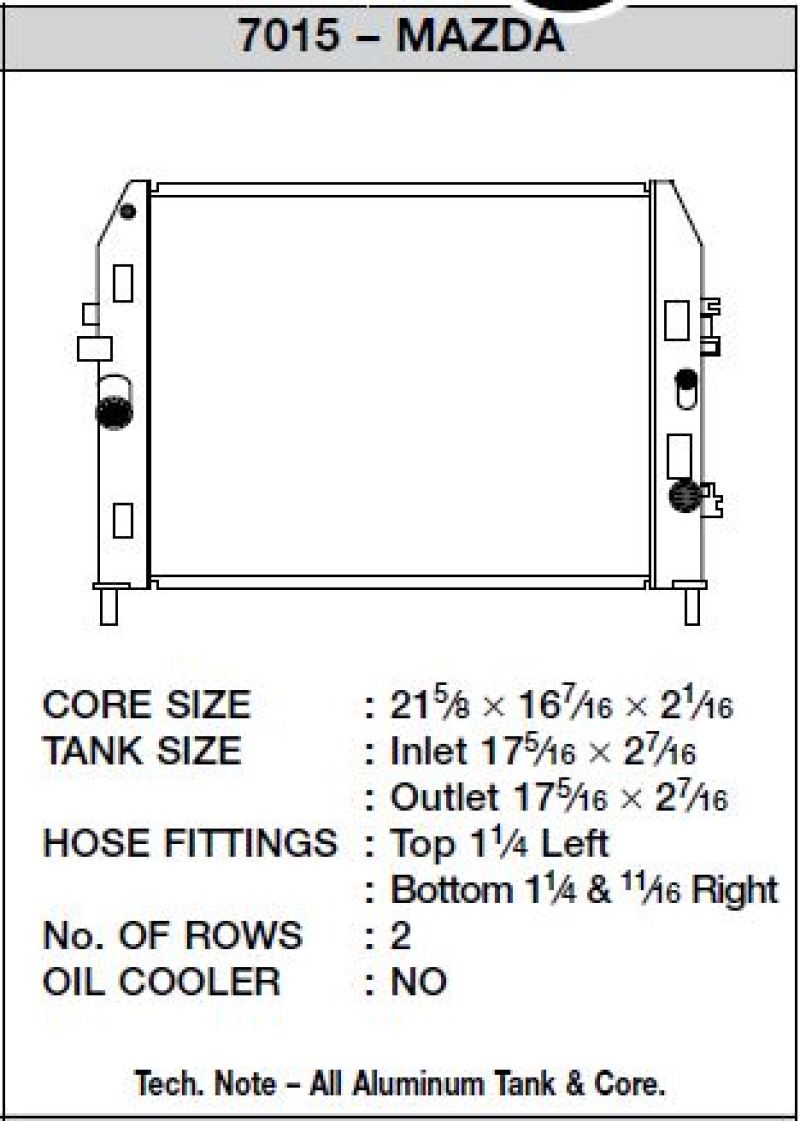

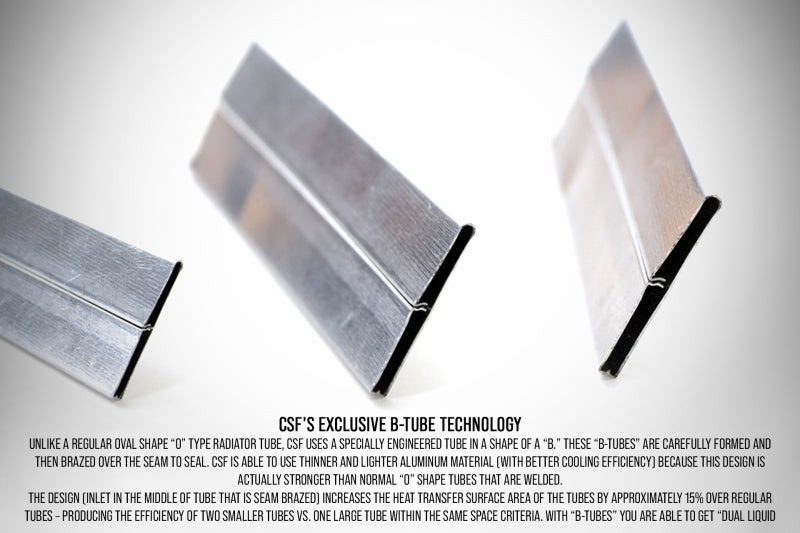

- Core: 2-row, 42mm dual core, B-Tube Technology

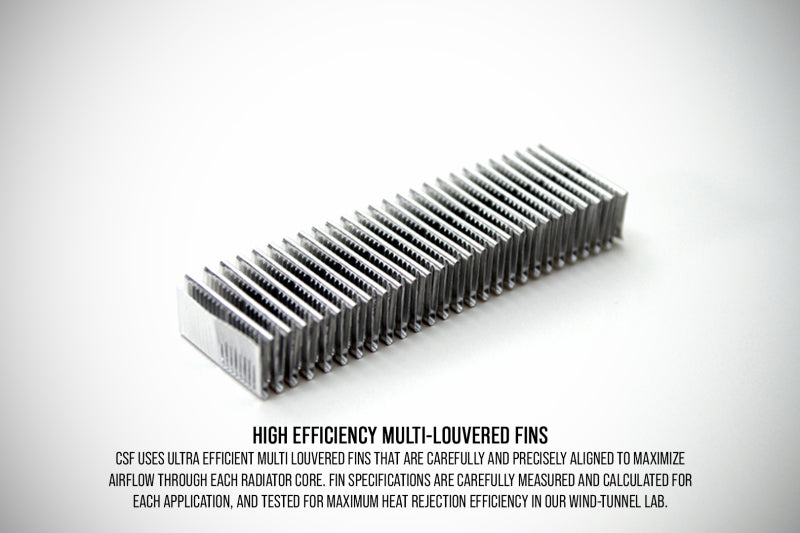

- Fins: multi-louvered, 6.5mm fin height
- Engine: 2.0L
- Fittings: CNC-machined quick-connect, accepts OEM hoses
- Finish: satin
- Part number: 7015
Vehicle Applications
Direct fit on the following (2.0L):
- 2006 Mazda MX-5 Miata (NC)
- 2007 Mazda MX-5 Miata (NC)
- 2008 Mazda MX-5 Miata (NC)
- 2009 Mazda MX-5 Miata (NC)
- 2010 Mazda MX-5 Miata (NC)
- 2011 Mazda MX-5 Miata (NC)
- 2012 Mazda MX-5 Miata (NC)
- 2013 Mazda MX-5 Miata (NC)
- 2014 Mazda MX-5 Miata (NC)
- 2015 Mazda MX-5 Miata (NC)
FAQ
What vehicles does the CSF 7015 fit?
The 2006-2015 Mazda MX-5 Miata (NC) with the 2.0L engine.
How many rows is the core?
A 2-row 42mm dual core with CSF's B-Tube Technology.
What finish does it have?
A satin finish.
Is it a drop-in fit?
Yes. It keeps the OEM hoses, brackets, AC condenser, and fan shroud.
