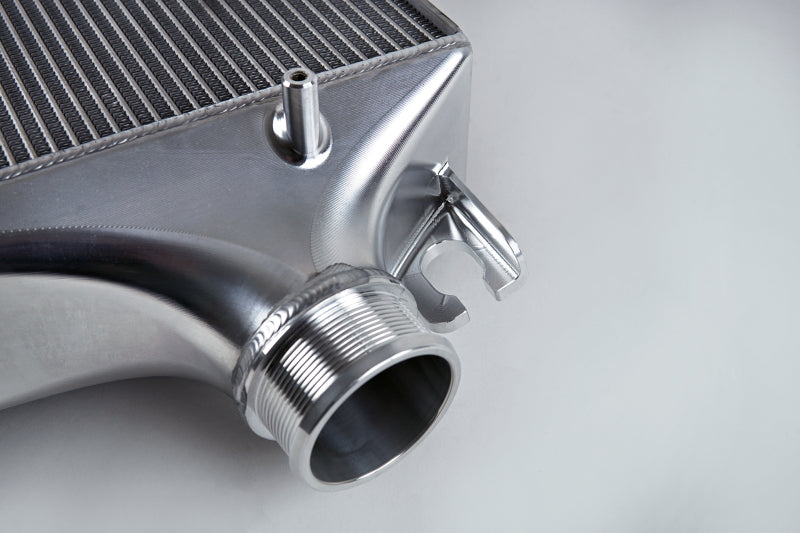

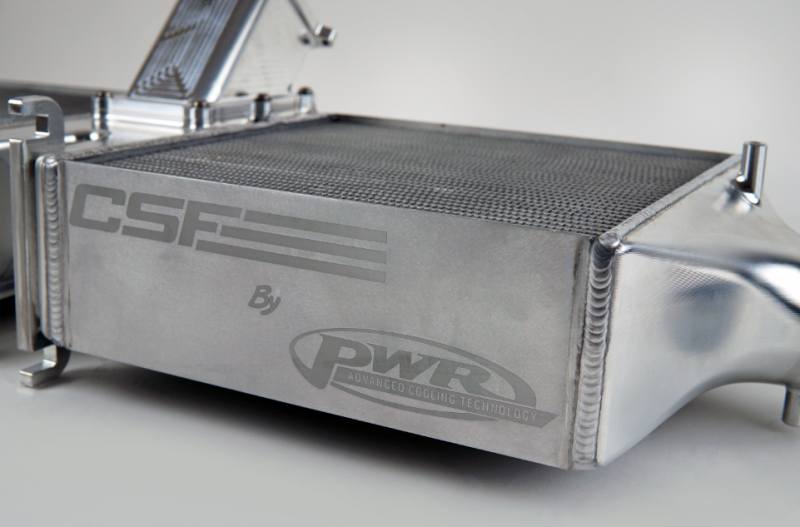

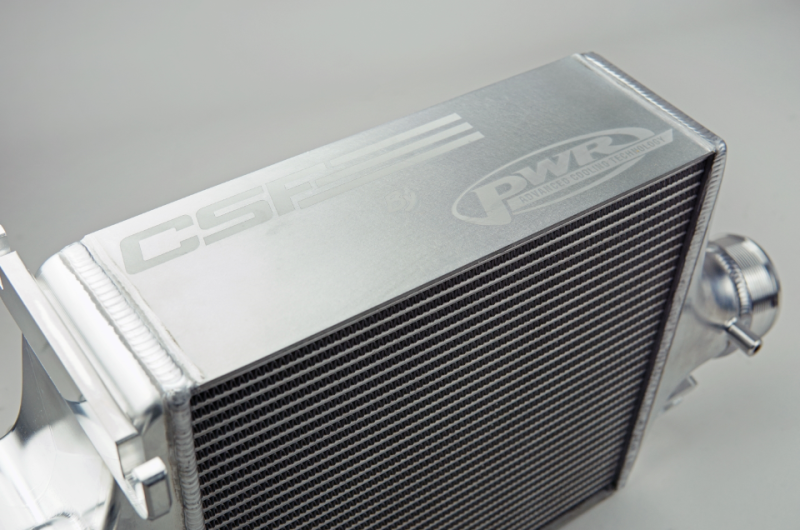

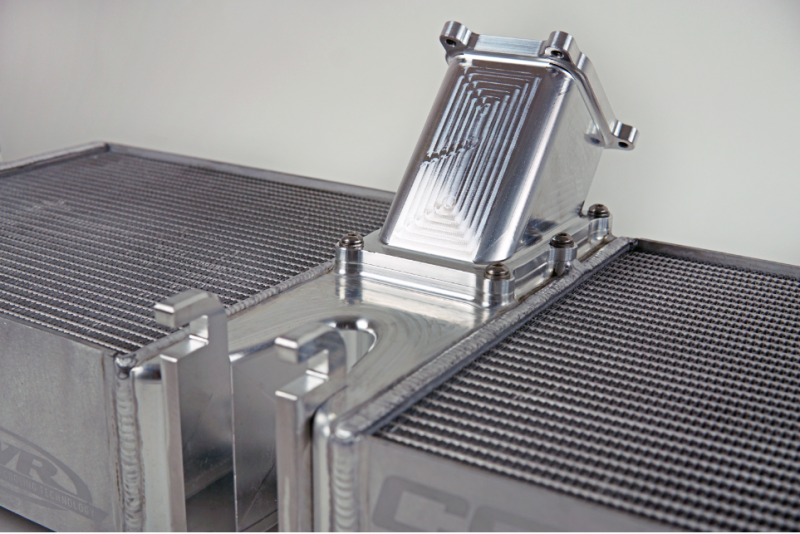

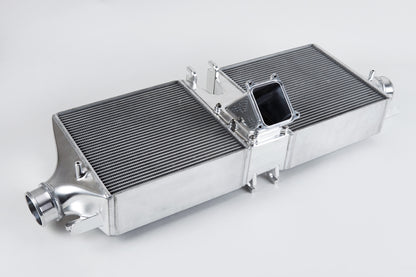

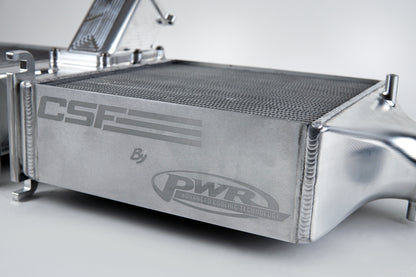

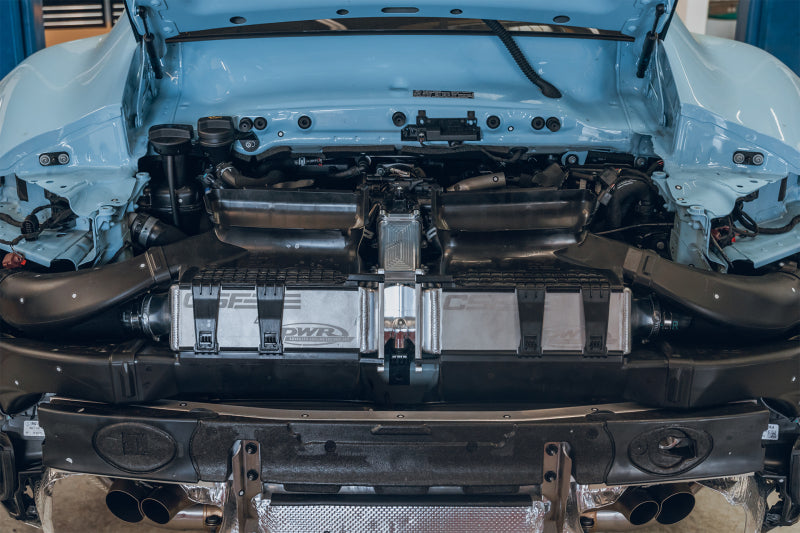

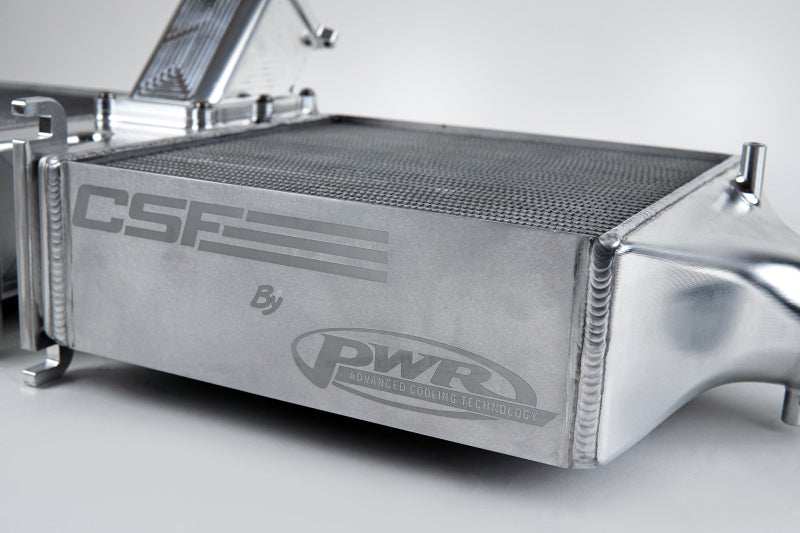

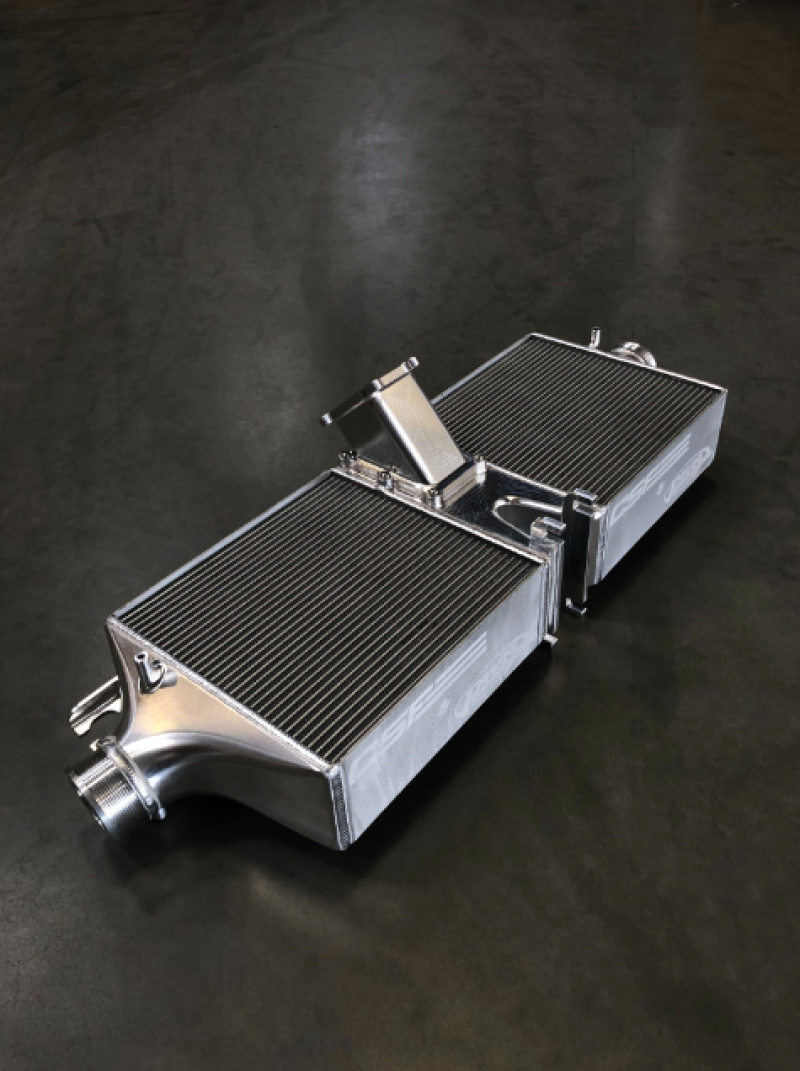

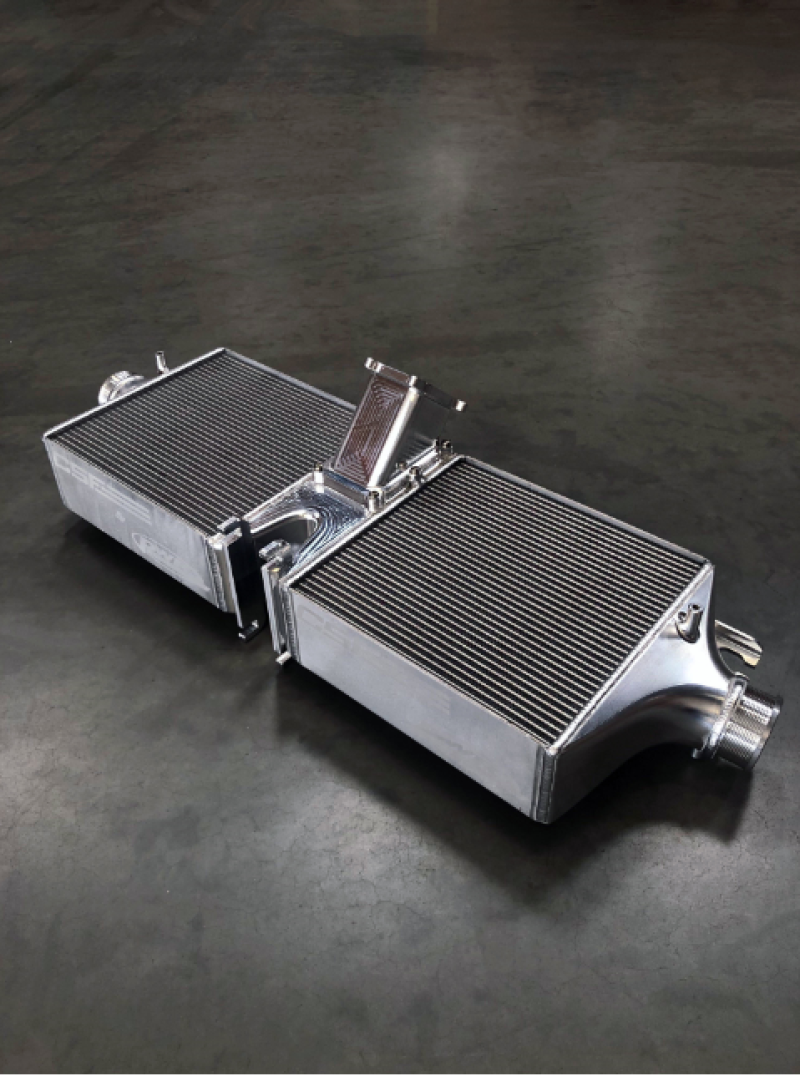

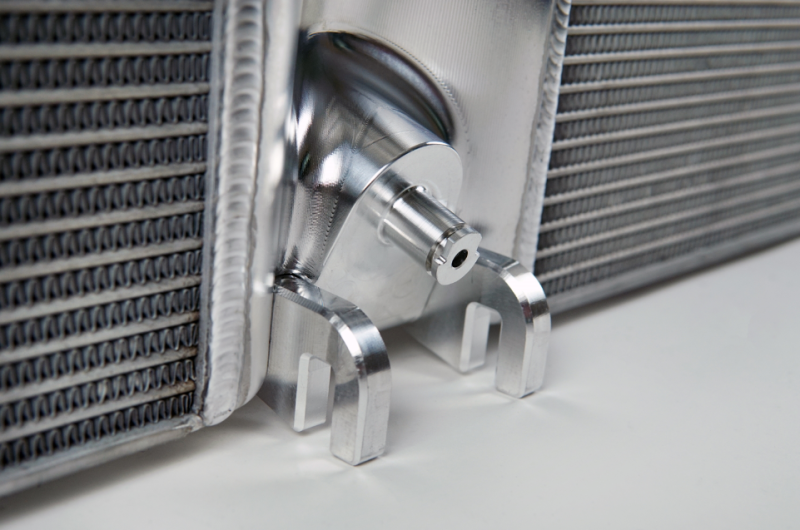

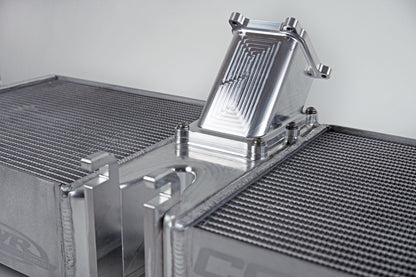

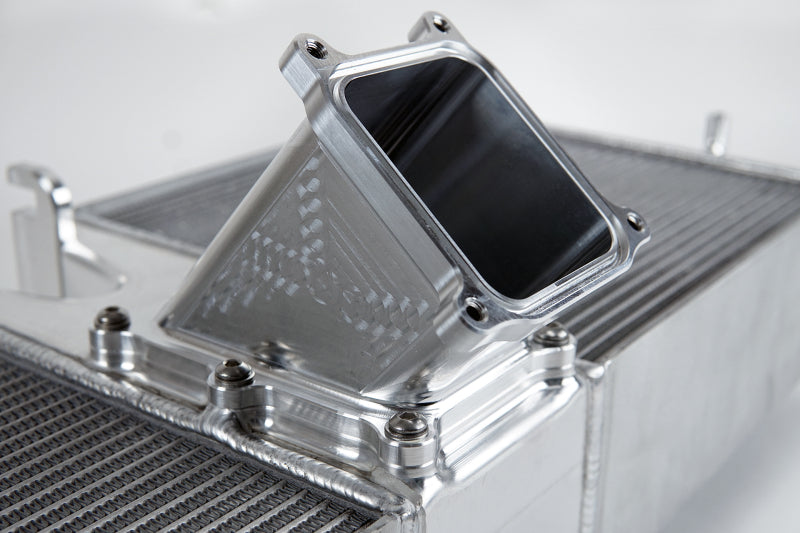

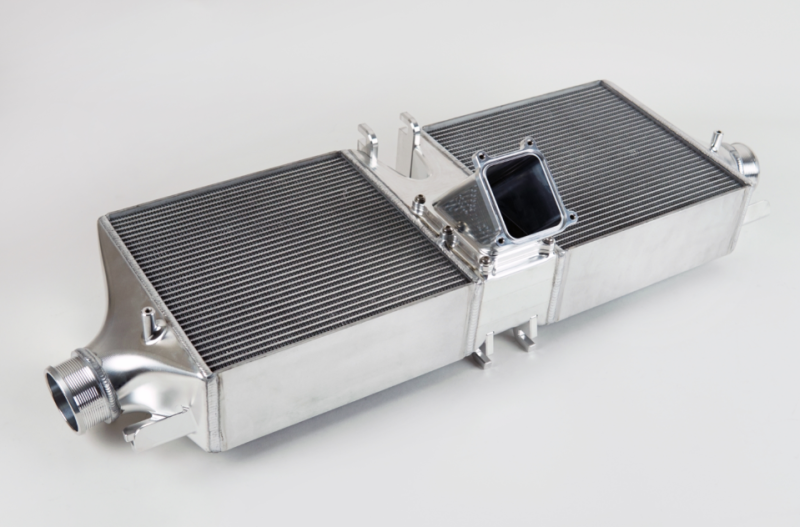

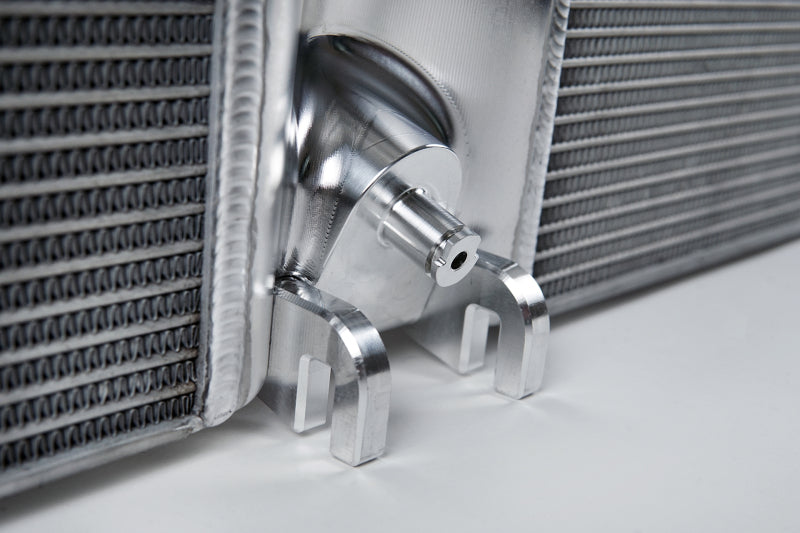

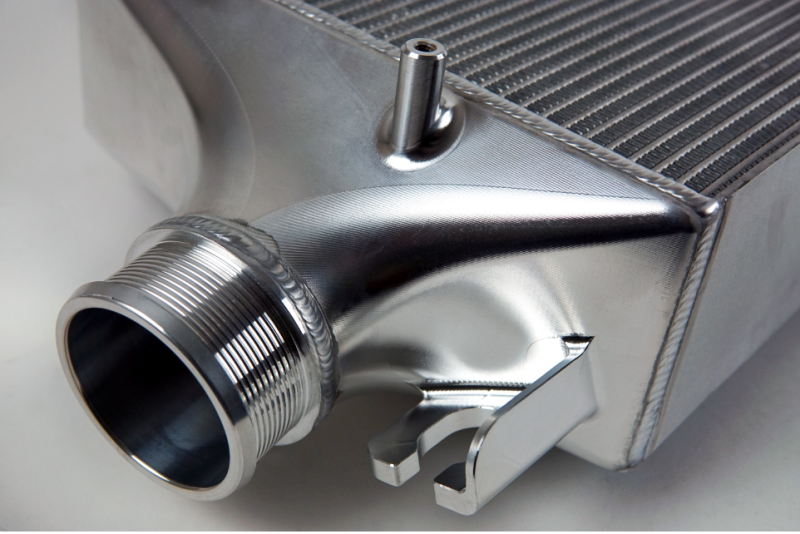

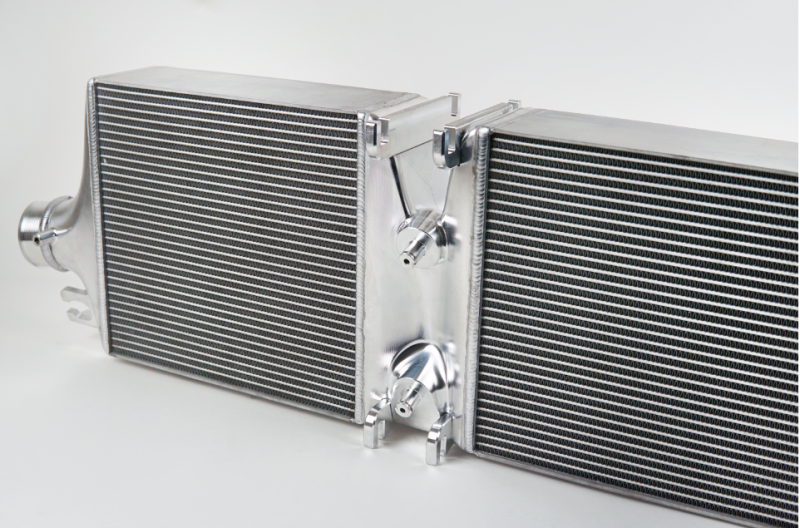

The CSF 8188 is a high-performance intercooler system for the 2021-2025 Porsche 992 911 Turbo and Turbo S (3.7L), the Sport Classic and Turbo 50 Years, and the 2025-2026 992.2 Carrera models (3.0L). It uses Formula-1-grade 2-row cores with rolled tubes and inner fins, carrying 33 tubes versus the OEM 17 and 34 cooling-fin rows versus 18, with 3mm rolled tube height and 4.85mm fins. Construction is 100 percent TIG-welded with CNC-machined billet aluminum end tanks in place of the OEM plastic, and each system weighs about 20 lbs and adds three 1/8 NPT ports for methanol injection, boost monitoring, or nitrous. It is a true plug-and-play drop-in fit with an integrated Y-pipe to the throttle body, using all factory mounting points and ducting.
- Type: high-performance intercooler system (with integrated Y-pipe)

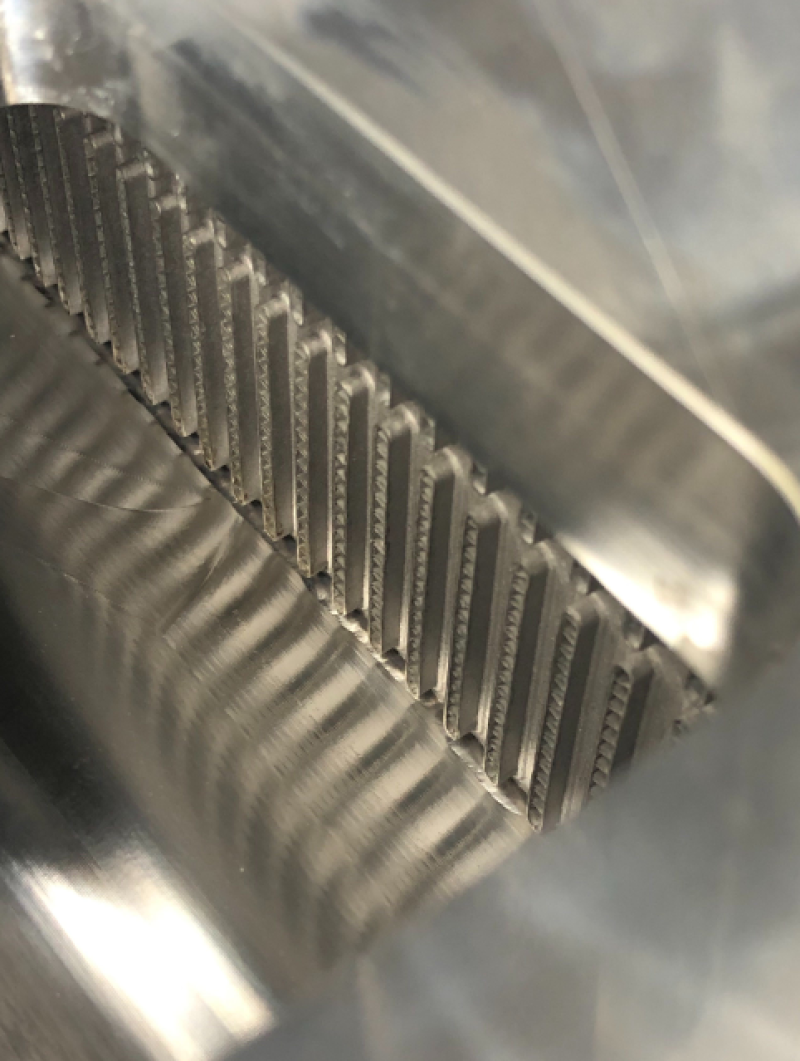

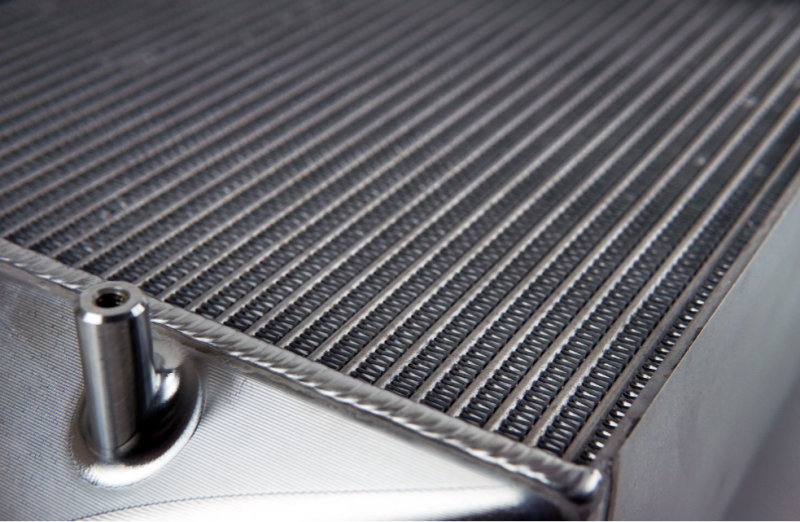

- Core: F1-grade 2-row, rolled tubes with inner fins
- Tubes/fins: 33 tubes (OEM 17), 34 fin rows (OEM 18), 3mm tubes, 4.85mm fins

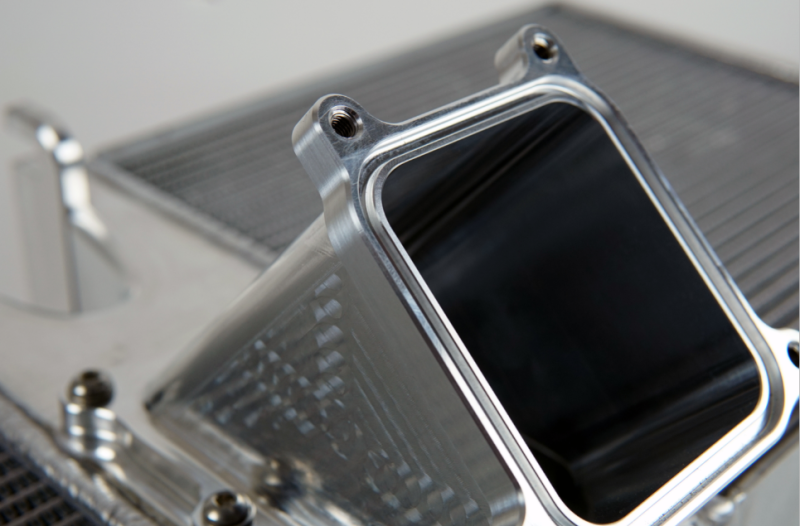

- End tanks: CNC-machined billet aluminum (OEM plastic), 100 percent TIG-welded
- Engines: 3.7L twin-turbo H6 (Turbo/Turbo S), 3.0L turbo H6 (992.2 Carrera)

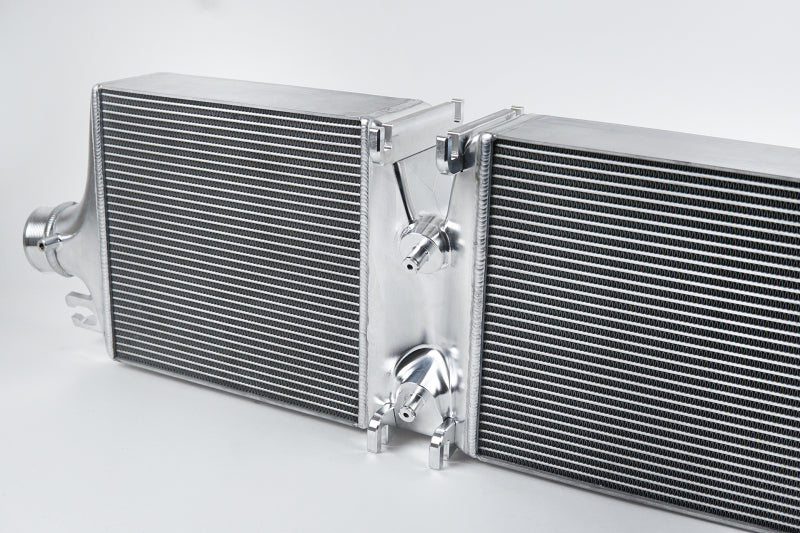

- Ports: three 1/8 NPT (methanol/boost/nitrous)
- Fitment: true plug-and-play drop-in, factory mounts and ducting
- Part number: 8188
Vehicle Applications
Direct fit on the following:
- 2021 Porsche 911 Turbo (992, 3.7L)
- 2022 Porsche 911 Turbo (992, 3.7L)
- 2023 Porsche 911 Turbo (992, 3.7L)
- 2024 Porsche 911 Turbo (992, 3.7L)
- 2025 Porsche 911 Turbo (992, 3.7L)
- 2021 Porsche 911 Turbo S (992, 3.7L)
- 2022 Porsche 911 Turbo S (992, 3.7L)
- 2023 Porsche 911 Turbo S (992, 3.7L)
- 2024 Porsche 911 Turbo S (992, 3.7L)
- 2025 Porsche 911 Turbo S (992, 3.7L)
- 2023 Porsche 911 Sport Classic (992, 3.7L)
- 2024 Porsche 911 Sport Classic (992, 3.7L)
- 2025 Porsche 911 Turbo 50 Years (992, 3.7L)
- 2025 Porsche 911 Carrera (992.2, 3.0L)
- 2026 Porsche 911 Carrera (992.2, 3.0L)
- 2025 Porsche 911 Carrera T (992.2, 3.0L)
- 2026 Porsche 911 Carrera T (992.2, 3.0L)
- 2025 Porsche 911 Carrera S (992.2, 3.0L)
- 2026 Porsche 911 Carrera S (992.2, 3.0L)
- 2025 Porsche 911 Carrera 4S (992.2, 3.0L)
- 2026 Porsche 911 Carrera 4S (992.2, 3.0L)
- 2025 Porsche 911 Targa 4 (992.2, 3.0L)
- 2026 Porsche 911 Targa 4 (992.2, 3.0L)
- 2025 Porsche 911 Targa 4S (992.2, 3.0L)
- 2026 Porsche 911 Targa 4S (992.2, 3.0L)
FAQ
What vehicles does the CSF 8188 fit?
The 2021-2025 Porsche 992 911 Turbo/Turbo S (3.7L), Sport Classic and Turbo 50 Years, and 2025-2026 992.2 Carrera models (3.0L).
How much larger are the cores?
33 tubes versus the OEM 17 and 34 fin rows versus 18, with F1-grade rolled tubes.
What are the end tanks made of?
CNC-machined billet aluminum, versus the OEM plastic, 100 percent TIG-welded.
Is it a drop-in fit?
Yes. It is a true plug-and-play fit using all factory mounting points and ducting.
