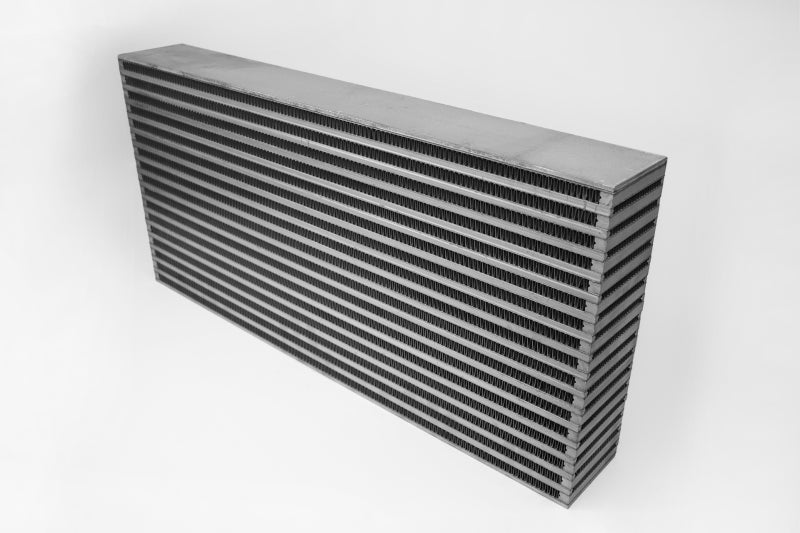

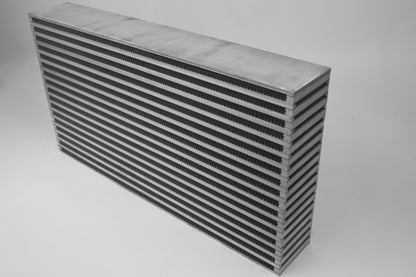

The CSF 8047 is a universal bar-and-plate intercooler core measuring 22 by 12 by 3.5 inches, rated for up to 850 wheel horsepower. It uses a horizontal-flow design with a multi-louvered staggered fin pattern on both sides, hand-built using jigs and fixtures in a clean room and batch-brazed in CSF's digital vacuum brazing ovens. Every core is individually pressure tested at 120 psi and left with a clean surface suitable for welding, making it a starting point for a custom high-performance intercooler build.
- Type: universal bar-and-plate intercooler core
- Core size: 22 in x 12 in x 3.5 in (560mm x 300mm x 90mm)

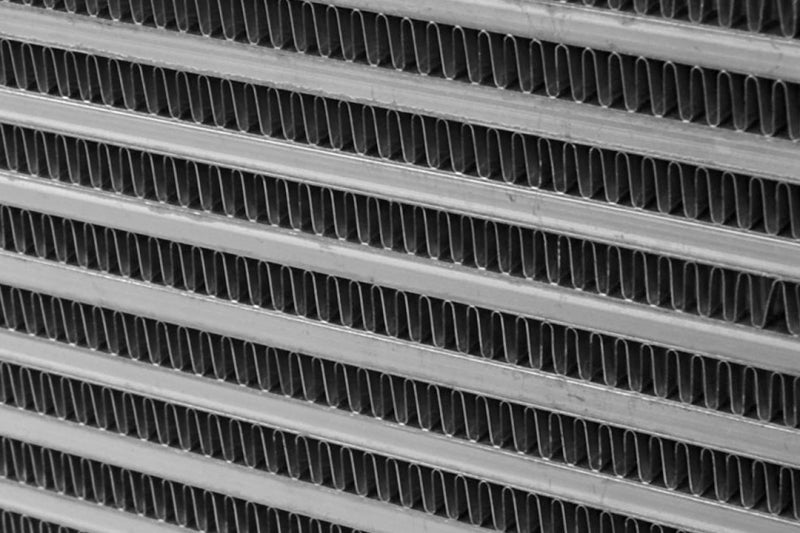

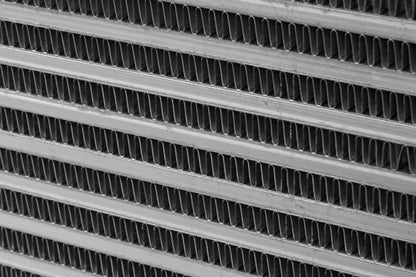

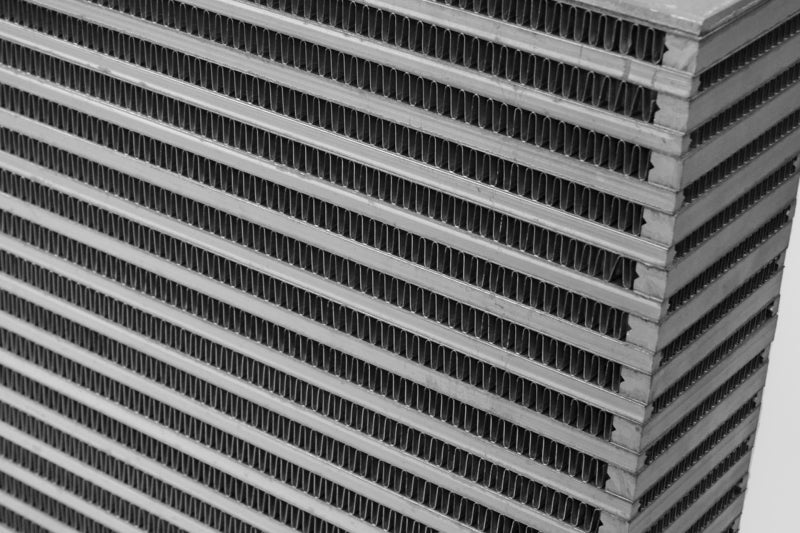

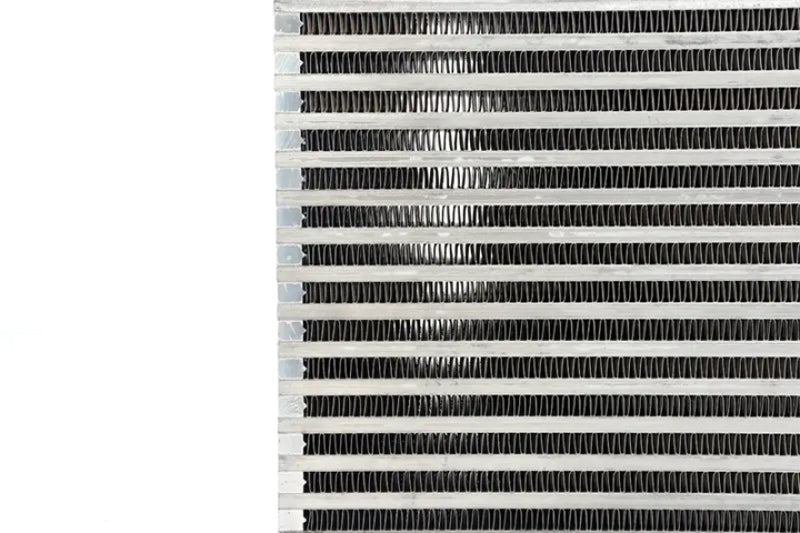

- Design: horizontal flow, multi-louvered staggered fins both sides
- Rating: up to 850 wheel horsepower
- Construction: vacuum-brazed, hand-built in a clean room
- Testing: individually pressure tested at 120 psi
- Part number: 8047
FAQ
What is the CSF 8047?
A universal bar-and-plate intercooler core, 22 by 12 by 3.5 inches, for custom high-performance builds.
How much power does it support?
It is rated for up to 850 wheel horsepower.
Is it a complete intercooler?
No. It is a core for building a custom intercooler, not a bolt-on kit.
How is it tested?
Every core is individually pressure tested at 120 psi.
