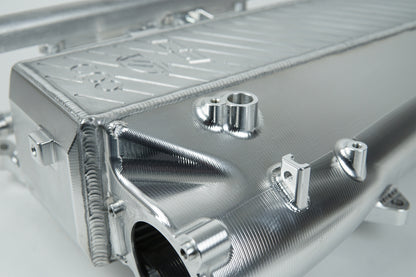

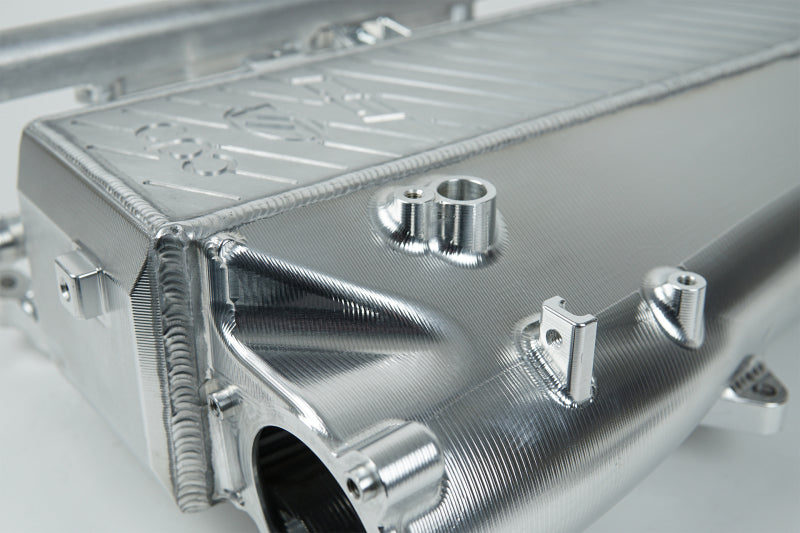

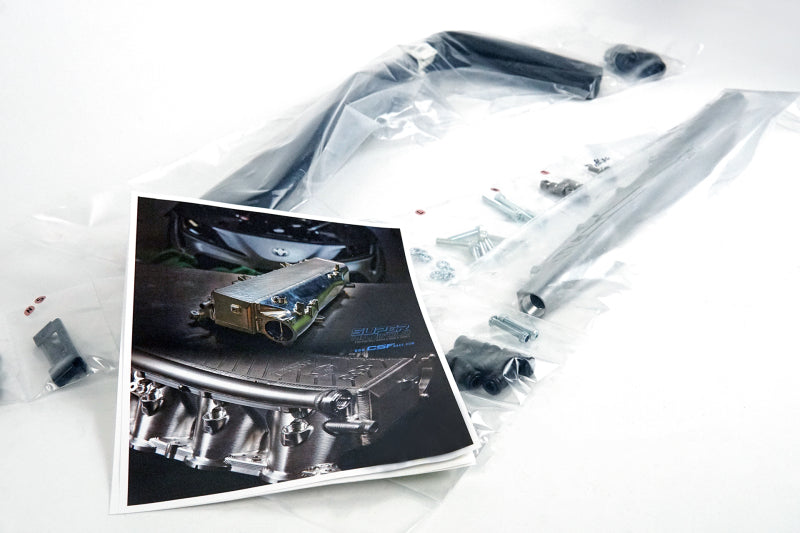

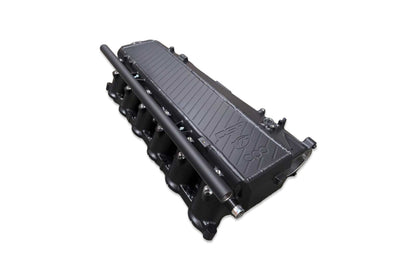

The CSF 8200B is the thermal dispersion black cerakote version of CSF's billet aluminum charge-air cooler manifold that replaces the factory intake manifold on B58 3.0L turbocharged Toyota Supra and BMW cars. It integrates a high-performance bar-and-plate air-to-water intercooler core with double the capacity of the OEM unit (12 rows versus 6), is 100 percent TIG-welded, and is CNC-machined from billet. It has significantly lower pressure drop than the factory manifold, an integrated air divider, an included fuel rail for top-feed port injection, individual 1/8 inch NPT ports on each cylinder runner for nitrous or methanol, a vacuum sensor pad, and easy oil filter access. It ships with a complete hardware kit and installation documentation.
- Type: billet aluminum charge-air cooler manifold (air-to-water)

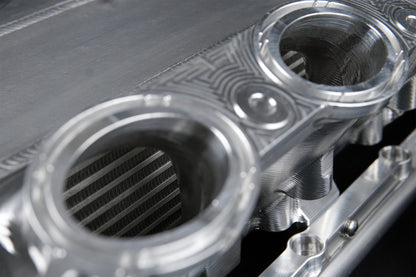

- Core: bar-and-plate A2W, 12-row (double the OEM 6-row)
- Construction: CNC-machined billet, 100 percent TIG-welded
- Engine: B58 3.0L turbo inline-6

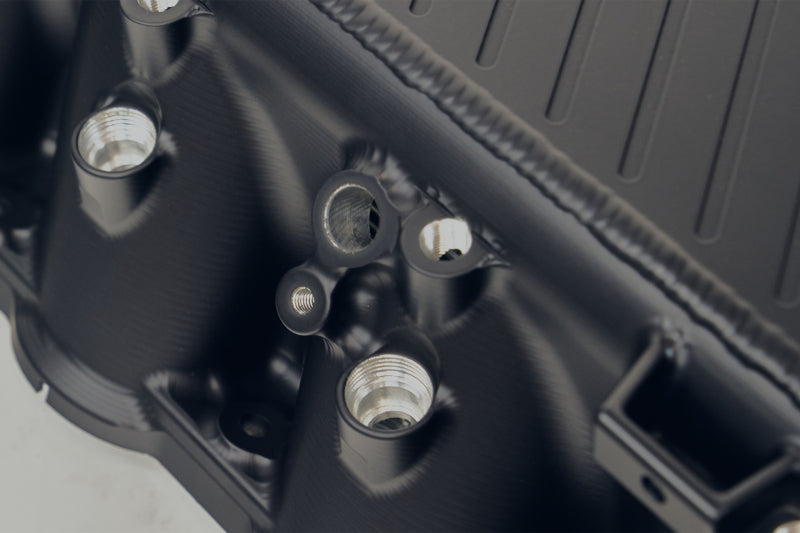

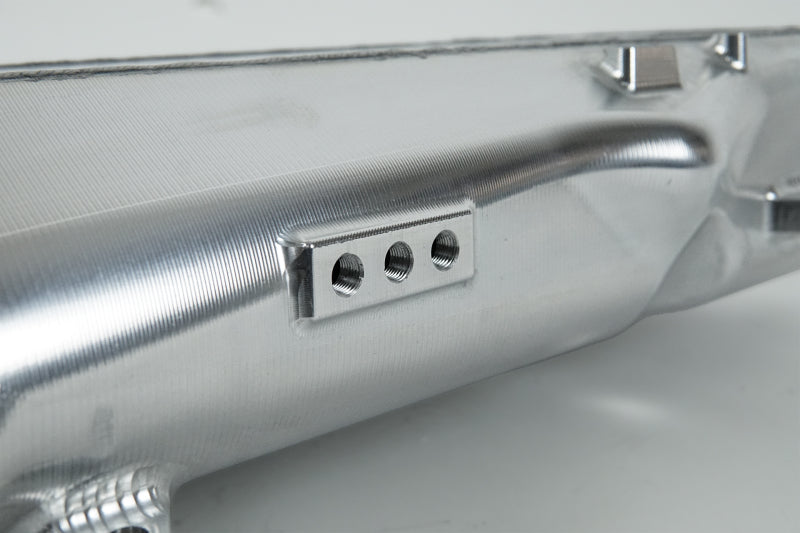

- Features: top-feed fuel rail, per-cylinder 1/8in NPT nitrous/meth ports, air divider, vacuum sensor pad
- Finish: thermal dispersion black cerakote
- Base part: 8200 (raw billet)
- Part number: 8200B
Vehicle Applications
Fits B58 3.0L turbo cars, including the following:
- 2020 Toyota GR Supra
- 2021 Toyota GR Supra
- 2022 Toyota GR Supra
- 2023 Toyota GR Supra
- 2024 Toyota GR Supra
- 2025 Toyota GR Supra
- BMW 540i, 740i, and 840i (B58)
- BMW M240i, M340i, and M440i (B58)
- BMW X3, X4, X5, X6, and X7 (B58)
- BMW Z4 (B58)
- INEOS Grenadier (2024-2026)
FAQ
What is the CSF 8200B?
The thermal dispersion black cerakote version of CSF's B58 billet charge-air cooler manifold for Toyota Supra and BMW.
How is it different from the 8200?
The 8200B is the same manifold in a thermal dispersion black cerakote finish; the 8200 is raw billet.
How much bigger is the core than OEM?
It uses a 12-row air-to-water core, double the capacity of the OEM 6-row unit.
Does it support port injection and nitrous?
Yes. It includes a top-feed fuel rail and individual 1/8 inch NPT ports for nitrous or methanol.
