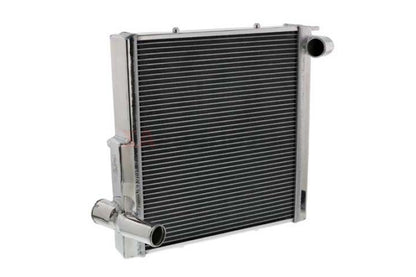

The CSF 7067 is an all-aluminum high-performance radiator for the right side of the 2012-2016 Porsche 991.1 911 Carrera (including Carrera S, 4, 4S, GTS, and Targa 4 variants) and the 2013-2016 981 Boxster and Cayman, including the 2016 Cayman GT4, with the 2.7L, 3.4L, or 3.8L flat-six. It uses a 2-row 42mm core with CSF's B-Tube Technology and multi-louvered 6.5mm fins. It is 100 percent TIG-welded all-aluminum with a smooth satin finish, and it is a drop-in fit that accepts the OEM AC condenser and fan shroud. The left-side radiator is CSF 7066.
- Type: all-aluminum performance radiator

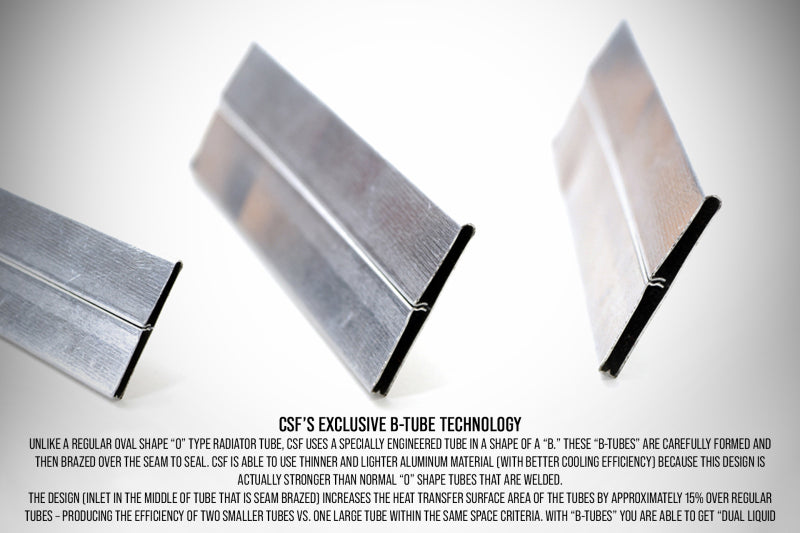

- Core: 2-row, 42mm, B-Tube Technology

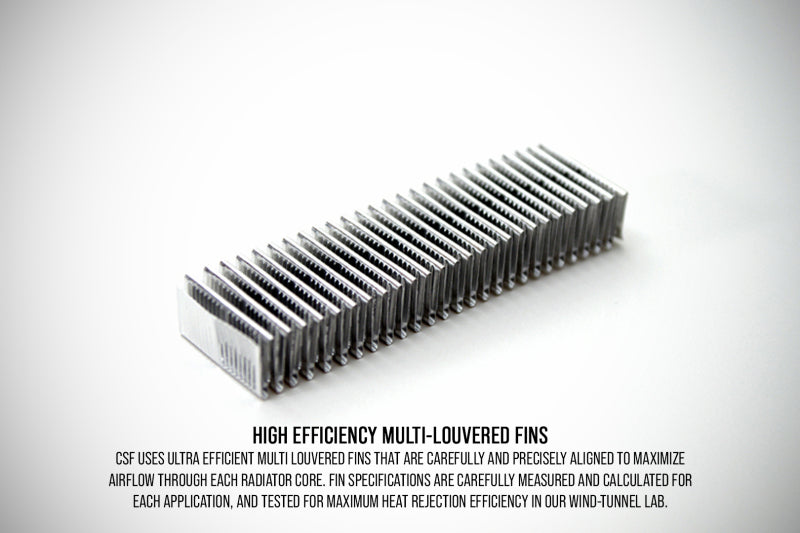

- Fins: multi-louvered, 6.5mm fin height

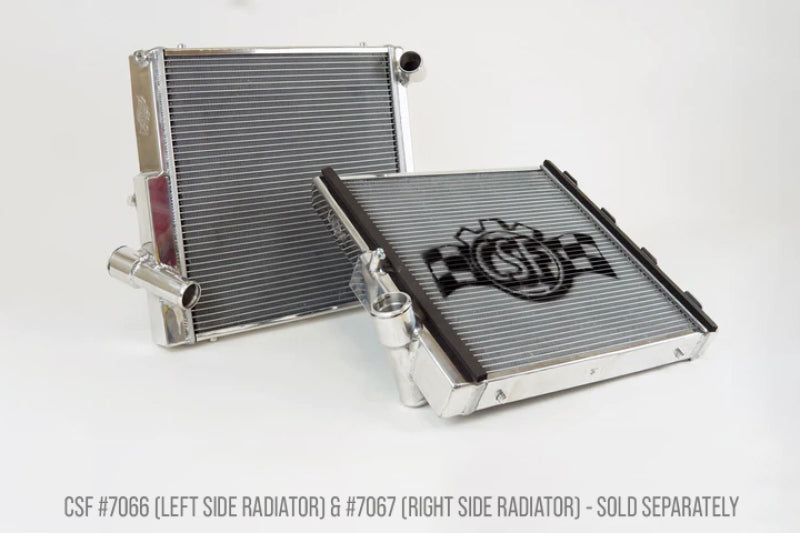

- Position: right side (left side is CSF 7066)
- Engines: 2.7L / 3.4L / 3.8L H6
- Construction: 100 percent TIG-welded aluminum
- Finish: smooth satin
- Fitment: drop-in, no modifications
- Part number: 7067
Vehicle Applications
Direct fit on the following (right side):
- 2012 Porsche 911 Carrera (991.1)
- 2013 Porsche 911 Carrera (991.1)
- 2014 Porsche 911 Carrera (991.1)
- 2015 Porsche 911 Carrera (991.1)
- 2016 Porsche 911 Carrera (991.1)
- 2013 Porsche Boxster (981)
- 2014 Porsche Boxster (981)
- 2015 Porsche Boxster (981)
- 2016 Porsche Boxster (981)
- 2013 Porsche Cayman (981)
- 2014 Porsche Cayman (981)
- 2015 Porsche Cayman (981)
- 2016 Porsche Cayman (981)
- 2016 Porsche Cayman GT4 (981)
FAQ
What vehicles does the CSF 7067 fit?
The 2012-2016 Porsche 991.1 911 Carrera/Targa and 2013-2016 981 Boxster/Cayman, including the 2016 Cayman GT4.
Which side does it mount on?
The right side. The left-side radiator is CSF 7066.
How many rows is the core?
A 2-row 42mm core with CSF's B-Tube Technology.
Is it a drop-in fit?
Yes. It accepts the OEM AC condenser and fan shroud.
