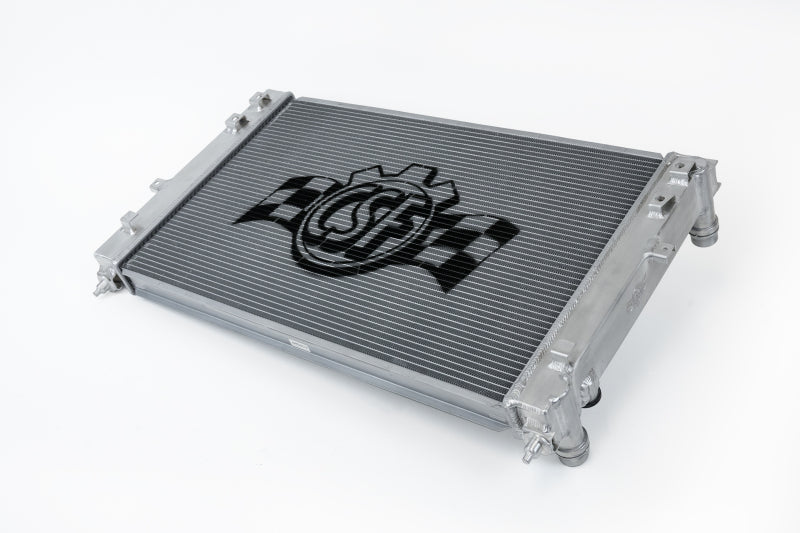

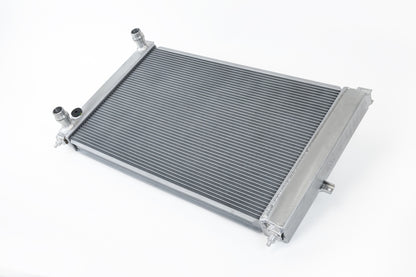

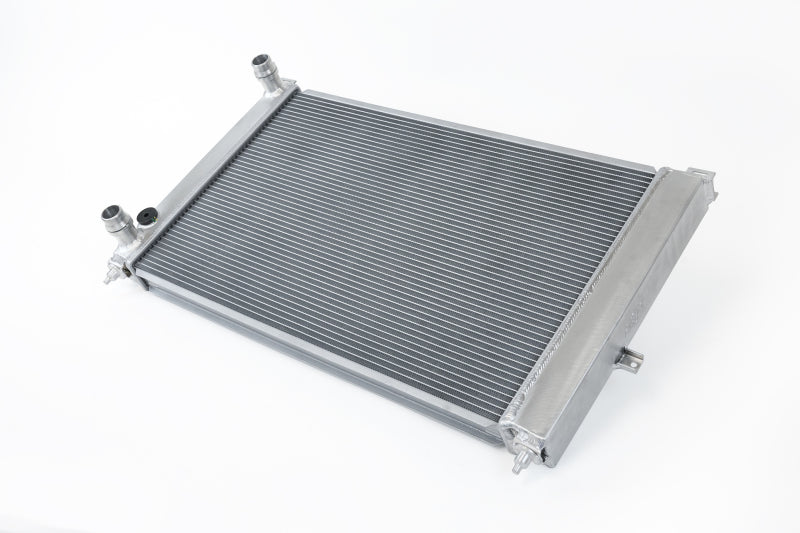

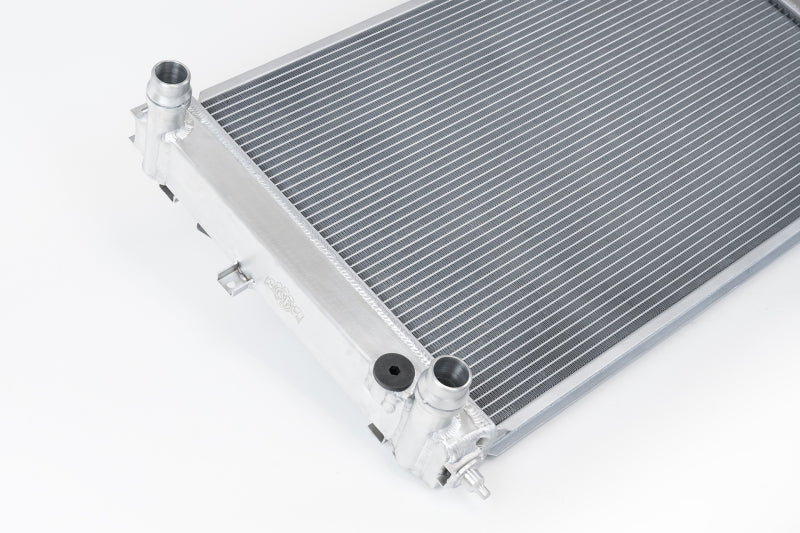

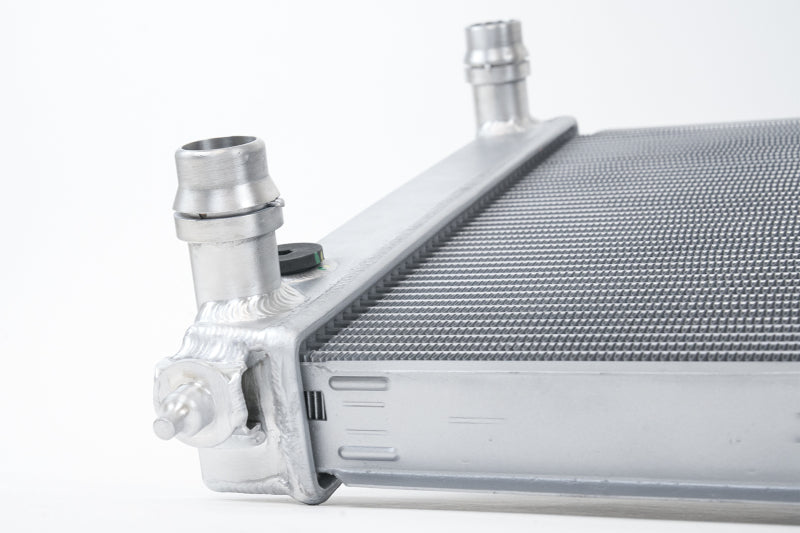

The CSF 7204 is an all-aluminum high-performance radiator for the 1997-2001 Audi B5 A4 and A4 Quattro (including the 1998 A4 Avant) and the 1998-2001 Volkswagen Passat GLS, all with the turbocharged 1.8L four-cylinder and manual transmission. It uses a 2-row 42mm dual-pass core with 45 cooling tubes, CSF's B-Tube Technology, and multi-louvered 6.5mm fins. It is 100 percent TIG-welded all-aluminum with a smooth satin finish, and it is a drop-in fit.
- Type: all-aluminum performance radiator

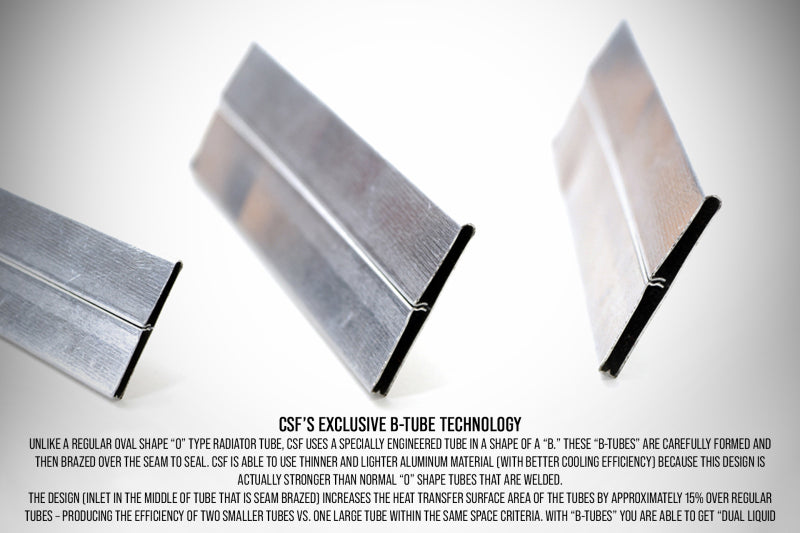

- Core: 2-row, 42mm, B-Tube Technology

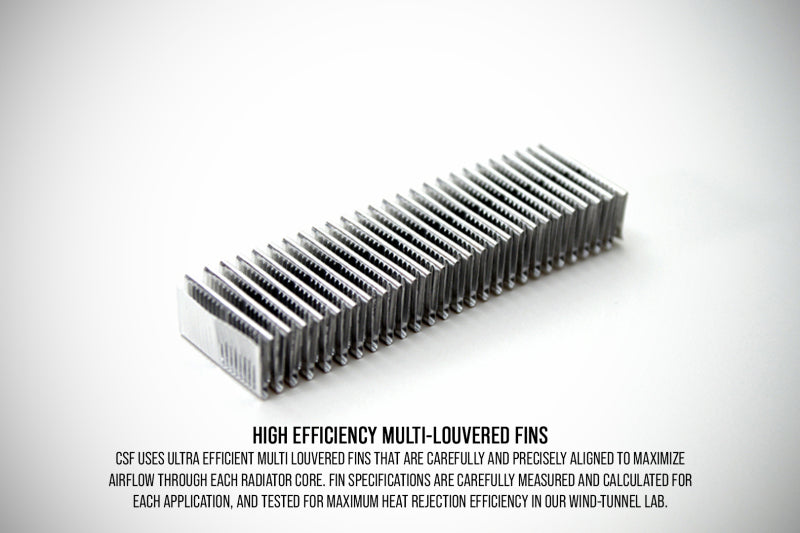

- Fins: multi-louvered, 6.5mm fin height
- Engine: 1.8L turbo
- Transmission: manual
- Core detail: 45 cooling tubes, dual-pass

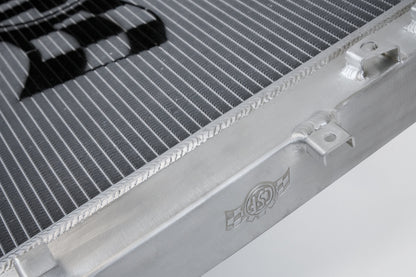

- Construction: 100 percent TIG-welded aluminum
- Finish: smooth satin
- Fitment: drop-in, no modifications
- Part number: 7204
Vehicle Applications
Direct fit on the following (1.8T, manual):
- 1997 Audi A4 (B5)
- 1998 Audi A4 (B5)
- 1999 Audi A4 (B5)
- 2000 Audi A4 (B5)
- 2001 Audi A4 (B5)
- 1998 Audi A4 Avant (B5)
- 1998 Volkswagen Passat GLS
- 1999 Volkswagen Passat GLS
- 2000 Volkswagen Passat GLS
- 2001 Volkswagen Passat GLS
FAQ
What vehicles does the CSF 7204 fit?
The 1997-2001 Audi B5 A4 1.8T and 1998-2001 VW Passat GLS 1.8T with manual transmission.
Does it fit the VW Passat?
Yes. It fits the 1998-2001 Passat GLS with the 1.8L turbo.
How many rows is the core?
A 2-row 42mm dual-pass core with 45 tubes and CSF's B-Tube Technology.
Is it a drop-in fit?
Yes. It requires no modifications.
