This braided fuel crossover kit connects the primary and secondary fuel bowls on Holley's Sniper EFI Stealth 4150 and Terminator X Stealth 4150 throttle bodies, routing around the throttle position sensor for clean clearance. The pre-assembled -6 AN braided hose uses crimp-on ends for a leak-free connection, and the kit includes two fuel bowl standoffs and a T-fitting for a straightforward installation.
Specifications:
- Compatible with: Sniper EFI Stealth 4150 and Terminator X Stealth 4150 systems
- Fitting Size: 6 AN, male inlet
- Hose Construction: Braided, FKM rubber inner liner, meets SAE 30R9

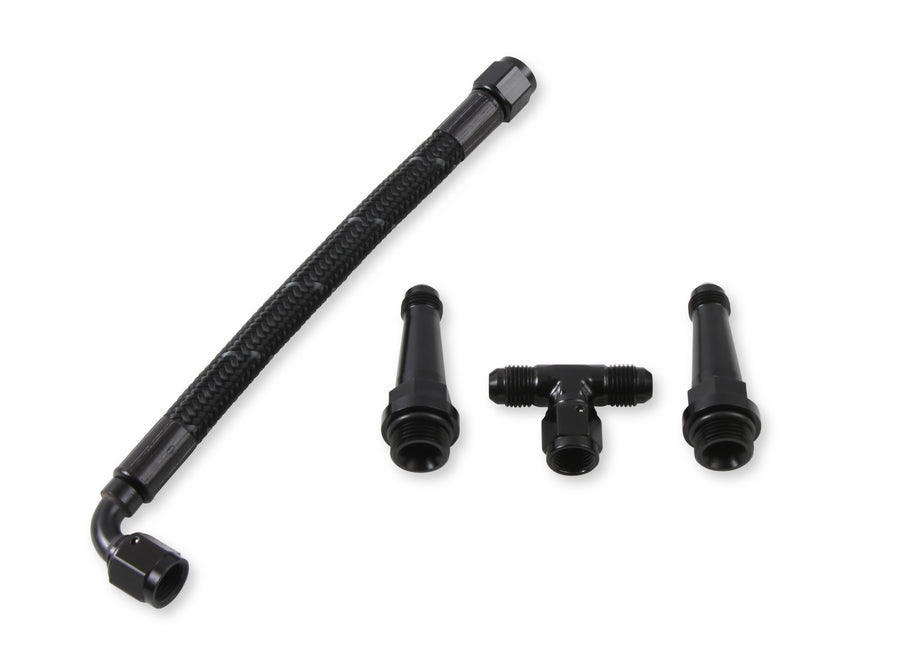

- Includes: Braided crossover hose, two fuel bowl standoffs, T-fitting
- Part Number: 534-236
Compliance: This part is legal for sale and use on Racing Use Only Vehicles — competition vehicles that are not registered and never operated on the street. It is against the law to install this part on an Emissions Controlled Vehicle (1966-and-newer California-certified or 1968-and-newer federally certified vehicles).
FAQ
What systems does the 534-236 crossover kit fit?
Holley's Sniper EFI Stealth 4150 and Terminator X Stealth 4150 throttle body systems.
What fitting size does this kit use?
A -6 AN male inlet with crimp-on braided hose ends for a leak-free connection.
What's included in the kit?
The braided crossover hose, two fuel bowl standoffs, and a T-fitting.
Why does this crossover route around the TPS sensor?
It's designed to provide clearance between the fuel hose and the throttle position sensor mounted on the side of the throttle body.
