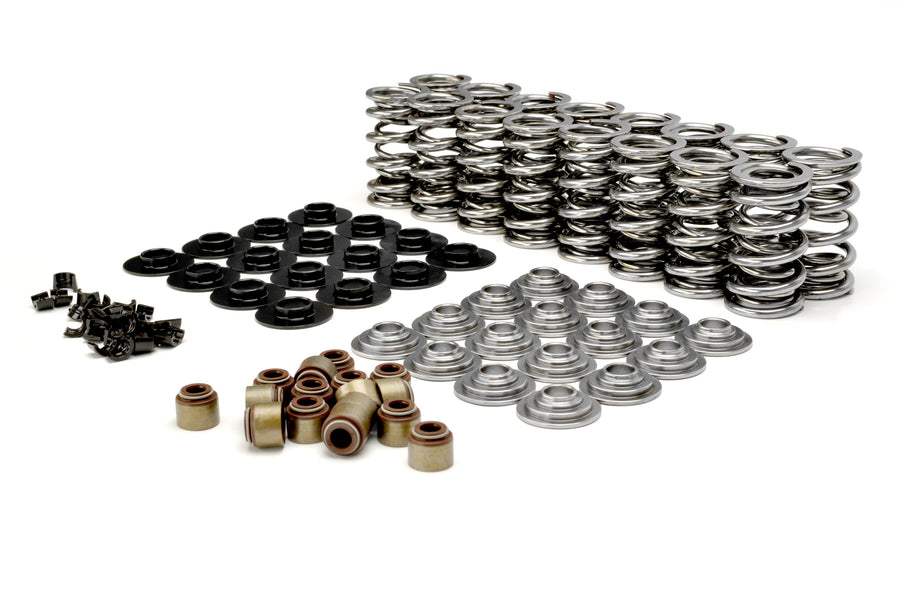

COMP Cams Engine Valve Spring Kit 26925CS-KIT
Specifications:
| Number of Springs | 2 |
| Outer Spring Outside Diameter | 1.320 |
| Outer Spring Inside Diameter | 0.958 |
| Inner Spring Inside Diameter | 0.680 |
| Coil Bind Height | 1.070 |
| Installed Height | 1.810 |
| Seat Pressure | 141 |
| Open Load | 405 |
| Includes Shims? | No |
| Includes Seats? | Yes |
| Included Seats | 4695-16 |
| Spring Rate | 400 |
| Spring Seat Type | I.D. Locator |
| Includes Retainers? | Yes |
| Retainer Material | Chromemoly Steel |
| Damper | No |
| Valve Spring Series | Dual |
| Spring Style | Dual |
| Max Lift | 0.660 |
| Title | GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers; .660" Max Lift |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description_SHO | LSDualSprngKtCStl |
| Description_INV | LSDualSpringkit.66MaxLiftChromemolySteel |
| Description_ASC | See 26925TS-kit for kit with tool steel retainers. |
| Description_KSW | GM |
| Description_KSW | 4.8 |
| Description_KSW | 5.3 |
| Description_KSW | 5.7 |
| Description_KSW | 6.0 |
| Description_KSW | 6.2 |
| Description_KSW | 7.0 |
| Description_KSW | LS1 |
| Description_KSW | LS2 |
| Description_KSW | LS3 |
| Description_KSW | LS4 |
| Description_KSW | LS6 |
| Description_KSW | LS7 |
| Description_KSW | LSA |
| Description_KSW | LS9 |
| Description_KSW | Camaro |
| Description_KSW | Silverado |
| Description_KSW | LS Swap |
| Description_KSW | 383 |
| Description_KSW | 350 |
| Description_KSW | SBC |
| Description_KSW | Chevelle |
| Description_KSW | Yukon |
| Description_KSW | L92 |
| Description_KSW | LM7 |
| Description_KSW | 325 |
| Description_KSW | GMC |
| Description_KSW | Trailblazer |
| Description_KSW | Corvette |
| Description_KSW | GM LS |
| Description_KSW | GEN III |
| Description_KSW | GEN 3 |
| Description_KSW | GEN IV |
| Description_KSW | GEN 4 |
| Description_KSW | DOD |
| Description_KSW | AFM |
| Description_KSW | VVT |
| Description_KSW | BTR |
| Description_KSW | Texas Speed |
| Description_DES | GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers |
| Description_DES | .660" Max Lift |
| Description_APS | GM LS 4.8 |
| Description_APS | 5.3 |
| Description_APS | 5.7 |
| Description_APS | 6.0 and 6.2 Cathedral/Rectangle Port Engines. Excludes LS7. |
| Description_EXT | Including properly matched quality dual valve springs |
| Description_EXT | 7 degree locks |
| Description_EXT | viton seals |
| Description_EXT | hardened seats and chromemoly steel retainers |
| Description_EXT | this spring kit is ready to bolt onto LS heads with aggressive cams with up to .660" valve lift. |
| Description_DEF | Engine Valve Spring Kit |
