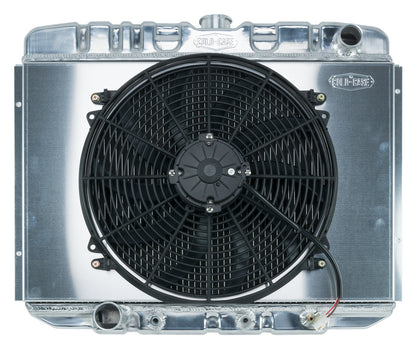

The Cold Case FOM588AK is an aluminum radiator and 16 inch electric fan kit for the 1967-1970 Ford Mustang with a big block engine, set up for an automatic transmission with a right-hand inlet and left-hand outlet. It pairs the FOM588A big block 24 inch radiator with a 16 inch electric fan and shroud, using two 1 inch tubes and 16 corrugated fins per inch with 100 percent TIG-welded construction. Cold Case also lists it as fitting the 1967-1970 Mercury Cougar.
- Type: aluminum radiator and 16in fan kit (big block, automatic)
- Included: radiator plus a 16 in electric fan and shroud
- Core: 2-row, two 1 in tubes, 16 corrugated fins per inch
- Construction: 100 percent TIG-welded aluminum
- Plumbing: RH inlet, LH outlet
- Core size: 24 in W x 16 in H
- Overall size: 25 in W x 21.5 in H x 3 in D
- Hoses: 1.5 in upper, 1.75 in lower; 1/8 in NPT trans fitting
- Part number: FOM588AK
Vehicle Applications
Direct fit on the following (big block, automatic):
- 1967 Ford Mustang
- 1968 Ford Mustang
- 1969 Ford Mustang
- 1970 Ford Mustang
Cold Case also lists this radiator as fitting:
- 1967-1970 Mercury Cougar
FAQ
What is included in the FOM588AK kit?
The FOM588A big block 24 inch radiator plus a 16 inch electric fan and shroud.
What vehicles does it fit?
The 1967-1970 Ford Mustang with a big block, automatic. Cold Case also lists it for the 1967-1970 Cougar.
How is it plumbed?
It has a right-hand inlet and a left-hand outlet.
How wide is the core?
A 24 inch wide 2-row core with two 1 inch tubes and 16 corrugated fins per inch.
