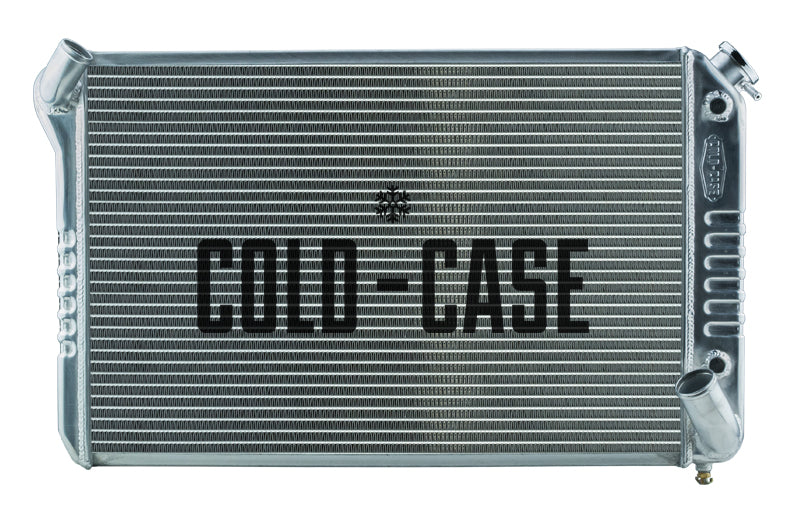

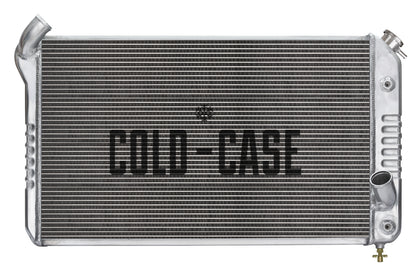

The Cold Case CHV714A is a direct-fit aluminum performance radiator for the 1969-1972 Chevrolet Corvette with a big block engine. It uses an oversize 2-row core with two 1.25 inch tubes and 16 corrugated fins per inch, built with 100 percent TIG-welded aluminum and polished OE-style tanks, and has a 5/16 inch inverted flare transmission cooler fitting. It works with manual or automatic transmissions.
- Type: aluminum performance radiator (big block)
- Core: oversize 2-row, two 1.25 in tubes, 16 corrugated fins per inch
- Construction: 100 percent TIG-welded aluminum, polished OE-style tanks
- Core size: 27.5 in W x 17 in H
- Overall size: 31.75 in W x 19.5 in H x 3 in D
- Hoses: 1.5 in upper, 1.75 in lower; 5/16 in inverted flare trans fitting
- Part number: CHV714A
Vehicle Applications
Direct fit on the following (big block):
- 1969 Chevrolet Corvette
- 1970 Chevrolet Corvette
- 1971 Chevrolet Corvette
- 1972 Chevrolet Corvette
FAQ
What vehicles does the Cold Case CHV714A fit?
The 1969-1972 Chevrolet Corvette with a big block engine.
Does it work with a manual transmission?
Yes. It works with manual or automatic transmissions.
How many rows is the core?
An oversize 2-row core with two 1.25 inch tubes and 16 corrugated fins per inch.
Is there a small block version?
Yes. Cold Case offers a 69-72 Corvette small block radiator as a separate part.
