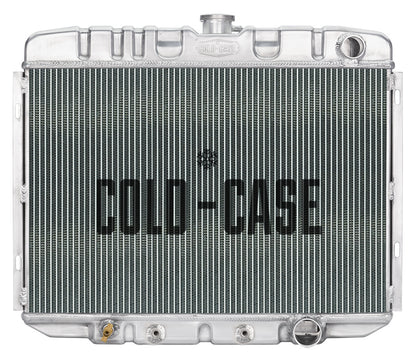

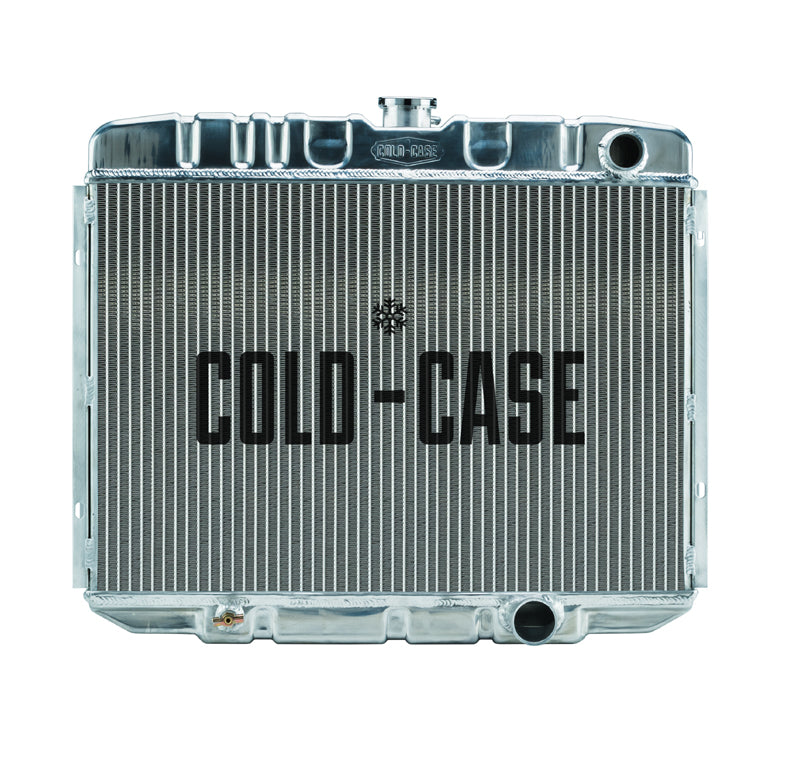

The Cold Case FOM587A is a direct-fit aluminum performance radiator for the 1967-1970 Ford Mustang with a small block engine, set up for an automatic transmission. It uses a 2-row core with two 1 inch tubes and 16 corrugated fins per inch, built with 100 percent TIG-welded aluminum and polished OE-style tanks. The 24 inch core suits air conditioning cars, and cars upgrading from a 20 inch radiator need additional brackets and insulators. Cold Case also lists it as fitting the 1967-1969 Mercury Cougar. The FOM587AK version adds dual 12 inch fans.
- Type: aluminum performance radiator (small block, automatic)
- Core: 2-row, two 1 in tubes, 16 corrugated fins per inch
- Construction: 100 percent TIG-welded aluminum, polished OE-style tanks
- Core size: 24 in W x 16 in H
- Overall size: 25.5 in W x 21.5 in H x 3 in D
- Hoses: 1.5 in upper, 1.75 in lower; 1/8 in NPT trans fitting
- Fits air conditioning cars (24 in core)
- Part number: FOM587A
Vehicle Applications
Direct fit on the following (small block, automatic):
- 1967 Ford Mustang
- 1968 Ford Mustang
- 1969 Ford Mustang
- 1970 Ford Mustang
Cold Case also lists this radiator as fitting:
- 1967-1969 Mercury Cougar
FAQ
What vehicles does the Cold Case FOM587A fit?
The 1967-1970 Ford Mustang with a small block, automatic. The 24 inch core suits air conditioning cars.
What if I have a 20 inch radiator now?
Cars upgrading from a 20 inch radiator need additional brackets and insulators.
Does it include a fan?
No. The FOM587AK version adds dual 12 inch fans.
Does it fit a Cougar?
Cold Case also lists it as fitting the 1967-1969 Mercury Cougar.
