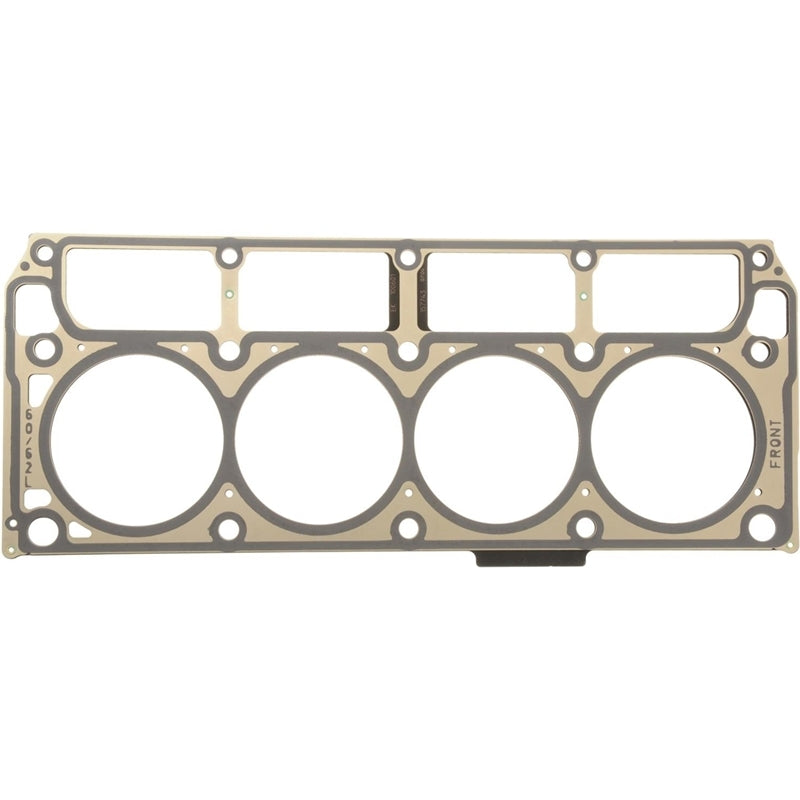

This Clevite multi-layer steel cylinder head gasket is made for GM LS-Series 6.0L V8 engines. It has a 4.100 inch bore and a 0.051 inch compressed thickness, and is sold individually.
Specifications:
- Type: Cylinder head gasket (sold each)
- Material: multi-layer steel
- Bore: 4.100 in
- Compressed thickness: 0.051 in
- Engine: GM LS-Series 6.0L V8
- Part number: 54660
Engine Application: GM LS-Series 6.0L V8 (2007-2020 Chevrolet).
FAQ
What engine does the Clevite 54660 head gasket fit?
It fits GM LS-Series 6.0L V8 engines used in 2007-2020 Chevrolet applications.
Is this sold as a pair?
No, it is sold individually. A V8 uses two cylinder head gaskets, so order two for a complete engine.
What is the thickness and bore?
The bore is 4.100 inches and the compressed thickness is 0.051 inch.
What is the gasket made of?
Multi-layer steel.
