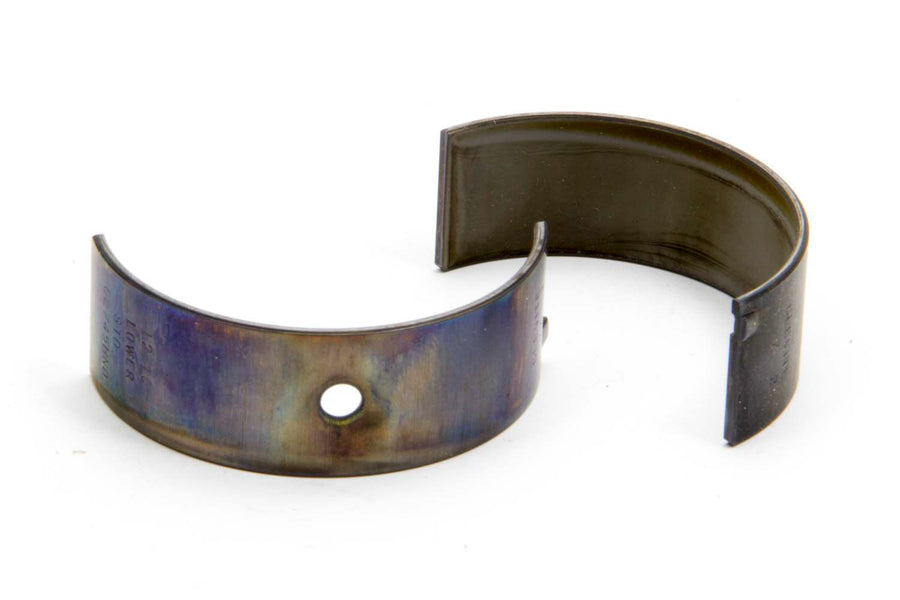

This Clevite H-Series connecting rod bearing fits the small block Chevy V8 (265, 283, 302 and 327 cubic inch). It is a 0.010 in undersize, narrowed, doweled bearing, sold individually. Clevite H-Series performance bearings use a medium level of eccentricity, high crush, a hardened steel back and a thin overlay, and are made without flash plating for better seating. They are intended for crankshafts with oversize fillets and for engines that run in the medium to high RPM range.
Specifications:
- Type: Connecting rod bearing, H-Series (sold each)
- Size: 0.010 in undersize
- Design: narrowed
- Dowel pin hole: yes (doweled)
- Bearing material: TM-77 tri-metal
- Construction: tri-metal, hardened steel back, thin overlay
- Eccentricity: medium
- Crush: high
- Finish: no flash plating (for improved seating)
- Journal size: small journal crankshafts only
- Engine: Small block Chevy V8 (265, 283, 302 and 327 cubic inch)
- Part number: CB745HND10
Engine Application: Small block Chevy V8 (265, 283, 302 and 327 cubic inch), small journal crankshafts only. Confirm against your engine before ordering.
FAQ
What engine does the Clevite CB745HND10 fit?
It fits the small block Chevy V8 in 265, 283, 302 and 327 cubic inch displacements. The listing specifies small journal crankshafts only.
What does H-Series mean?
H-Series is Clevite's performance bearing line. It uses a tri-metal construction with medium eccentricity, high crush, a hardened steel back and a thin overlay, and is made without flash plating for better seating. It is intended for crankshafts with oversize fillets and medium to high RPM use.
What does the D in the part number mean?
It indicates a doweled bearing, one with a dowel pin hole for positive location in the rod.
What does the 10 in the part number mean?
It indicates a 0.010 inch undersize bearing, intended for a crankshaft whose rod journals have been machined that far below standard size. Confirm your journal diameter before ordering.
How many of these bearings do I need?
It is sold individually (each). A V8 has eight connecting rods, so a full rebuild needs eight; order the quantity your build requires.
