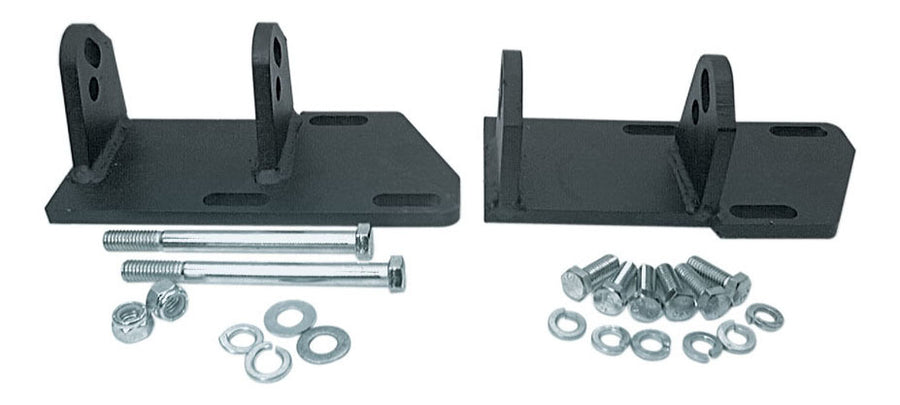

This bolt-on steel motor mount kit replaces the factory 2.8L V6 mounts in a 2WD GM S-10 compact truck, allowing a Chevy V8 engine to bolt directly to the stock frame using the factory-style rubber cushion mount locations. It is designed for engine swappers converting an S-10 2WD from its factory V6 to V8 power.
Specifications:
- Motor Mount type: Bolt-on
- Material: Steel
- Drivetrain: 2WD
- Donor chassis: GM Compact Truck (S-10), factory 2.8L V6
- Engine installed: Chevy V8
- Sold as: Kit
- Part Number: 713111
A long-style water pump (used on Chevy V8 engines from 1978 and newer) is recommended with this mount kit, since it simplifies sourcing the correct accessory brackets.
FAQ
What does the 713111 motor mount kit replace?
It replaces the factory 2.8L V6 motor mounts on a 2WD GM S-10 compact truck.
What engine can be installed with this kit?
A Chevy V8 engine, using the S-10's factory 2WD mount locations.
What material is the 713111 mount kit made from?
Bolt-on steel.
Is a specific water pump recommended for this swap?
Yes, a long-style water pump (used on Chevy V8 engines from 1978 and newer) is recommended to simplify sourcing accessory brackets.
