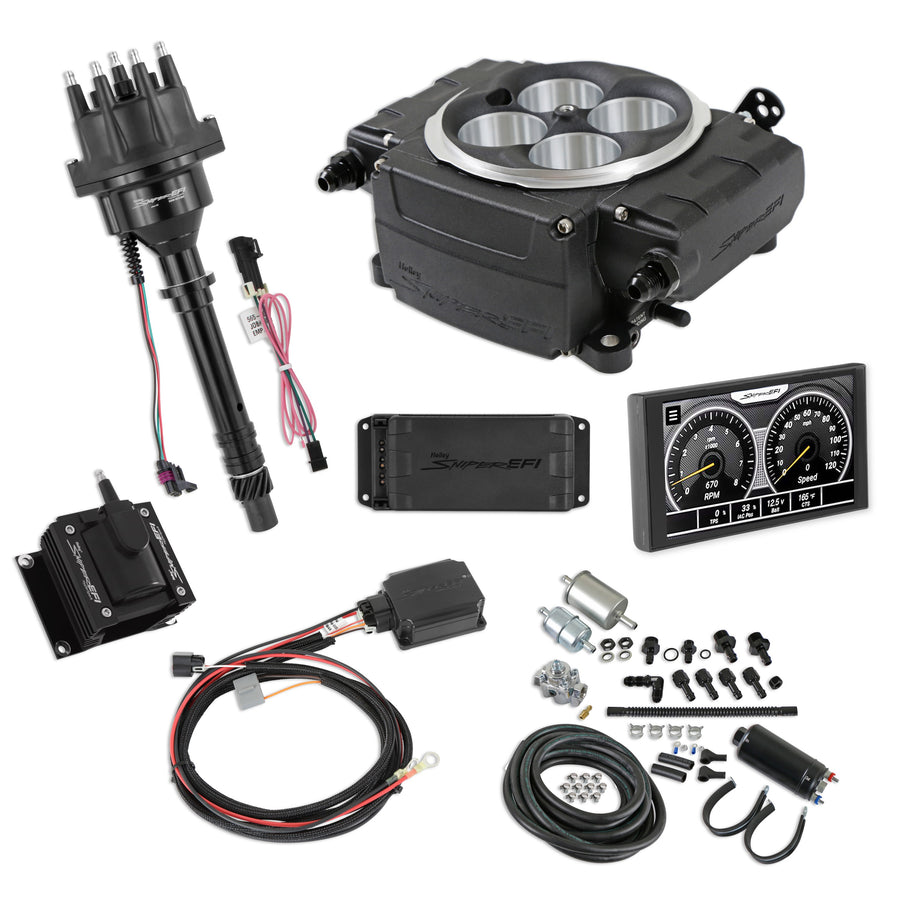

This bundle pairs Holley's top-selling Sniper 2 EFI packages for maximum savings, built for small block Chevrolet, big block Chevrolet, and 8.2-inch deck small block Ford (5.0 base) applications. It combines a HyperSpark distributor, HyperSpark coil, and HyperSpark 2 ignition box with a 5 in. color touchscreen handheld, Power Distribution Module (PDM), and an inline master fuel system for one of the most complete Sniper EFI conversion packages Holley offers.
Key Features:
- HyperSpark ignition kit includes a Chevrolet big/small block distributor, coil, and HyperSpark 2 ignition box for integrated timing control
- Power Distribution Module (PDM) isolates core EFI and ignition wiring into a single positive-lock connection point
- Only battery power, ground, and a switched 12V source are required to power the PDM and Sniper 2 system
- Inline master fuel system includes 20 ft. of 3/8 in. Vapor Guard fuel hose, fuel pump, pressure regulator, filters, hardware, and bulkhead fitting
- 5 in. full-color LCD touchscreen handheld for setup, tuning, and gauge displays
- Next generation ECU with improved RF noise and interference resistance
- Hidden-harness wiring exits from the rear of the throttle body for a clean installation
- Cast-in fuel crossover from the primary to secondary fuel rail
- Geometrically redesigned throttle shaft and plate for a smoother throttle feel
- Genuine Bosch LSU 4.9 wideband oxygen sensor for real-time fuel map learning
- Integrated transmission kick-down provisions for GM TH350/400, 200-4R/700R4 and Ford C4/C6
- Only 4 wiring connections required: Battery+, Battery-, Switched Ignition, and RPM
- Supports up to 650 hp naturally aspirated or 575 hp on boost with four 100 lb/hr injectors
Specifications:
- Product Type: Sniper EFI
- Flange Style: 4150
- Finish: Black
- CFM: 800
- Max Horsepower Rating: 650 Naturally Aspirated / 575 Boosted
- Injector Size: 100 lb/hr @ 58.5 PSI
- Fuel Pressure: 58.5 PSI
- Fuel Pump Flow Rating: 240 LPH
- Fuel System: Inline, Master Kit
- Distributor Included: Chevrolet Big Block, Chevrolet Small Block
- HyperSpark Ignition Kit: Chevrolet Big/Small Block
- MAP Sensor: 2 Bar
- User Interface: 5 in. Handheld
- Power Distribution Module: Yes
- Transmission Compatibility: All
- Height: 3.28 in.
- Warranty: Two Year Standard, Extended Via Product Registration
- Part Number: 550-511-5PK-SBC
Nitrous control is not supported in Sniper 2 EFI software.
FAQ
What's included in the 550-511-5PK-SBC bundle?
This bundle pairs a Sniper 2 EFI throttle body with a Power Distribution Module, a 5 in. color touchscreen handheld, a complete inline master fuel system, and a HyperSpark ignition kit with a Chevrolet big/small block distributor, coil, and HyperSpark 2 ignition box.
How much horsepower can this kit support?
Up to 650 hp naturally aspirated or 575 hp under boost, using four 100 lb/hr injectors.
Does this kit support nitrous control?
No. Nitrous control is not supported in Sniper 2 EFI software.
Do I need a laptop to tune this system?
No. The 5 in. handheld runs a setup wizard that builds a base tune from a few questions about the engine, then the system self-tunes with no laptop required.
What vehicles is the HyperSpark distributor compatible with?
The included HyperSpark ignition kit and distributor are configured for Chevrolet big block and small block engines.
