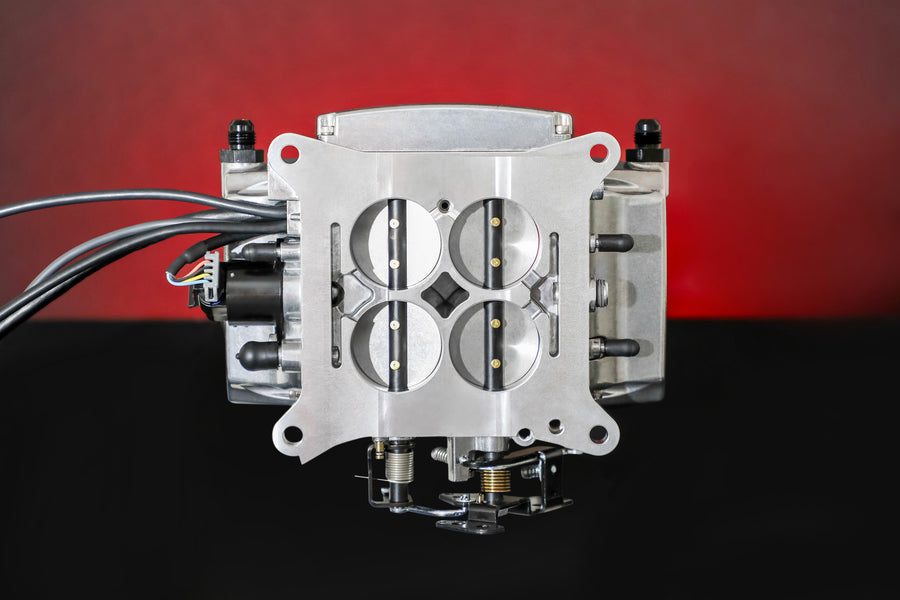

This Sniper 2 EFI base kit pairs the self-tuning Sniper 2 throttle body with the optional Power Distribution Module (PDM) for simplified wiring, plus a 5" full-color handheld display. A fuel pressure regulator and fuel delivery system are not included, making this ideal for builders pairing the throttle body with their own fuel system.
Key Features:
- All-new Sniper 2 design built on the proven Sniper EFI conversion platform
- Power Distribution Module (PDM) simplifies wiring to essentially battery, ground, and a switched 12-volt source
- Includes a genuine Bosch LSU 4.9 wideband oxygen sensor with clamp-on kit and stainless T-bolt clamps
- Cast-in fuel crossover from the primary to secondary fuel rail
- Next-generation ECU offers improved RF noise and interference resistance
- Redesigned injector connector for improved reliability
- Redesigned throttle shaft and plate geometry for a smoother throttle feel
- "Hidden Harness" wiring exits from the rear of the throttle body for a clean installation
- Main harness includes plug-and-play HyperSpark distributor support for integrated timing control
- Adapters for other ignition types sold separately (CD box or MSD Pro Billet/crank trigger to Sniper 2)
- Next-generation mil-spec style M8 positive-lock connector for CAN1/CAN2
- Sniper 2 throttle bodies are individually serialized for improved customer service and warranty tracking
- Integrated transmission kick-down provisions for GM TH350/400, 200-4R/700R4, and Ford C4/C6
- Wide variety of tuning/gauge display interfaces: 3.5" handheld, 5" digital dash, or Bluetooth dongle for iOS/Android
Specifications:
- Flange Style: 4150
- CFM: 800
- Fuel System: Not included
- Injector Size: 100 lb/hr @ 58.5 PSI (4 injectors)
- Fuel Pressure: 58.5 PSI
- MAP Sensor: 2 Bar
- Max Horsepower Rating: 650 HP naturally aspirated / 575 HP boosted
- Power Distribution Module: Yes
- Transmission Compatibility: All
- User Interface: 5" Handheld
- Finish: Polished
- Part Number: 550-510-5PX
A fuel pump and delivery system are not included and must be sourced separately or paired with an existing setup.
FAQ
Does this kit include a fuel pump?
No. This base kit includes the throttle body, PDM, and handheld display, but not a fuel delivery system.
What does the PDM simplify?
It isolates the core EFI and ignition wiring into one location, cutting vehicle-side wiring down to essentially battery power, ground, and a switched 12-volt source.
What size display comes with this kit?
A 5" full-color handheld display.
How much horsepower does this system support?
Up to 650 hp naturally aspirated or 575 hp with forced induction.
Can I run this with a HyperSpark ignition?
Yes. The main harness includes plug-and-play HyperSpark distributor support for integrated timing control.
