Baer Brake Systems Baer Brakes 13" Classic Series Brake Kit - Front 4301551R
Specifications:
| Applications | GM A-Body 64-72 |
| Applications | GM A-Body 64-72 |
| Applications | GM F-Body 67-69 |
| Applications | GM F-Body 67-69 |
| Applications | GM X-Body 64-74 |
| Applications | GM X-Body 64-74 |
| Axle | Front |
| Axle | Front |
| 9369 | Yes |
| 9369 | Yes |
| Brand | Baer Brakes |
| Brand | Baer Brakes |
| Caliper | 2 PGC |
| Caliper | 2 PGC |
| 8247 | Red |
| 8247 | Red |
| Category | Brakes |
| Category | Brakes |
| 9363 | 2 |
| 9363 | 2 |
| 9358 | Floating |
| 9358 | Floating |
| 151 | D0412 |
| 151 | D0412 |
| 9361 | Vented |
| 9361 | Vented |
| 9365 | 13.000 |
| 9365 | 13.000 |
| Emission Code | 6 |
| Emission Code | 6 |
| Export Description | Brake Components |
| Export Description | Brake Components |
| Fitment Notes | w/OE, DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles |
| Fitment Notes | w/OE, DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles |
| 3 | Ceramic |
| 3 | Ceramic |
| 3390 | Performance |
| 3390 | Performance |
| 761 | Stainless Steel |
| 761 | Stainless Steel |
| Lug Count | 5 Lug |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 17 |
| Min Wheel Dia (verify using template) | 17 |
| part type | Disc Brake Upgrade Kit |
| part type | Disc Brake Upgrade Kit |
| Product Line | Classic |
| Product Line | Classic |
| Product Type | 13 Inch Classic Front Brake Kit |
| Product Type | 13 Inch Classic Front Brake Kit |
| Prop 65 (C, R or CR) | C |
| Prop 65 (C, R or CR) | C |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Prop 65 Yes/No | Yes |
| Rotor Diameter | 13.000 |
| Rotor Diameter | 13.000 |
| Rotor Thickness | 1.100 |
| Rotor Thickness | 1.100 |
| Rotor Type | 1-Piece Integral Hub |
| Rotor Type | 1-Piece Integral Hub |
| 7171 | Vented |
| 7171 | Vented |
| Sub Category | Service Kits |
| Sub Category | Service Kits |
| Surface Type | Slotted, Drilled & Zinc Plated |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | For stock spindles. Also fits Heidts Drop Spindle SP-110 |
| System Notes | For stock spindles. Also fits Heidts Drop Spindle SP-110 |
| Template | D082H |
| Template | D082H |
| Title | Classic Series Front Brake Kit |
| Title | Classic Series Front Brake Kit |
| Warning | California Proposition 65 |
| Warning | California Proposition 65 |
| Wheel Lug/Bolt Pattern | 5x4.75 |
| Wheel Lug/Bolt Pattern | 5x4.75 |
| Wheel Stud Size | 1/2-20 x 2.25 inch |
| Wheel Stud Size | 1/2-20 x 2.25 inch |
| Description_INV | 13" CLASSIC SERIES BRAKE KIT FRT RED |
| Description_ASC | ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES | Baer Brakes 13" Classic Series Brake Kit - Front |
| Description_EXT | Red, Fits 1964-1972 GM Chevelle/Cutlass/Skylark, 1967-1969 Camaro/Firebird, 1964-1974 Nova/Omega/Ventura w/OE Spindles, Slotted/Drilled/Zinc Plated Rotor |

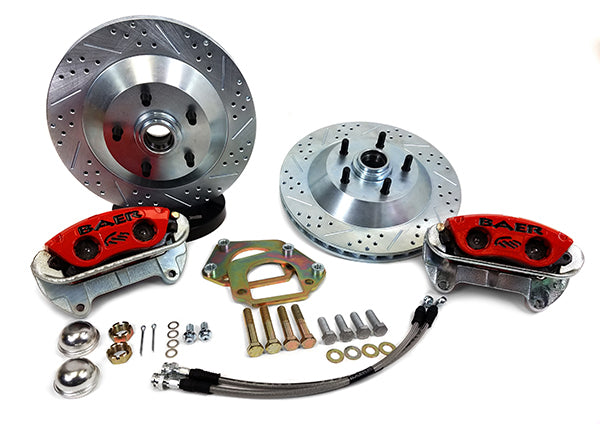

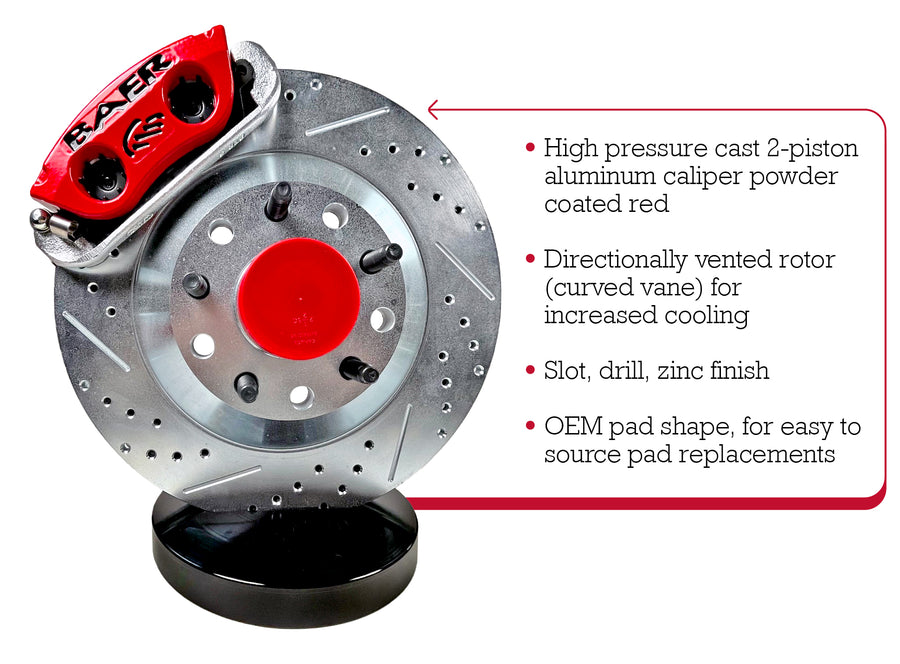

| Description_MKT | A vintage-friendly system with modern manners: Baer’s 2-piston pad-guided calipers (red, D412 pads) and 13" one-piece slotted, drilled, zinc-plated rotors with integral hubs. Premium bearings (races installed), dust caps, brackets, stainless braided hoses, and hardware are included. Intended for most 17"+ wheels, it’s tuned for a 15/16" master (or 7/8" manual) to maintain proper line pressure and pedal feel. |

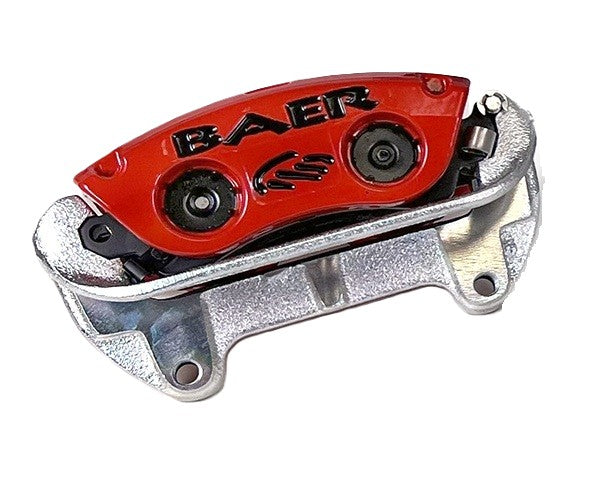

| Description_FAB | Aluminum, 2-Piston, Pad Guided Caliper |
| Description_FAB | Red Powder Coated Caliper w/Black Baer Logo |
| Description_FAB | Slot, Drill, Zinc Plated Rotor Finish |
| Description_FAB | Stainless Braided Brake Hoses |
| Description_FAB | Uses Common FMSI D0412 Brake Pad |
| Description_FAB | Modern Brakes for Small Wheels at an Economical Price |
| Description_INV | 13" CLASSIC SERIES BRAKE KIT FRT RED |
| Description_ASC | ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES | Baer Brakes 13" Classic Series Brake Kit - Front |
| Description_EXT | Red, Fits 1964-1972 GM Chevelle/Cutlass/Skylark, 1967-1969 Camaro/Firebird, 1964-1974 Nova/Omega/Ventura w/OE Spindles, Slotted/Drilled/Zinc Plated Rotor |
| Description_MKT | A vintage-friendly system with modern manners: Baer’s 2-piston pad-guided calipers (red, D412 pads) and 13" one-piece slotted, drilled, zinc-plated rotors with integral hubs. Premium bearings (races installed), dust caps, brackets, stainless braided hoses, and hardware are included. Intended for most 17"+ wheels, it’s tuned for a 15/16" master (or 7/8" manual) to maintain proper line pressure and pedal feel. |
| Description_FAB | Aluminum, 2-Piston, Pad Guided Caliper |
| Description_FAB | Red Powder Coated Caliper w/Black Baer Logo |
| Description_FAB | Slot, Drill, Zinc Plated Rotor Finish |
| Description_FAB | Stainless Braided Brake Hoses |
| Description_FAB | Uses Common FMSI D0412 Brake Pad |
| Description_FAB | Modern Brakes for Small Wheels at an Economical Price |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1964 | Buick | Skylark | ||
| 1965 | Buick | Skylark | ||
| 1966 | Buick | Skylark | ||
| 1967 | Buick | Skylark | ||
| 1968 | Buick | Skylark | ||
| 1969 | Buick | Skylark | ||
| 1970 | Buick | Skylark | ||
| 1971 | Buick | Skylark | ||
| 1972 | Buick | Skylark | ||
| 1964 | Buick | Special | ||
| 1965 | Buick | Special | ||
| 1966 | Buick | Special | ||
| 1967 | Buick | Special | ||
| 1968 | Buick | Special | ||
| 1969 | Buick | Special | ||
| 1964 | Buick | Sportwagon | ||
| 1965 | Buick | Sportwagon | ||
| 1966 | Buick | Sportwagon | ||
| 1967 | Buick | Sportwagon | ||
| 1968 | Buick | Sportwagon | ||
| 1969 | Buick | Sportwagon | ||
| 1970 | Buick | Sportwagon | ||
| 1971 | Buick | Sportwagon | ||
| 1972 | Buick | Sportwagon | ||
| 1967 | Chevrolet | Camaro | ||
| 1968 | Chevrolet | Camaro | ||
| 1969 | Chevrolet | Camaro | ||
| 1964 | Chevrolet | Chevelle | ||
| 1965 | Chevrolet | Chevelle | ||
| 1966 | Chevrolet | Chevelle | ||
| 1967 | Chevrolet | Chevelle | ||
| 1968 | Chevrolet | Chevelle | ||
| 1969 | Chevrolet | Chevelle | ||
| 1970 | Chevrolet | Chevelle | ||
| 1971 | Chevrolet | Chevelle | ||
| 1972 | Chevrolet | Chevelle | ||
| 1964 | Chevrolet | Chevy II | ||
| 1965 | Chevrolet | Chevy II | ||
| 1966 | Chevrolet | Chevy II | ||
| 1967 | Chevrolet | Chevy II | ||
| 1968 | Chevrolet | Chevy II | ||
| 1964 | Chevrolet | El Camino | ||
| 1965 | Chevrolet | El Camino | ||
| 1966 | Chevrolet | El Camino | ||
| 1967 | Chevrolet | El Camino | ||
| 1968 | Chevrolet | El Camino | ||
| 1969 | Chevrolet | El Camino | ||
| 1970 | Chevrolet | El Camino | ||
| 1971 | Chevrolet | El Camino | ||
| 1972 | Chevrolet | El Camino | ||
| 1964,1967 | Chevrolet | Malibu | ||
| 1970 | Chevrolet | Monte Carlo | ||
| 1971 | Chevrolet | Monte Carlo | ||
| 1972 | Chevrolet | Monte Carlo | ||
| 1969 | Chevrolet | Nova | ||
| 1970 | Chevrolet | Nova | ||
| 1971 | Chevrolet | Nova | ||
| 1972 | Chevrolet | Nova | ||
| 1973 | Chevrolet | Nova | ||
| 1974 | Chevrolet | Nova | ||
| 1964 | Oldsmobile | 442 | ||
| 1965 | Oldsmobile | 442 | ||
| 1966 | Oldsmobile | 442 | ||
| 1967 | Oldsmobile | 442 | ||
| 1968 | Oldsmobile | 442 | ||
| 1969 | Oldsmobile | 442 | ||
| 1970 | Oldsmobile | 442 | ||
| 1971 | Oldsmobile | 442 | ||
| 1964 | Oldsmobile | Cutlass | ||
| 1965 | Oldsmobile | Cutlass | ||
| 1966 | Oldsmobile | Cutlass | ||
| 1967 | Oldsmobile | Cutlass | ||
| 1968 | Oldsmobile | Cutlass | ||
| 1969 | Oldsmobile | Cutlass | ||
| 1970 | Oldsmobile | Cutlass | ||
| 1971 | Oldsmobile | Cutlass | ||
| 1972 | Oldsmobile | Cutlass | ||
| 1967 | Oldsmobile | Cutlass Supreme | ||
| 1968 | Oldsmobile | Cutlass Supreme | ||
| 1969 | Oldsmobile | Cutlass Supreme | ||
| 1970 | Oldsmobile | Cutlass Supreme | ||
| 1971 | Oldsmobile | Cutlass Supreme | ||
| 1972 | Oldsmobile | Cutlass Supreme | ||
| 1964 | Oldsmobile | Vista Cruiser | ||
| 1965 | Oldsmobile | Vista Cruiser | ||
| 1966 | Oldsmobile | Vista Cruiser | ||
| 1967 | Oldsmobile | Vista Cruiser | ||
| 1968 | Oldsmobile | Vista Cruiser | ||
| 1969 | Oldsmobile | Vista Cruiser | ||
| 1970 | Oldsmobile | Vista Cruiser | ||
| 1971 | Oldsmobile | Vista Cruiser | ||
| 1972 | Oldsmobile | Vista Cruiser | ||
| 1967 | Pontiac | Firebird | ||
| 1968 | Pontiac | Firebird | ||
| 1969 | Pontiac | Firebird | ||
| 1964 | Pontiac | GTO | ||
| 1965 | Pontiac | GTO | ||
| 1966 | Pontiac | GTO | ||
| 1967 | Pontiac | GTO | ||
| 1968 | Pontiac | GTO | ||
| 1969 | Pontiac | GTO | ||
| 1970 | Pontiac | GTO | ||
| 1971 | Pontiac | GTO | ||
| 1972 | Pontiac | GTO | ||
| 1964 | Pontiac | LeMans | ||
| 1965 | Pontiac | LeMans | ||
| 1966 | Pontiac | LeMans | ||
| 1967 | Pontiac | LeMans | ||
| 1968 | Pontiac | LeMans | ||
| 1969 | Pontiac | LeMans | ||
| 1970 | Pontiac | LeMans | ||
| 1971 | Pontiac | LeMans | ||
| 1972 | Pontiac | LeMans | ||
| 1964 | Pontiac | Tempest | ||
| 1965 | Pontiac | Tempest | ||
| 1966 | Pontiac | Tempest | ||
| 1967 | Pontiac | Tempest | ||
| 1968 | Pontiac | Tempest | ||
| 1969 | Pontiac | Tempest | ||
| 1970 | Pontiac | Tempest |
