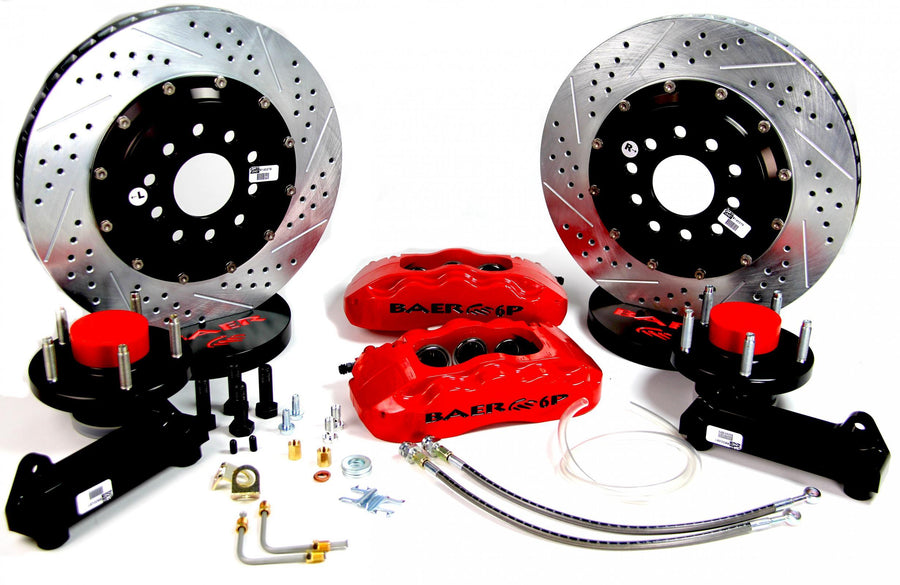

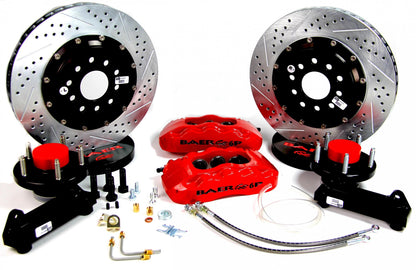

Baer Brake Systems Baer Brakes 14" Pro+ Front Brake Kit, Red, SDZ, Std. Studs 4301339R
Specifications:
| Description_INV | 14" Pro+ F Brk Kit R SDZ Std Studs |
| Description_INV | 14" Pro+ F Brk Kit R SDZ Std Studs |
| Description_ASC | Increases track width .900" Per Side on OE drum spindles ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_ASC | Increases track width .900" Per Side on OE drum spindles ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES | Baer Brakes 14" Pro+ Front Brake Kit, Red, SDZ, Std. Studs |
| Description_DES | Baer Brakes 14" Pro+ Front Brake Kit, Red, SDZ, Std. Studs |
| Description_EXT | Fits 1955-68 Chevy Full Size Passenger Cars w/OE Drum Brake Spindle & 1963-68 Chevy Corvette w/OE Spindles (All) |
| Description_EXT | Fits 1955-68 Chevy Full Size Passenger Cars w/OE Drum Brake Spindle & 1963-68 Chevy Corvette w/OE Spindles (All) |

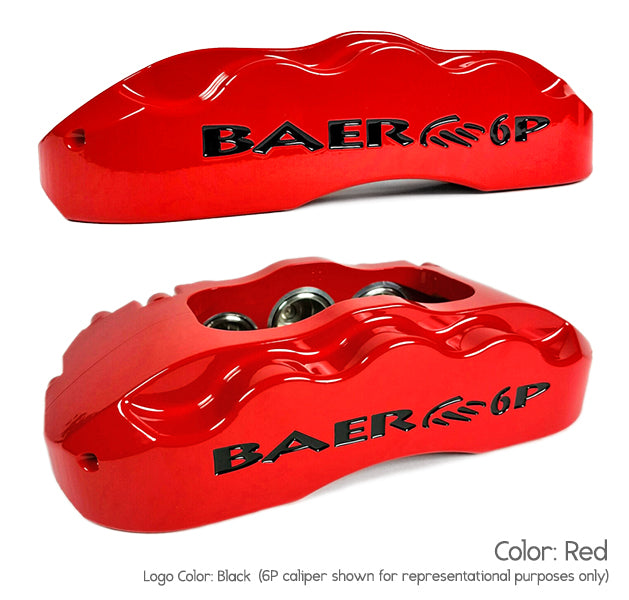

| Description_MKT | This system features the 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels. |
| Description_MKT | This system features the 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels. |
| Description_FAB | 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ |
| Description_FAB | 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ |
| Description_FAB | CNC Machined from US Sourced Forged or Billet Aluminum |
| Description_FAB | CNC Machined from US Sourced Forged or Billet Aluminum |
| Description_FAB | Powder Coated Finish |
| Description_FAB | Powder Coated Finish |
| Description_FAB | Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| Description_FAB | Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| Description_FAB | Staggered Pistons to Minimize Uneven Pad Wear |
| Description_FAB | Staggered Pistons to Minimize Uneven Pad Wear |
| Description_FAB | Dual Seals, Dust/Weather & Pressure |
| Description_FAB | Dual Seals, Dust/Weather & Pressure |
| Description_FAB | 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat |
| Description_FAB | 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat |
| Applications | GM Chevy Corvette 63-68 |
| Applications | GM Full Size Pass Car (Chevy) 55-68 |
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | 6P |
| 8247 | Red |
| Category | Brake |
| 9363 | 6 |
| 9358 | Fixed |
| 151 | D0731 |
| 9361 | Vented |
| 9365 | 14.000 |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/OE Drum Brake Spindles |
| Fitment Notes | w/OE Spindles |
| 3390 | Performance |
| 761 | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 18 |
| part type | Disc Brake Upgrade Kit |
| Product Line | 14 Inch Pro+ |
| Product Type | 14 Inch Pro+ Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.150 |
| Rotor Type | 2-Piece |
| Sub Category | Service Kits |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | For stock spindles, increased track width .900 per side |
| Template | Q082P |
| Title | Pro+ Brake System Front |
| Warning | California Proposition 65 |

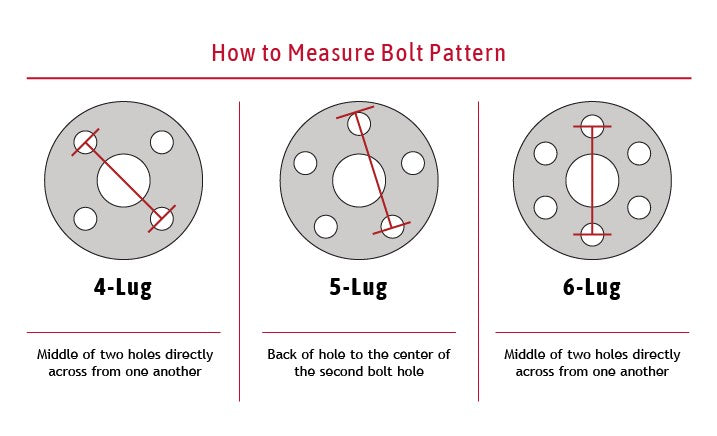

| Wheel Lug/Bolt Pattern | 5x4.75 |
| Wheel Stud Size | 1/2-20 x 2.25 inch |
| Applications | GM Chevy Corvette 63-68 |
| Applications | GM Full Size Pass Car (Chevy) 55-68 |
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | 6P |
| 8247 | Red |
| Category | Brake |
| 9363 | 6 |
| 9358 | Fixed |
| 151 | D0731 |
| 9361 | Vented |
| 9365 | 14.000 |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/OE Drum Brake Spindles |
| Fitment Notes | w/OE Spindles |
| 3390 | Performance |
| 761 | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 18 |
| part type | Disc Brake Upgrade Kit |
| Product Line | 14 Inch Pro+ |
| Product Type | 14 Inch Pro+ Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.150 |
| Rotor Type | 2-Piece |
| Sub Category | Service Kits |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | For stock spindles, increased track width .900 per side |
| Template | Q082P |
| Title | Pro+ Brake System Front |
| Warning | California Proposition 65 |
| Wheel Lug/Bolt Pattern | 5x4.75 |
| Wheel Stud Size | 1/2-20 x 2.25 inch |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1955 | Chevrolet | Bel Air | ||
| 1956 | Chevrolet | Bel Air | ||
| 1957 | Chevrolet | Bel Air | ||
| 1958 | Chevrolet | Bel Air | ||
| 1959 | Chevrolet | Bel Air | ||
| 1960 | Chevrolet | Bel Air | ||
| 1961 | Chevrolet | Bel Air | ||
| 1962 | Chevrolet | Bel Air | ||
| 1963 | Chevrolet | Bel Air | ||
| 1964 | Chevrolet | Bel Air | ||
| 1965 | Chevrolet | Bel Air | ||
| 1966 | Chevrolet | Bel Air | ||
| 1967 | Chevrolet | Bel Air | ||
| 1968 | Chevrolet | Bel Air | ||
| 1958 | Chevrolet | Biscayne | ||
| 1959 | Chevrolet | Biscayne | ||
| 1960 | Chevrolet | Biscayne | ||
| 1961 | Chevrolet | Biscayne | ||
| 1962 | Chevrolet | Biscayne | ||
| 1963 | Chevrolet | Biscayne | ||
| 1964 | Chevrolet | Biscayne | ||
| 1965 | Chevrolet | Biscayne | ||
| 1966 | Chevrolet | Biscayne | ||
| 1967 | Chevrolet | Biscayne | ||
| 1968 | Chevrolet | Biscayne | ||
| 1958 | Chevrolet | Brookwood | ||
| 1959 | Chevrolet | Brookwood | ||
| 1960 | Chevrolet | Brookwood | ||
| 1961 | Chevrolet | Brookwood | ||
| 1966 | Chevrolet | Caprice | ||
| 1967 | Chevrolet | Caprice | ||
| 1968 | Chevrolet | Caprice | ||
| 1963 | Chevrolet | Corvette | ||
| 1964 | Chevrolet | Corvette | ||
| 1965 | Chevrolet | Corvette | ||
| 1966 | Chevrolet | Corvette | ||
| 1967 | Chevrolet | Corvette | ||
| 1968 | Chevrolet | Corvette | ||
| 1957 | Chevrolet | Del Ray | ||
| 1958 | Chevrolet | Del Ray | ||
| 1958 | Chevrolet | Impala | ||
| 1959 | Chevrolet | Impala | ||
| 1960 | Chevrolet | Impala | ||
| 1961 | Chevrolet | Impala | ||
| 1962 | Chevrolet | Impala | ||
| 1963 | Chevrolet | Impala | ||
| 1964 | Chevrolet | Impala | ||
| 1965 | Chevrolet | Impala | ||
| 1966 | Chevrolet | Impala | ||
| 1967 | Chevrolet | Impala | ||
| 1968 | Chevrolet | Impala | ||
| 1964,1967 | Chevrolet | Malibu | ||
| 1955 | Chevrolet | One-Fifty Series | ||
| 1956 | Chevrolet | One-Fifty Series | ||
| 1957 | Chevrolet | One-Fifty Series | ||
| 1955 | Chevrolet | Two-Ten Series | ||
| 1956 | Chevrolet | Two-Ten Series | ||
| 1957 | Chevrolet | Two-Ten Series | ||
| 1958 | Chevrolet | Yeoman |
