Lakewood Fits Tremec TKX and TKO, Muncie, Saginaw, and Borg Warner T10 Transmissions LK5000K
Regular Price
$477.95
The bellhousing (#LK4000), clutch fork boot (#50351), inspection cover (#50353), and mounting hardware kit (#50369) are also available individually and can be found below under Service Parts.
Lakewood Fits Tremec TKX and TKO, Muncie, Saginaw, and Borg Warner T10 Transmissions LK5000K
Specifications:
| Brand | Lakewood |
| Category | Transmission and Drivetrain |
| Clutch | 11" |
| Color | Cast |
| Emission Code | 6 |
| Engine | GM Gen III/IV (LS) |
| Engine Make | Chevrolet |
| Flywheel | 153 or 168 Tooth |
| Height | 6.45 |
| Make | Chevrolet |
| 10 | Cast Aluminum |
| Product Type | Bellhousing Kit |
| SFI Approved | No |
| Trans. Bore Diameter | 4.685 |
| Transmission | Muncie |
| Transmission | T10 |
| Transmission | Jerico |
| Transmission | BorgWarner |
| Transmission | Brinn Racing |
| Transmission | Richmond |
| Transmission | Bert Racing |
| Transmission | Saginaw |
| Transmission | T5 GM |
| Transmission | TKX GM |
| Transmission | TKO 500/600 GM |
| Transmission | Falcon |
| Transmission Type | Manual |
| Brand | Lakewood |
| Category | Transmission and Drivetrain |
| Clutch | 11" |
| Color | Cast |
| Emission Code | 6 |
| Engine | GM Gen III/IV (LS) |
| Engine Make | Chevrolet |
| Flywheel | 153 or 168 Tooth |
| Height | 6.45 |
| Make | Chevrolet |
| 10 | Cast Aluminum |
| Product Type | Bellhousing Kit |
| SFI Approved | No |
| Trans. Bore Diameter | 4.685 |
| Transmission | Muncie |
| Transmission | T10 |
| Transmission | Jerico |
| Transmission | BorgWarner |
| Transmission | Brinn Racing |
| Transmission | Richmond |
| Transmission | Bert Racing |
| Transmission | Saginaw |
| Transmission | T5 GM |
| Transmission | TKX GM |
| Transmission | TKO 500/600 GM |
| Transmission | Falcon |
| Transmission Type | Manual |
| Description_INV | ALUMINUM BELL HOUSING CHEVROLET LS |
| Description_DES | Lakewood Bellhousing Kit - LS/Gen V LT Engines - TKX and TKO |
| Description_EXT | Fits Tremec TKX and TKO, Muncie, Saginaw, and Borg Warner T10 Transmissions |

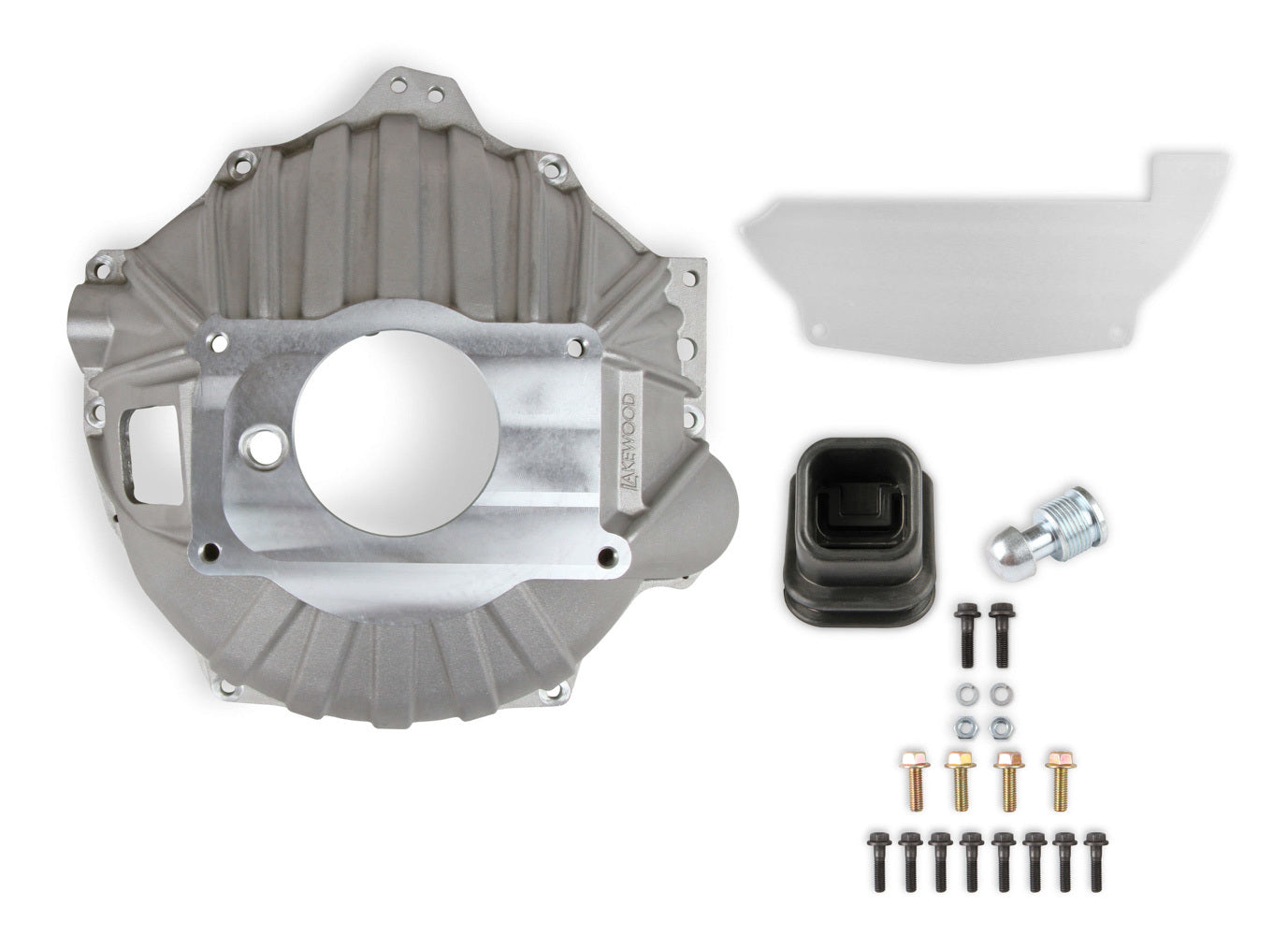

| Description_MKT | The Lakewood cast aluminum bellhousings connect GM LS and Gen V LT engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10, and Tremec TKX or TKO transmissions. The bellhousings can be used on both GM cars and trucks and other manufacturers where swap applications are being installed. These kits come complete with a clutch fork boot, inspection cover, and Grade 8 mounting hardware that connects the bellhousing to both the engine and transmission. |
| Description_MKT | The bellhousing (#LK4000), clutch fork boot (#50351), inspection cover (#50353), and mounting hardware kit (#50369) are also available individually and can be found below under Service Parts. |
| Description_FAB | Factory-like attachment to stock or Holley oil pans (inspection cover included for use with stamped or fabricated oil pans) |
| Description_FAB | Lightweight cast aluminum design similar to the original equipment bellhousings |
| Description_FAB | Lower cost non-SFI rated option for projects that do not require a steel SFI rated unit |
| Description_FAB | Designed For Hydraulic and Mechanical Fork Throwout Bearing Linkage |
| Description_FAB | Bellhousing Depth: 6.45 in |
| Description_FAB | Clutch Fork Opening: 2.125 In X 3.3 In |
| Description_FAB | Transmission Bore Diameter: 4.684 In |
| Description_FAB | Includes Grade 8 Hardware |
| Description_FAB | LK4000 Bellhousing also available separately |
| Description_INV | ALUMINUM BELL HOUSING CHEVROLET LS |
| Description_DES | Lakewood Bellhousing Kit - LS/Gen V LT Engines - TKX and TKO |
| Description_EXT | Fits Tremec TKX and TKO, Muncie, Saginaw, and Borg Warner T10 Transmissions |
| Description_MKT | The Lakewood cast aluminum bellhousings connect GM LS and Gen V LT engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10, and Tremec TKX or TKO transmissions. The bellhousings can be used on both GM cars and trucks and other manufacturers where swap applications are being installed. These kits come complete with a clutch fork boot, inspection cover, and Grade 8 mounting hardware that connects the bellhousing to both the engine and transmission. |
| Description_MKT | The bellhousing (#LK4000), clutch fork boot (#50351), inspection cover (#50353), and mounting hardware kit (#50369) are also available individually and can be found below under Service Parts. |
| Description_FAB | Factory-like attachment to stock or Holley oil pans (inspection cover included for use with stamped or fabricated oil pans) |
| Description_FAB | Lightweight cast aluminum design similar to the original equipment bellhousings |
| Description_FAB | Lower cost non-SFI rated option for projects that do not require a steel SFI rated unit |
| Description_FAB | Designed For Hydraulic and Mechanical Fork Throwout Bearing Linkage |
| Description_FAB | Bellhousing Depth: 6.45 in |
| Description_FAB | Clutch Fork Opening: 2.125 In X 3.3 In |
| Description_FAB | Transmission Bore Diameter: 4.684 In |
| Description_FAB | Includes Grade 8 Hardware |
| Description_FAB | LK4000 Bellhousing also available separately |
