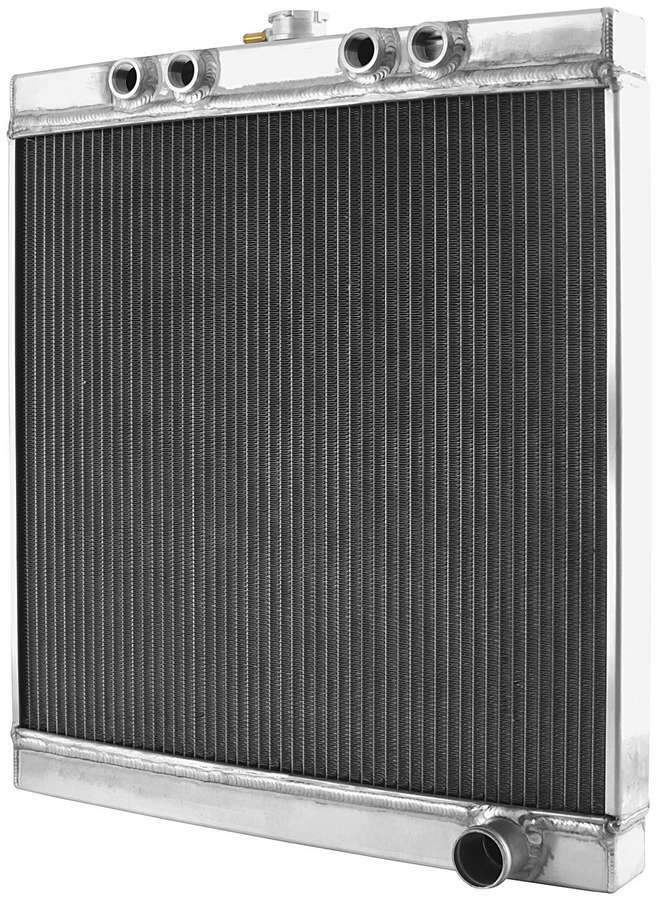

The Allstar Performance Sprint Radiator ALL30028 is a 20 in W x 22 in H x 2 in D aluminum radiator built for sprint car applications. It is a single pass radiator with a top inlet and a passenger side outlet.
The radiator features furnace brazed tanks, a machined filler neck, a 1-1/2 in RH bottom outlet, and four female top outlet ports sized for -10AN O-ring fittings. It weighs approximately 9.7 lbs and uses a smaller diameter radiator cap (such as Allstar ALL30124 or ALL30125), sold separately.
Compatibility
This is a sprint car racing radiator sized by core dimensions (20 in W x 22 in H x 2 in D) rather than by a specific production vehicle. It is intended for sprint car chassis installations.
FAQ
What are the dimensions of the ALL30028 radiator?
The ALL30028 measures 20 in wide x 22 in tall x 2 in deep.
What type of inlet and outlet does the ALL30028 have?
The ALL30028 has a top inlet and a passenger side outlet, plus four female top outlet ports for -10AN O-ring fittings and a 1-1/2 in RH bottom outlet.
Does the ALL30028 include a radiator cap?
No. The ALL30028 uses a smaller diameter radiator cap, such as Allstar ALL30124 or ALL30125, which is sold separately.
How much does the ALL30028 weigh?
The ALL30028 weighs approximately 9.7 lbs.
What material is the ALL30028 made of?
The ALL30028 is constructed of aluminum with furnace brazed tanks and a natural finish.
