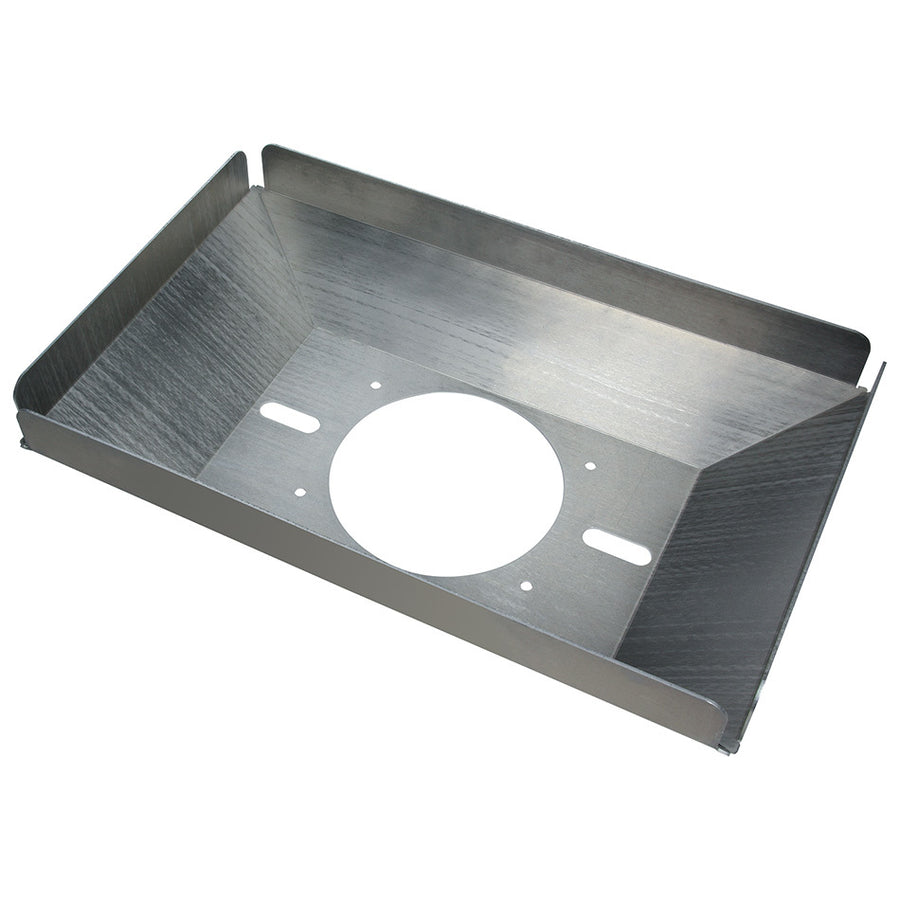

Scoop tray is the lower portion of the scoop or plenum that directs air into the carburetor when used with dragster style scoops. Tray measures 21-5/8 in long x 13-1/2 in wide, raised 3 in, and requires a separate scoop tray mount, which supports the tray above the carburetor and provides a secure mounting point for the scoop.
- Style: Dragster, raised (3 in)
- Length: 21-5/8 in
- Width: 13-1/2 in
- Carburetor flange: Dominator (4500)
- Material: Aluminum, natural finish
Spec Sheet: Allstar Spec Sheet (PDF)
FAQ
What carburetor flange does this tray fit?
It is built with a Dominator flange for 4500-style carburetors.
How much does this tray raise the scoop?
The raised design adds 3 in of height above the carburetor compared to a flat tray.
What are the tray dimensions?
21-5/8 in long by 13-1/2 in wide.
Do I need anything else to mount this tray?
Yes, a separate scoop tray mount is required to support the tray above the carburetor and provide a secure mounting point for the scoop.
What material is the tray made from?
Aluminum with a natural finish.
