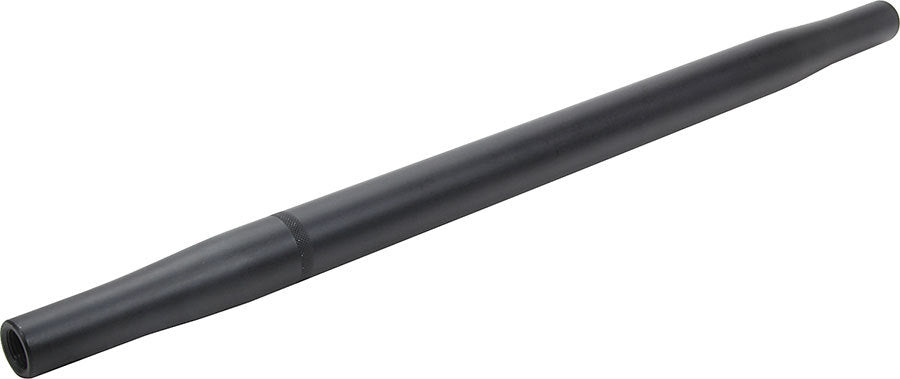

The Allstar Performance Radius Rod ALL56806-215 is a swaged aluminum suspension tube built for radius rod and chassis fabrication applications. It has a 7/8 in outside diameter with a 0.156 in wall thickness and measures 21-1/2 in (21.5 in) overall length. Each end is machined with a 5/8-18 thread, right hand on one end and left hand on the other, for use with a jam nut and rod end in adjustable length setups. The tube is aluminum with a black anodized finish. Sold each.
Spec Sheet: Download PDF
FAQ
What is the outside diameter and wall thickness of this radius rod?
The ALL56806-215 radius rod has a 7/8 in outside diameter and a 0.156 in wall thickness.
What length is this radius rod?
This radius rod measures 21-1/2 in overall length.
What size and direction are the threads on each end?
Each end is machined with a 5/8-18 thread, right hand thread on one end and left hand thread on the other, so the rod can be length-adjusted like a turnbuckle using a jam nut and rod end.
What material and finish is this radius rod?
It is made from aluminum tubing with a black anodized finish.
