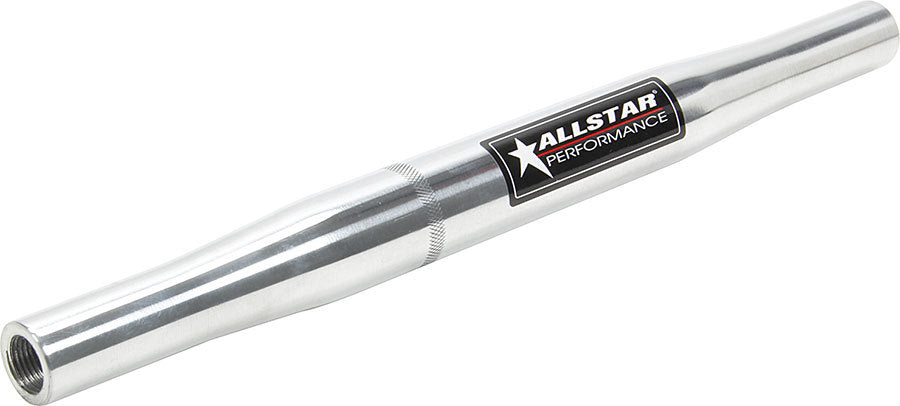

The Allstar Performance Radius Rod ALL56807-13 is a swaged aluminum suspension tube built for radius rod and chassis fabrication applications. It has a 7/8 in outside diameter with a 0.156 in wall thickness and measures 13 in overall length. Each end is machined with a 5/8-18 thread, right hand on one end and left hand on the other, for use with a jam nut and rod end in adjustable length setups. The tube is aluminum with a polished finish. Sold each.
Spec Sheet: Download PDF
FAQ
What is the outside diameter and wall thickness of this radius rod?
The ALL56807-13 radius rod has a 7/8 in outside diameter and a 0.156 in wall thickness.
What length is this radius rod?
This radius rod measures 13 in overall length.
What size and direction are the threads on each end?
Each end is machined with a 5/8-18 thread, right hand thread on one end and left hand thread on the other, so the rod can be length-adjusted like a turnbuckle using a jam nut and rod end.
What material and finish is this radius rod?
It is made from aluminum tubing with a polished finish.
