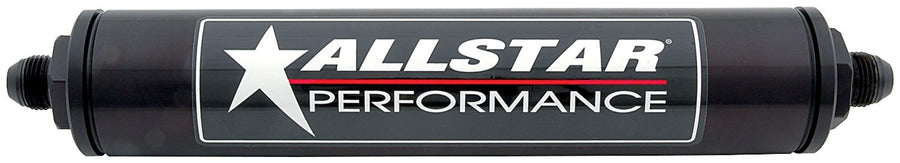

Black anodized, high flow inline fuel filter for race applications. Features -8 AN male inlet and outlet fittings and includes a 10 micron paper filter element. The filter element is 8 inches long and fits in a 9 inch housing. Overall filter length is 12 inches with a 2 inch outside diameter. Mount to chassis tubing along the fuel line using the correct Allstar filter bracket, sold separately.
Spec Sheet: Allstar Spec Sheet
Instruction Sheet: Allstar Instruction Sheet
FAQ
What AN size fittings does ALL40216 use?
-8 AN male inlet and -8 AN male outlet.
What filter element is included?
A 10 micron paper filter element is included.
What are the filter dimensions?
Overall length is 12 inches with a 2 inch outside diameter. The element is 8 inches long and fits in a 9 inch housing.
What bracket is needed to mount it?
An Allstar clamp-on filter bracket sized for the mounting tubing, sold separately.
