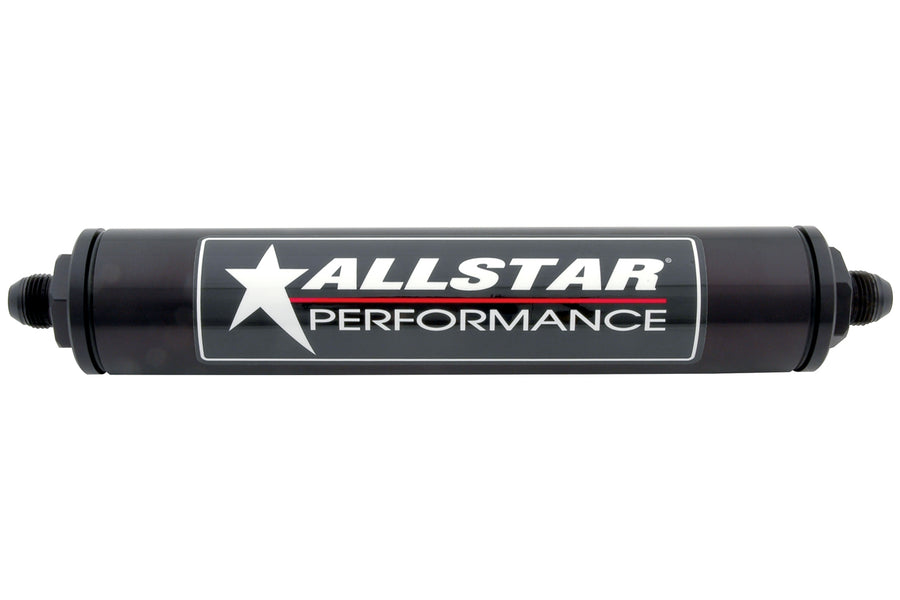

Allstar Performance in-line fuel filter has -6AN male inlet and outlet fittings and a 10 micron paper filter element. The black anodized aluminum housing is 12 inches overall with a 2 inch outside diameter; the element is 8 inches long and fits inside a 9 inch housing. Mounts to chassis tubing along the fuel line using the correct Allstar bracket, sold separately.
Spec Sheet: Allstar Spec Sheet
Instruction Sheet: Allstar Instruction Sheet
FAQ
What size fittings does the ALL40238 fuel filter use?
It has -6AN male inlet and outlet fittings.
What micron rating is the paper element?
The paper element filters down to 10 microns.
What are the housing dimensions?
The filter housing is 12 inches overall length with a 2 inch outside diameter; the element measures 8 inches and fits inside a 9 inch housing.
Is a mounting bracket included?
No, a bracket is not included. Select the correct Allstar bracket separately based on tubing size or panel mount.
Can this filter be used with E-85 or methanol fuel?
The paper element is not specified for E-85 or methanol; Allstar's stainless element filters are compatible with those fuels.
