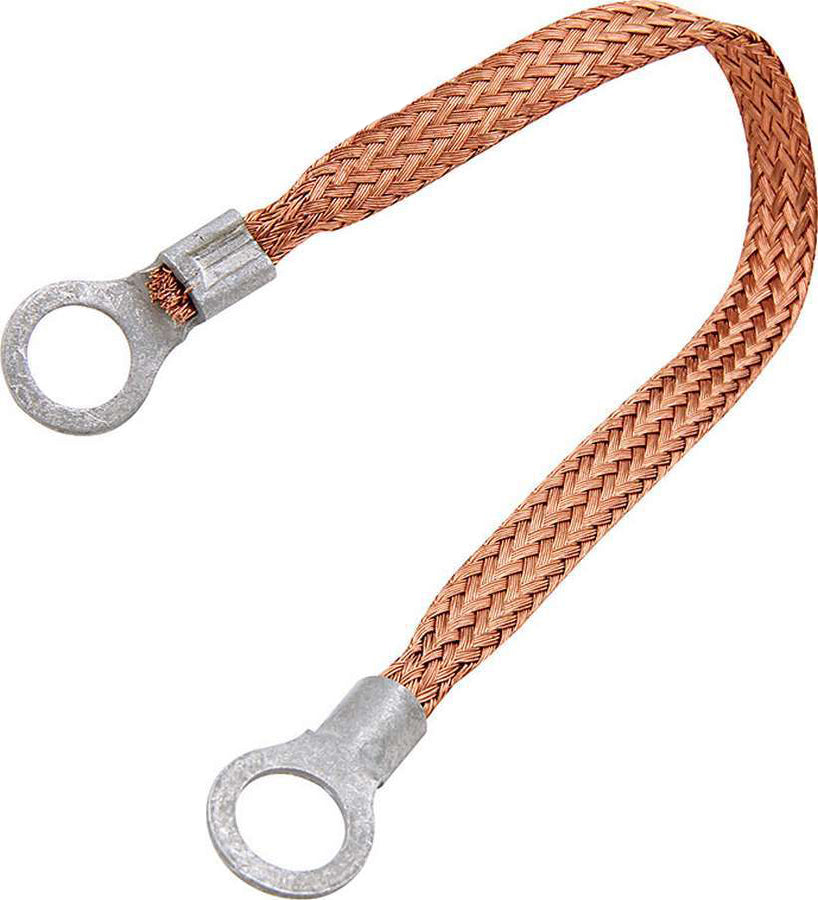

Allstar Performance Copper Ground Strap (12in, ALL76328-12) is a flexible, flat-braided 12 gauge copper ground strap with non-insulated 1/4in ring terminals on each end. It addresses poor ground connections common with OE-style straps and works on 6-volt or 12-volt electrical systems.
- Material: Braided Copper
- Wire Gauge: 12 Gauge
- Width: 5/16 in
- Length: 12 in
- Ring Terminal Size: 1/4 in (both ends)
- Finish: Natural
- Packaging: Sold Each
Spec Sheet: Allstar Spec Sheet
Compatibility
This ground strap is universal grounding hardware for 6-volt or 12-volt automotive and racing electrical systems; it is not vehicle-specific. The ALL76328 series uses 1/4in ring terminals on both ends, the ALL76329 series uses a 1/4in ring terminal on one end and a 3/8in ring terminal on the other, and the ALL76330 series uses 3/8in ring terminals on both ends. Each series is offered in 6in, 9in, 12in, 18in, and 24in lengths to match different mounting distances.
FAQ
What gauge wire does the ALL76328-12 ground strap use?
It uses flexible, flat-braided 12 gauge copper wire.
What size are the ring terminals?
Both ends have non-insulated 1/4in ring terminals.
How long is the ALL76328-12 ground strap?
It measures 12in long and 5/16in wide.
What is this ground strap used for?
It is used to fix poor ground connections on 6-volt or 12-volt automotive and racing electrical systems.
Is a spec sheet available for the ALL76328-12?
Yes, the Allstar spec sheet covering the ground strap series is linked on this page.
