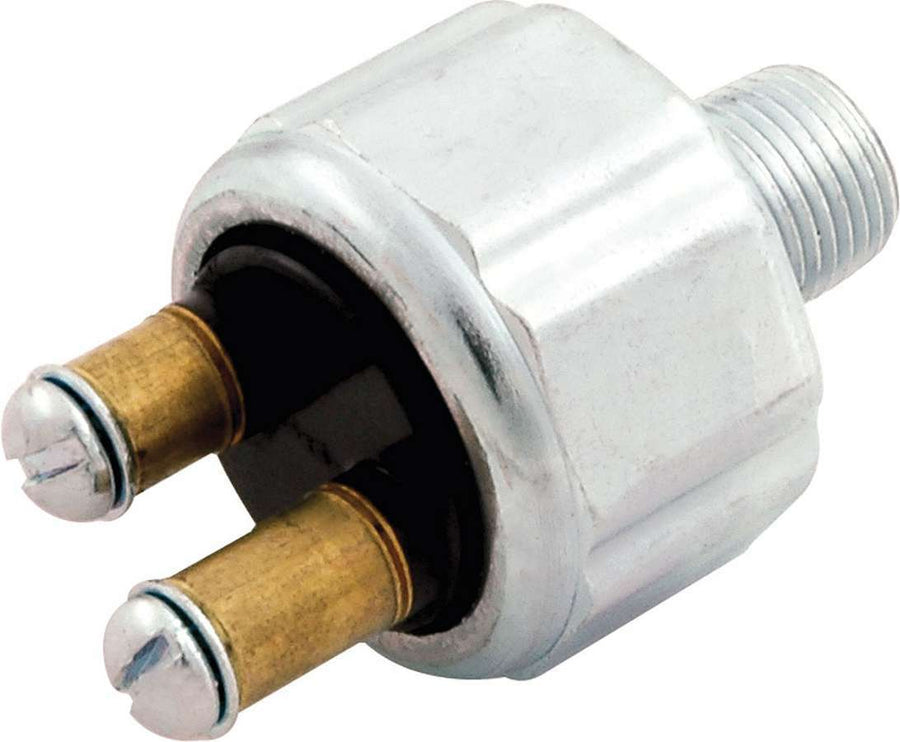

This pressure-type brake light switch plumbs into the brake system and is activated by closing the electrical connection with rising brake pressure (60-120 PSI). It is designed for easy two-wire connection, one "+" supply and the other to power brake lights or a brake light relay, using 6-32 screw terminals instead of bullet connectors. The switch is rated at 4.5 amps and has 1/8"-27 dry seal mounting threads.
Spec Sheet: Allstar Spec Sheet
Instruction Sheet: Allstar Instruction Sheet
Compatibility:
Universal fit. Not vehicle-specific — mounts to the switch panel, dash, chassis, or engine per the application described above.
FAQ
How is this different from ALL76251?
Same pressure switch, but ALL76252 uses 6-32 screw terminals instead of bullet terminals.
At what pressure does the switch activate?
The switch activates at 60-120 PSI of brake pressure.
