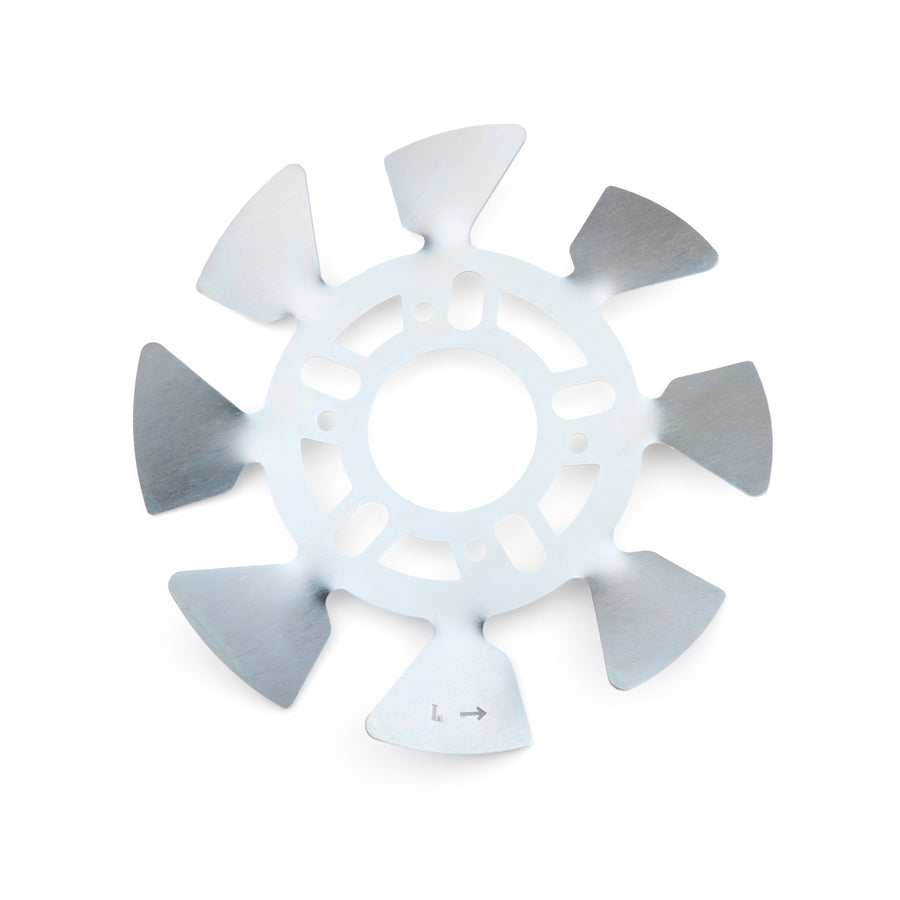

The Allstar Performance Brake Cooling Fan is a hub-mounted fan that fits between the wheel and hub to increase airflow and cooling to the brake assembly. This driver-side fan measures 11.625 inches in diameter, uses a 5x5 inch bolt pattern with 5/8 inch studs, and is made from steel with a zinc oxide finish.
Specifications:
- Mount type: Hub mounted
- Side: Driver side (LH)
- Diameter: 11.625 in
- Bolt pattern: 5 x 5 in
- Stud size: 5/8 in
- Material: Steel, zinc oxide finish
- Sold each
Spec Sheet: Allstar Spec Sheet
Compatibility
Fits hubs using a 5 x 5 inch bolt pattern with 5/8 inch wheel studs. This is universal hub-mount hardware and is not vehicle-specific; confirm bolt pattern and stud size match your hub before ordering. This is the driver-side (LH) fan; the passenger-side counterpart is sold separately as ALL42171.
FAQ
What side does this fan fit?
This is the driver side (LH) fan. The passenger side (RH) counterpart is sold separately as ALL42171.
What bolt pattern does this fan use?
This fan uses a 5 x 5 inch bolt pattern with 5/8 inch studs.
What is this fan made from?
This fan is made from steel with a zinc oxide finish.
Is an aluminum version of this fan available?
Yes, an aluminum version with a natural finish and the same 5 x 5 bolt pattern is available as ALL42174 (driver side).
How does a hub-mounted brake cooling fan work?
The fan mounts between the wheel and hub and rotates with the wheel, drawing air across the brake rotor and caliper to help dissipate heat during racing use.
