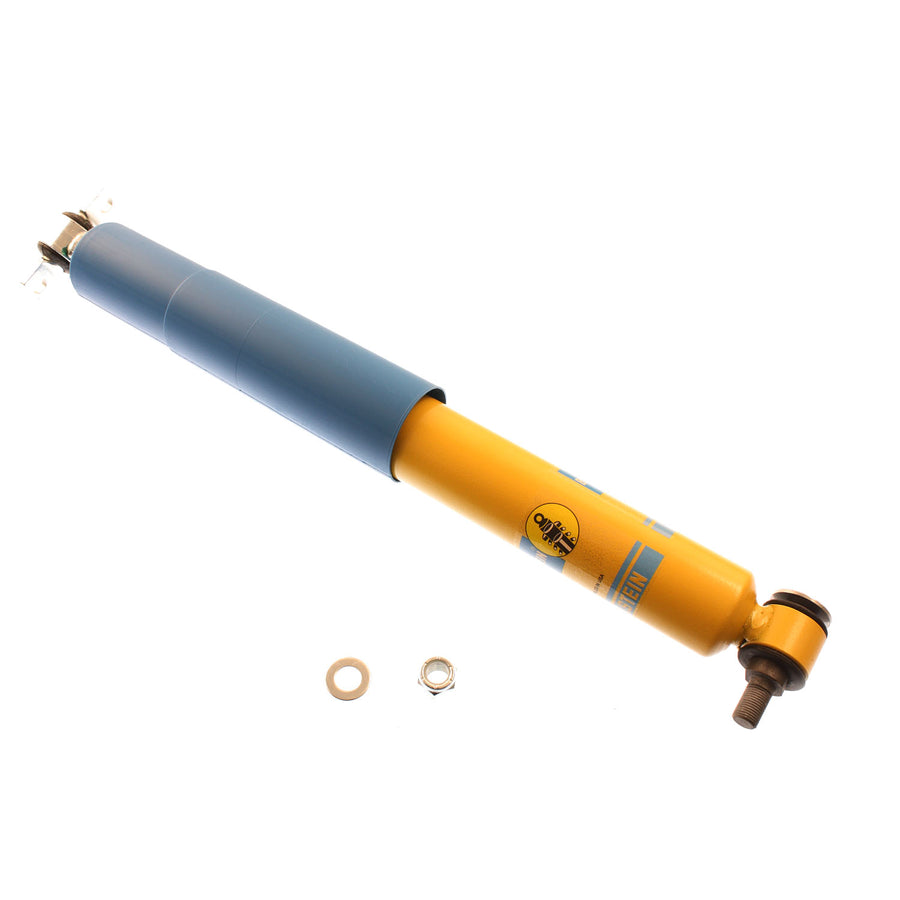

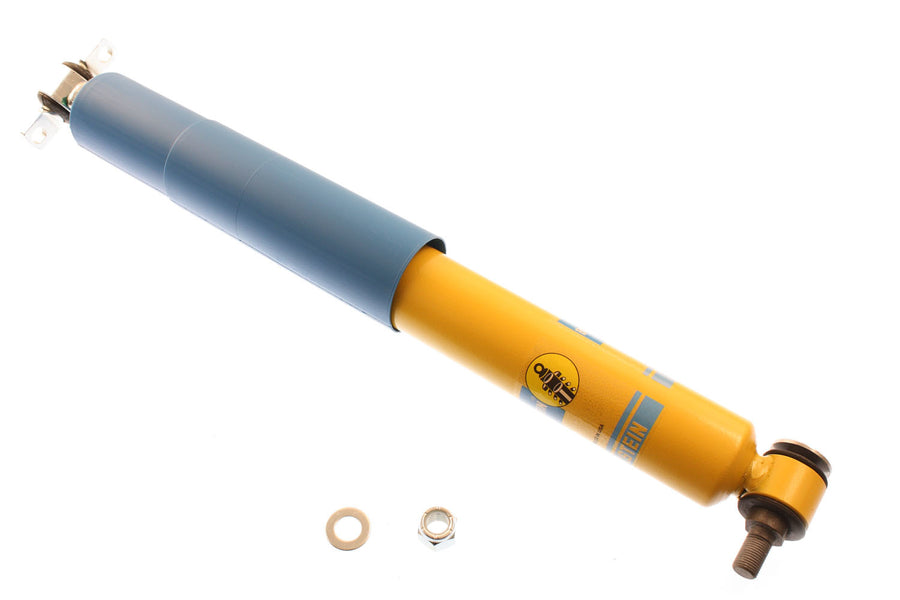

Bilstein AK Series - Suspension Shock Absorber F4-BE5-F134-M0
Specifications:
| Boot Included | Blue Straight |
| Upper Mount Type | Bar Pin |
| Piston Type | Digressive |
| Rebound @0.26m/s | 285 |
| PartType | Shocks / Struts |
| Segment | Motorsports |
| Adjustable Damping | Non-Adjustable |
| Internal Design | Monotube |
| Series | AK Series |
| Compression @0.26m/s | 595 |
| Extended Length (MM) | 515.0 |
| Collapsed Length (MM) | 333.0 |
| Collapsed Length (IN) | 13.11 |
| Body Material | Steel |
| Body Design | Stock Mount Smooth Body |
| Body Diameter (ID) | 46mm |
| Prop 65 (Y/N) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Title | Bilstein Shock Absorbers |
| Lower Mount Type | Cantilever |
| Finish | Yellow Paint |
| Extended Length (IN) | 20.28 |
| Spring Seat Included | No |
| Description_FAB | Direct fit (OE) mounting design |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | AK Series - Suspension Shock Absorber |
| Description_EXT | 46mm Monotube Shock Absorber |
| Description_INV | GM G/H body Motorsport rear AK2040COB R |
| Description_LAB | AK Series - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_MKT | Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements. |
| Description_FAB | Direct fit (OE) mounting design |
| Description_FAB | Monotube design ensures consistent, fade-free performance in all conditions |
