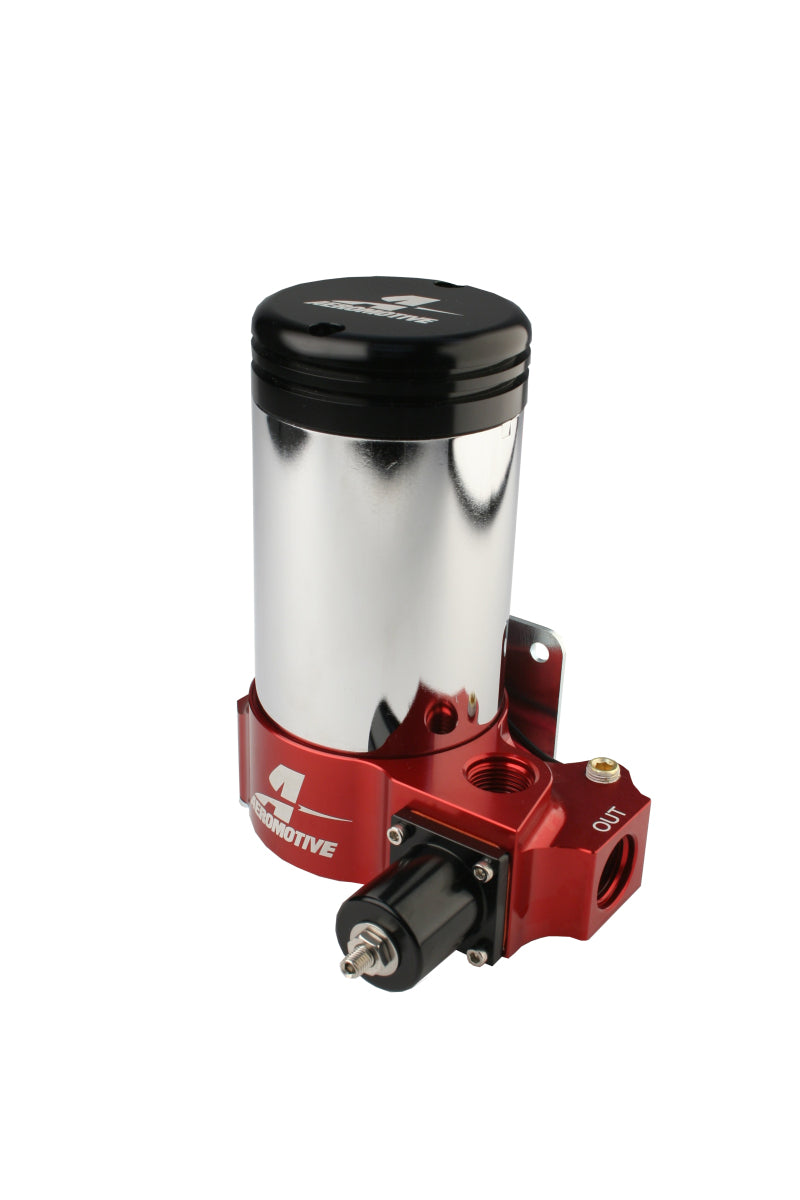

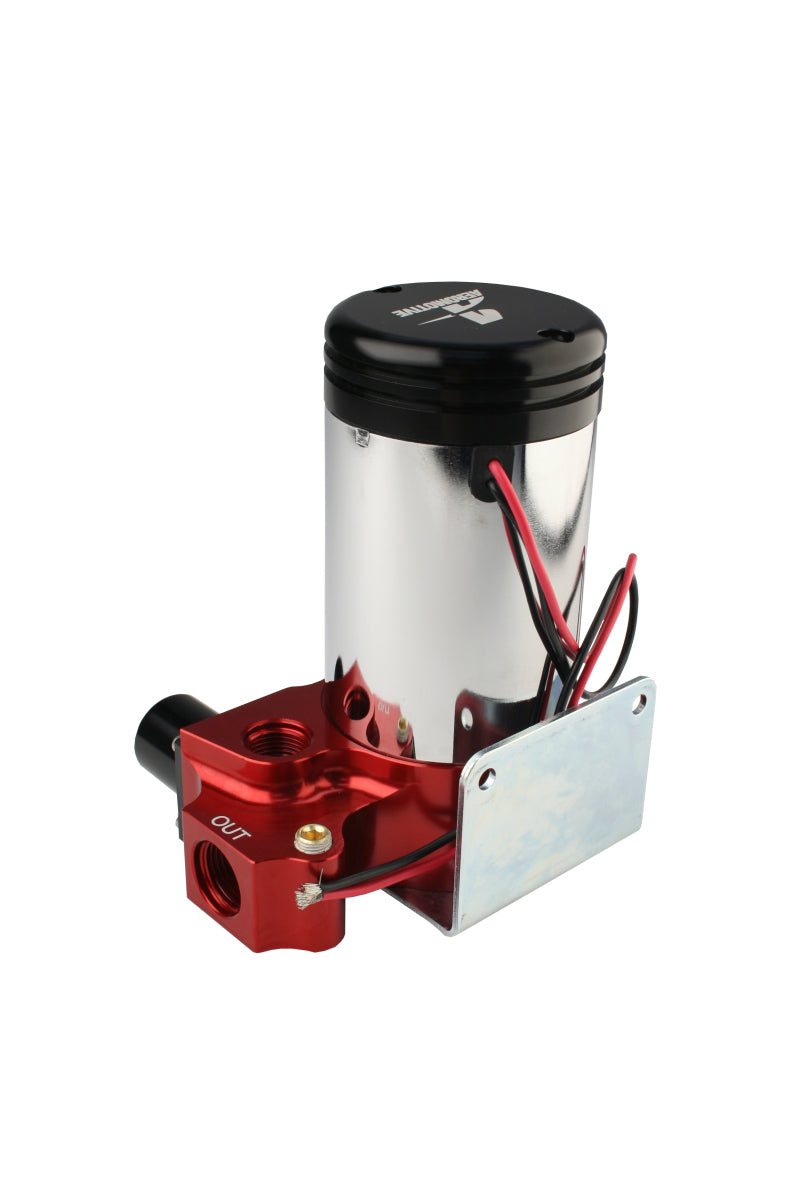

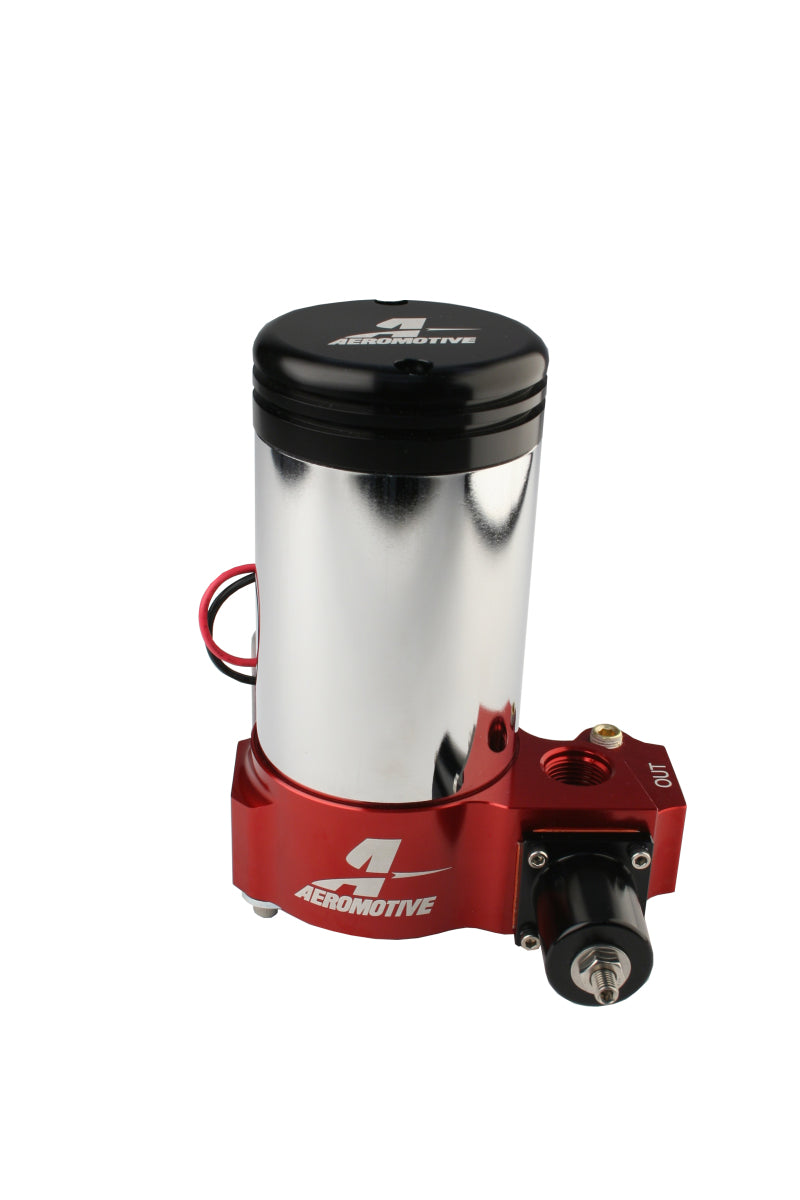

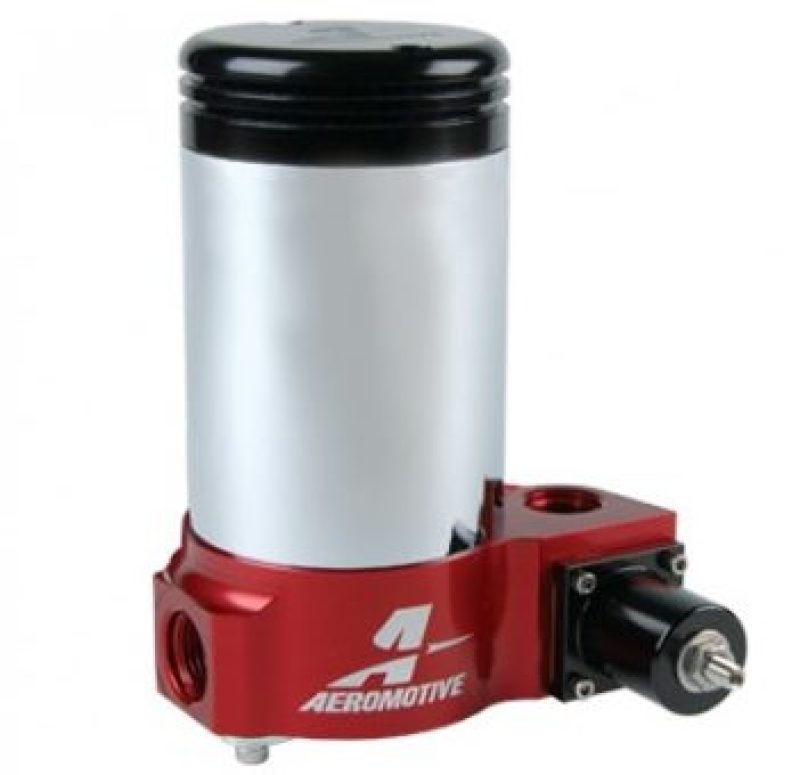

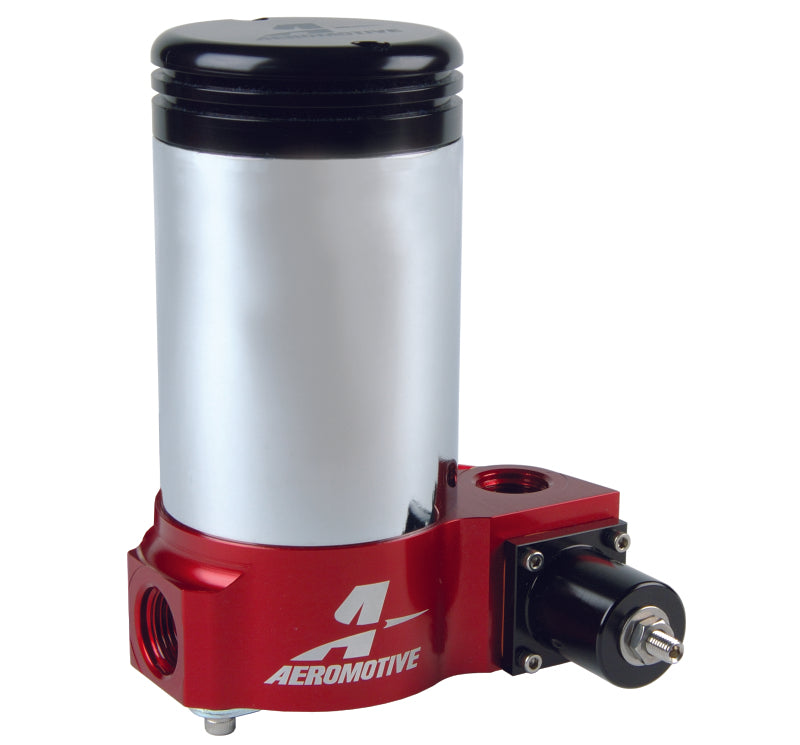

The Aeromotive A2000 is a big carbureted drag race fuel pump built for everything from Stock Eliminator to Pro Mod. It flows enough fuel to support the quickest nitrous Pro Mods on gasoline and is the only fuel pump in its class to use a true diaphragm-controlled adjustable bypass valve integral to the pump, which dampens pressure spikes for smoother, more consistent flow and more repeatable E.T.s. A high-torque, low-RPM motor delivers more than 350 GPH of free flow while drawing less current than other pumps in its class.

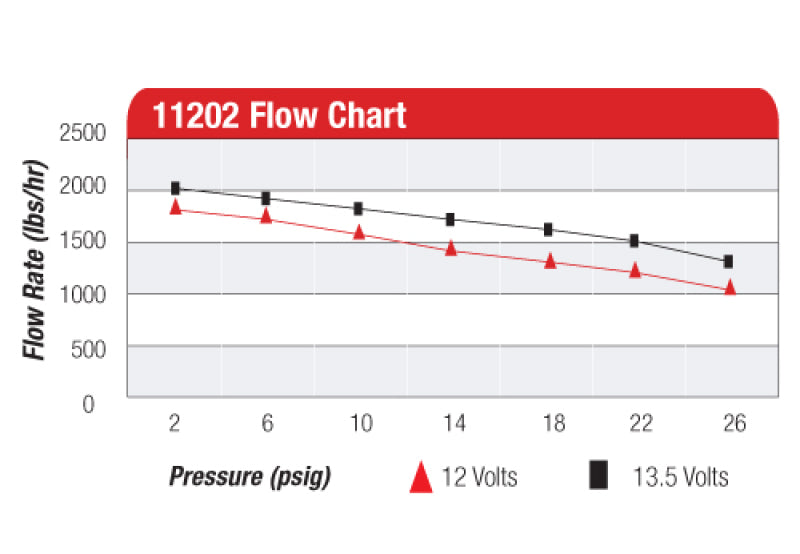

- Free flow: More than 350 GPH
- Bypass: Integral diaphragm-controlled adjustable bypass valve

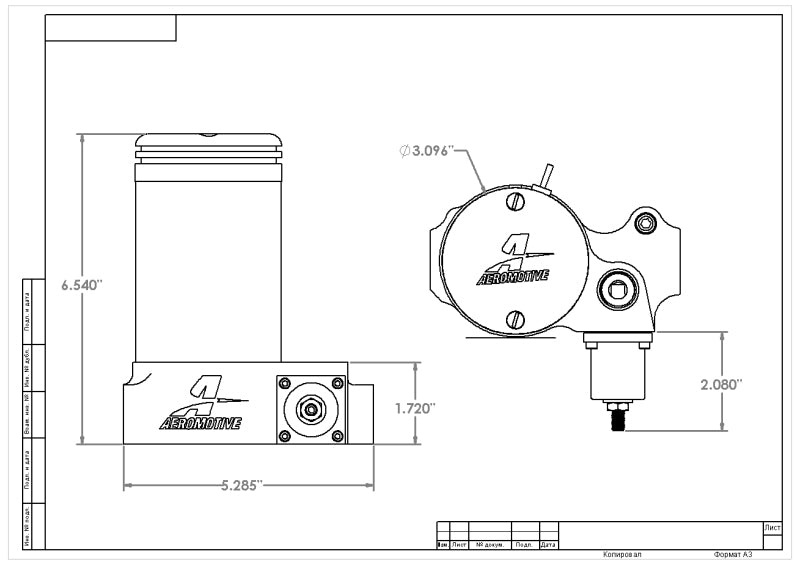

- Inlet / outlet ports: ORB-10 inlet and outlet
- Return port: ORB-8
- Gauge port: 1/8 in NPT
- Fuel compatibility: Alcohol compatible
- Application: Carbureted drag race, Stock Eliminator to Pro Mod
FAQ
How much fuel does the A2000 flow?
It delivers more than 350 GPH of free flow, enough to support the quickest nitrous Pro Mods on gasoline.
What makes the A2000 bypass different?
It uses a true diaphragm-controlled adjustable bypass valve integral to the pump, which dampens pressure spikes for smoother flow and more consistent E.T.s than poppet designs.
What are the port sizes?
ORB-10 inlet and outlet ports, an ORB-8 return port, and a 1/8 in NPT gauge port.
Is the A2000 alcohol compatible?
Yes. The A2000 is alcohol compatible and uses a proprietary seal design to eliminate leakage.
