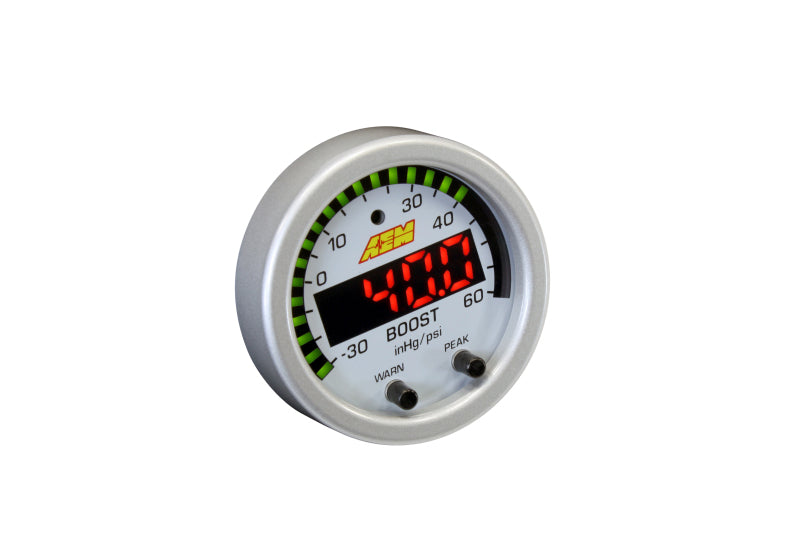

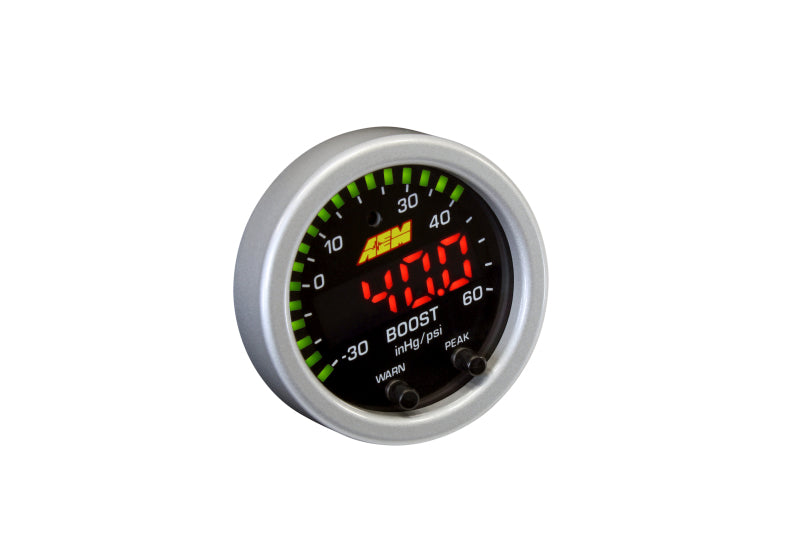

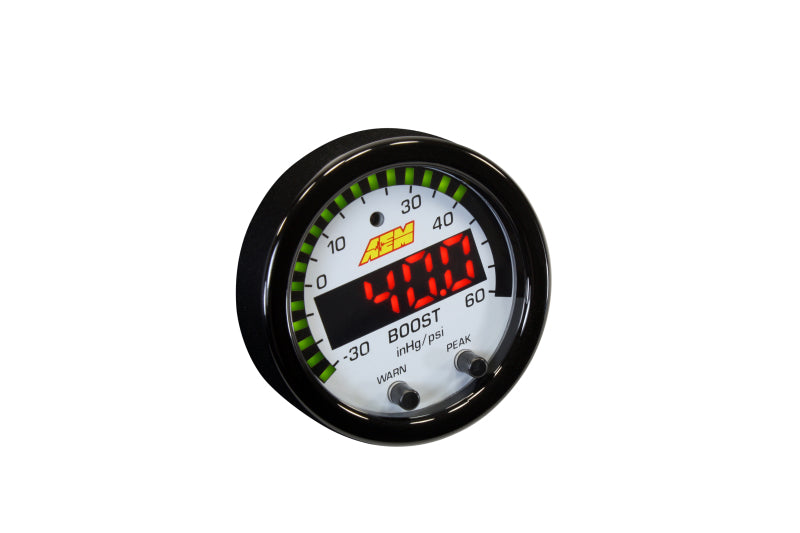

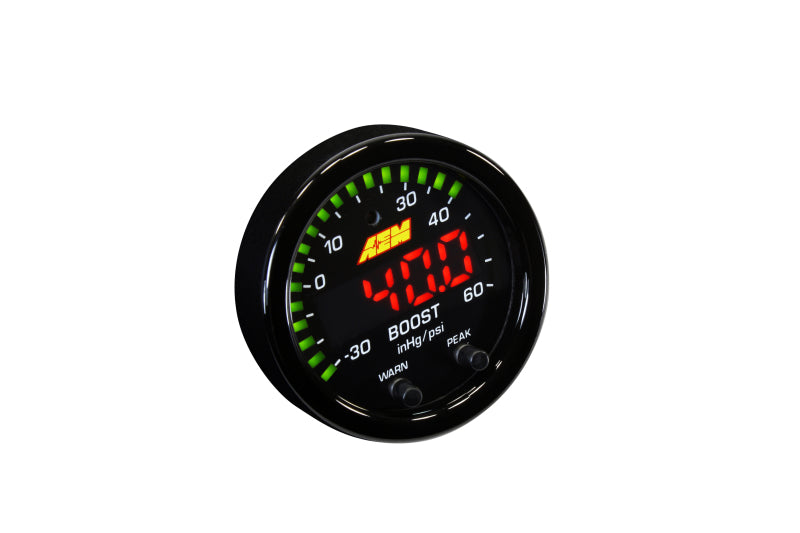

AEM X-Series Digital Boost Pressure Gauges include technological features that make them easier to use, including two faceplate buttons for peak/recall, standard or metric center LED readout with a sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CANbus-enabled so they can be daisy-chained together for use with the AEM Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or a 3rd party EMS/logger that accepts AEMnet, and they also output 0-5V analog for data loggers and engine management systems.
WarrantyInstallation Instructions
Specifications:

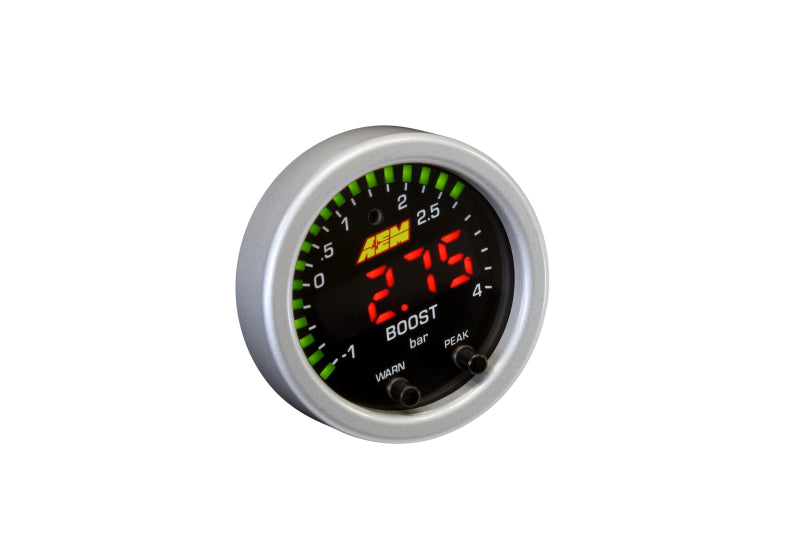

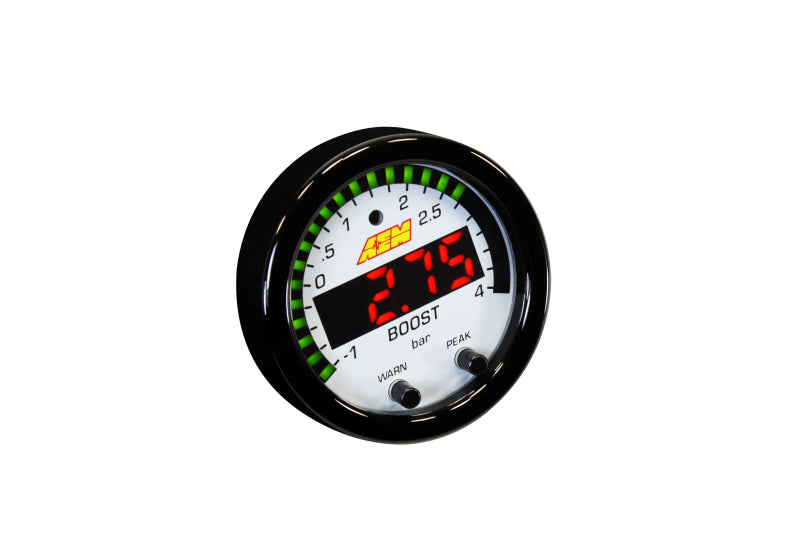

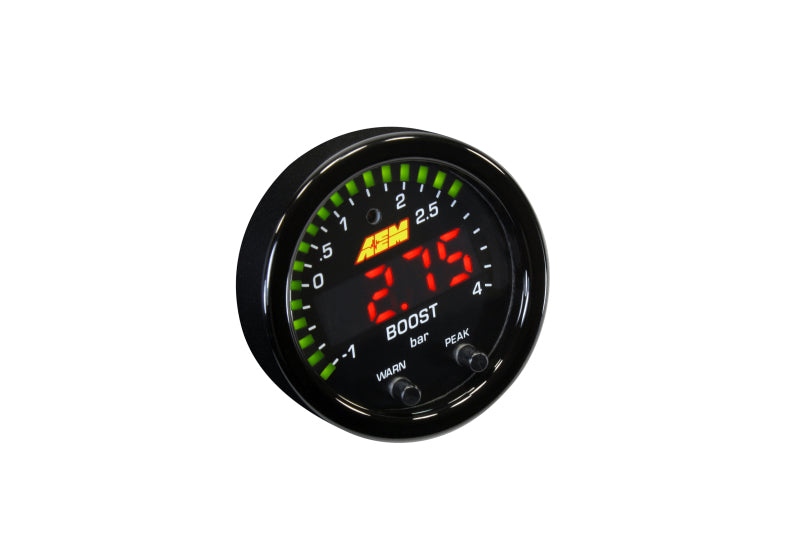

- Reads -30 inHg to 60 PSI (-1 to 4 BAR), user selectable standard or metric display
- AEMnet CANbus-enabled and 0-5V analog outputs for EMS or data logger integration
- 52mm (2-1/16") gauge diameter, 0.825" overall gauge depth, 0.200" cup depth
- 24 green outer LEDs with a center LED 87% larger than original AEM gauges
- Auto dimming sensor and positive locking connectors
- Peak/Recall and user-selectable threshold warnings via face buttons

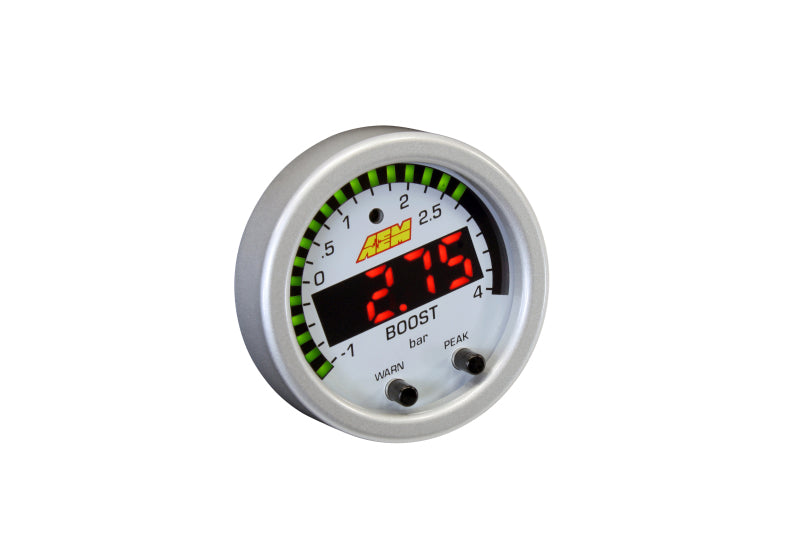

- Optional silver bezel/white faceplate accessory kit available separately
- Part Number: 30-0308
FAQ
What boost range does this gauge read?
It reads from -30 inHg vacuum to 60 PSI boost (-1 to 4 BAR), selectable in standard or metric units.
Can this gauge be daisy-chained with other AEM devices?
Yes, it is AEMnet CANbus-enabled and can be daisy-chained with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or a 3rd party AEMnet-compatible EMS/logger.
Does it have peak/recall functionality?
Yes, peak/recall and user-selectable threshold warnings are accessed via the gauge face buttons.
