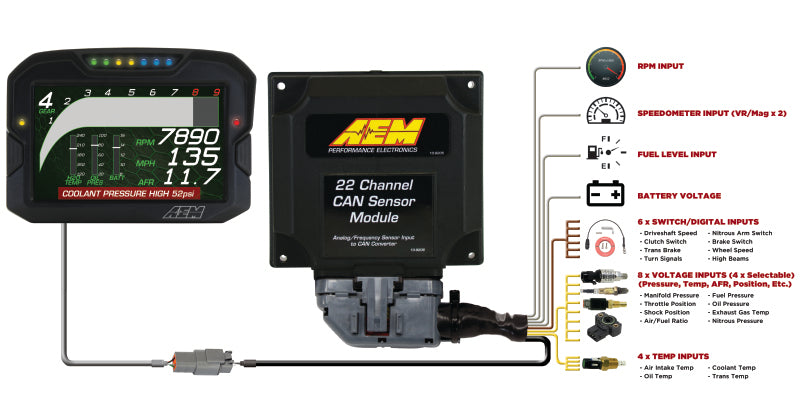

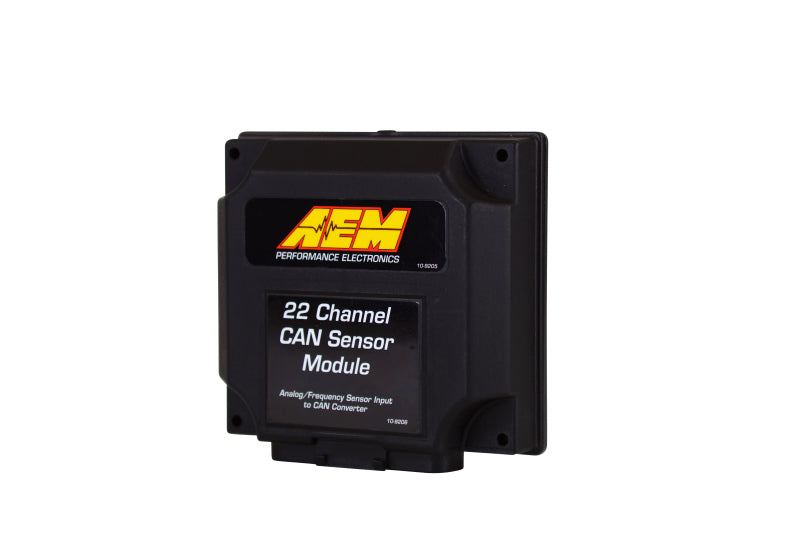

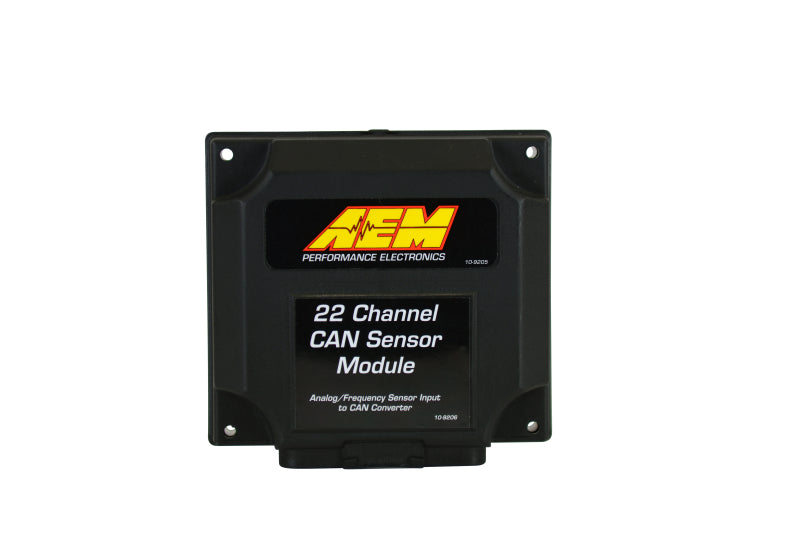

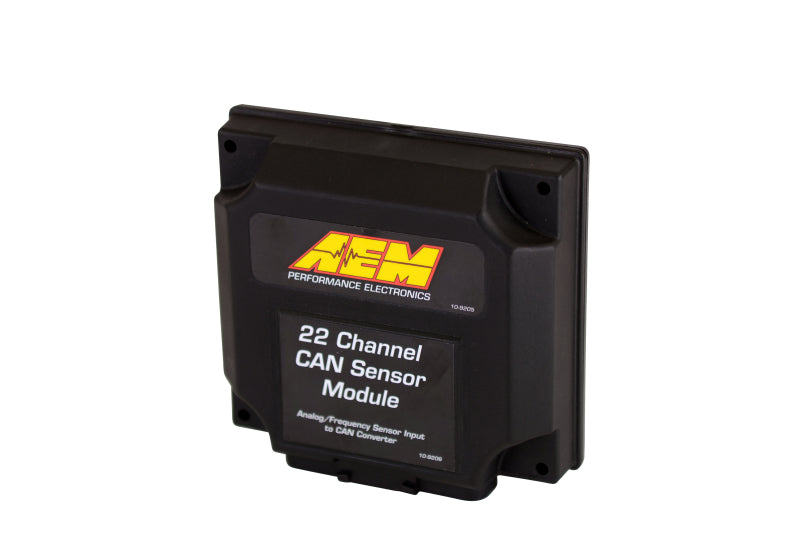

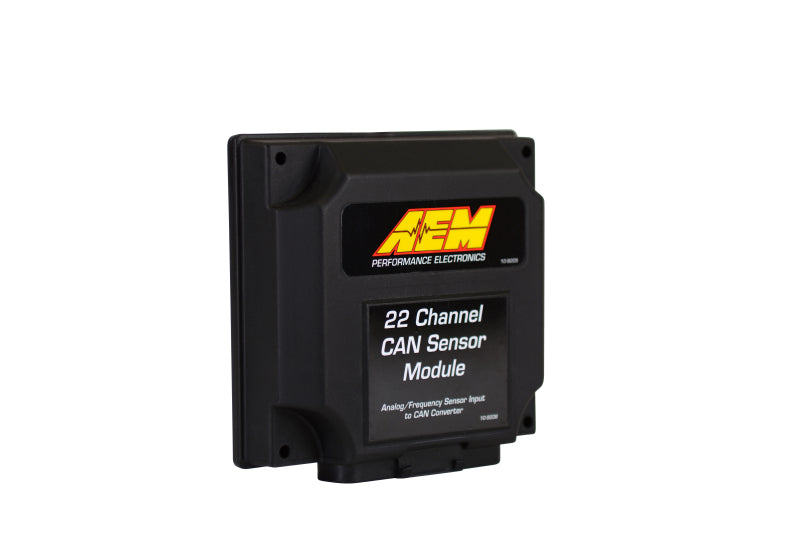

AEM's 22-Channel CAN Sensor Module converts analog, digital, and frequency inputs into an AEMnet CAN bus signal for display on CD-5 Carbon and CD-7 Digital Dashes. It gives carbureted vehicle owners a way to add a CD Dash, and lets users with existing CAN-based devices expand the number of channels available for viewing and logging (logging requires CD-5L Carbon or CD-7L dashes).
Specifications:
- Compatible with CD-5 Carbon and CD-7 Dashes only
- Six digital inputs, active low, protected to ~18V, frequency/duty cycle/switch
- Four user-configurable analog inputs (0-5V, thermistor, or RTD)
- Two VR pair frequency inputs (crank, wheel, or driveshaft speed)
- Four dedicated 0-5V analog inputs and four thermistor inputs
- One dedicated fuel level input (0-250 ohm) and one tach input
- Daisy-chain two modules together for additional channels
- IP65-rated, dust-tight and water-resistant enclosure
- Jumper-selectable CAN bus speed and terminating resistor

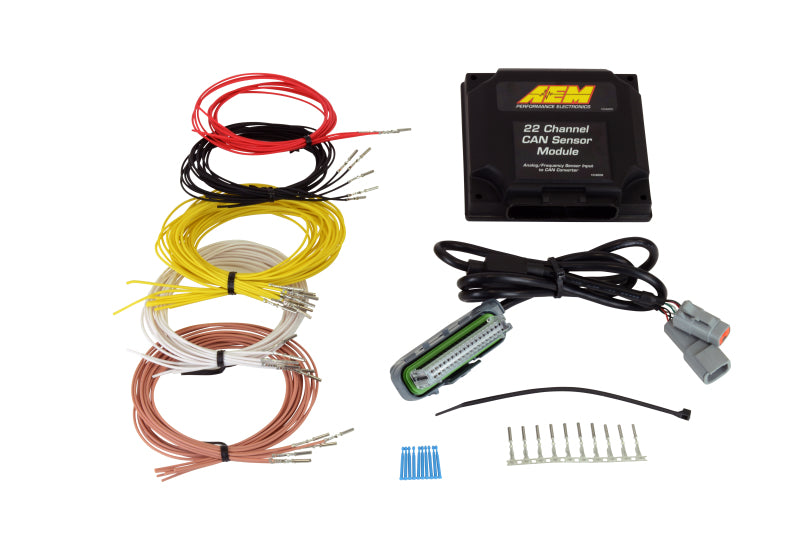

- Wiring harness with 36-inch flying leads included
- Part Number: 30-2212
Installation Instructions
FAQ
What dashes is the 30-2212 compatible with?
The 22-Channel CAN Sensor Module works with CD-5 Carbon and CD-7 Digital Dashes only; it is not compatible with AQ-1 Data Loggers, Series 2, or Infinity ECUs.
Can this module be used on a carbureted vehicle?
Yes, this module is ideal for carbureted vehicles that want to add a CD Dash display since it generates the CAN channels the dash needs.
Can multiple modules be combined for more channels?
Yes, two 22-Channel CAN Sensor Modules can be daisy-chained together to provide additional input channels.
