The Derale 16759 is an adjustable electric fan control kit that lets you set the fan turn-on temperature anywhere from 150°F to 240°F, with turn-off preset 10 degrees below the turn-on point. It controls up to two fans at a total maximum draw of 25 amps through a heavy-duty 40/60 amp relay. A push-in radiator fin probe with thermostat sensor reads coolant temperature, and an A/C override circuit runs the fans when the air conditioning is on.
Specifications:
- Type: adjustable electric fan controller
- Turn-on range: adjustable 150°F to 240°F (turn-off 10°F below turn-on)
- Amp rating: up to 25 A, controls up to 2 fans
- Relay: heavy-duty 40/60 amp relay harness
- Probe: push-in radiator fin probe with thermostat sensor

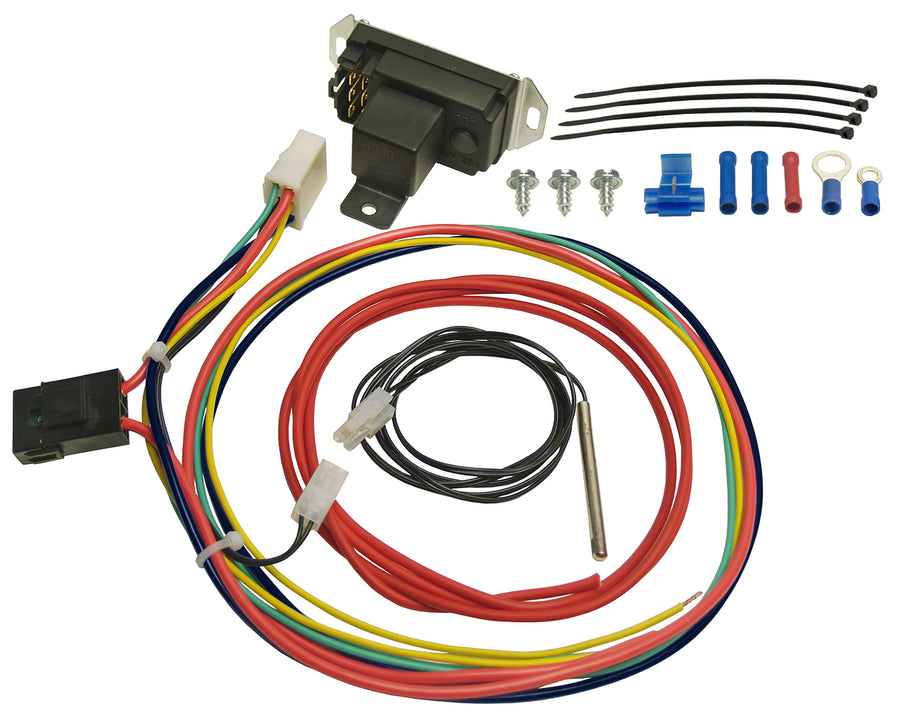

- Included: probe, relay wire harness, connectors, A/C override
- Note: not compatible with Dodge Viper, Ford Taurus, Ford Contour, or Lincoln Mark VIII OE 2-speed fans
- Part number: 16759
FAQ
What does the Derale 16759 controller do?
It turns up to two cooling fans on and off at a temperature you set between 150°F and 240°F.
Is the temperature adjustable?
Yes, the turn-on point adjusts from 150°F to 240°F, with turn-off 10 degrees below that.
How many fans and how much current can it handle?
It controls up to two fans at a total of 25 amps through a 40/60 amp relay.

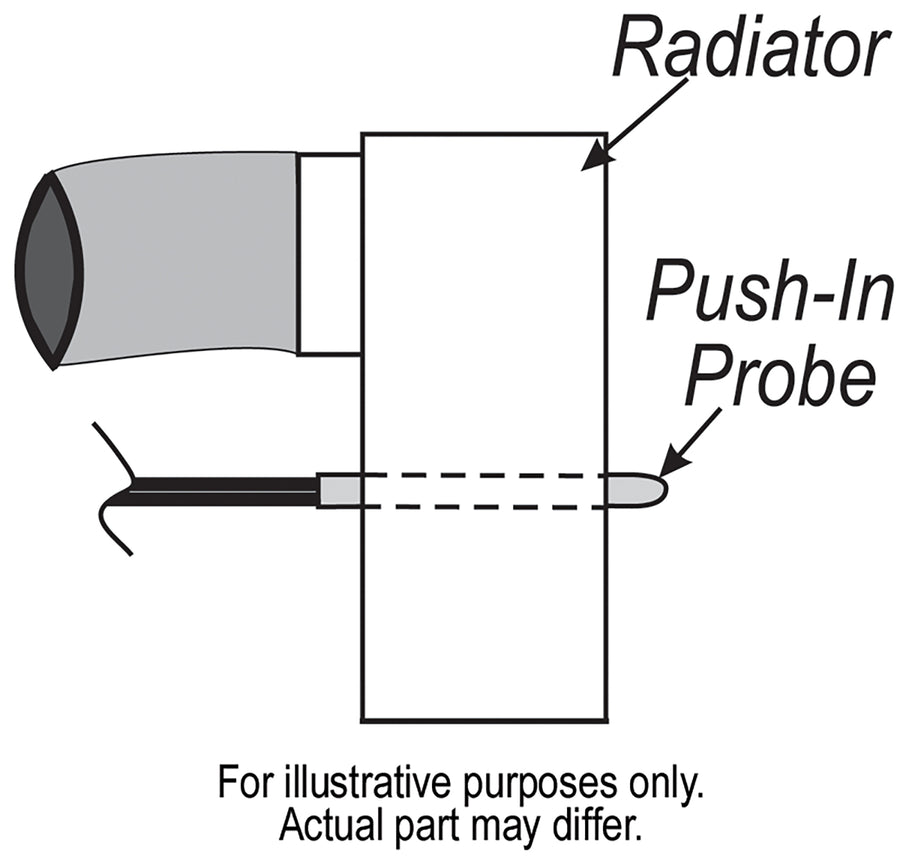

How does the probe mount?
It uses a push-in radiator fin probe that slides between the radiator fins.
