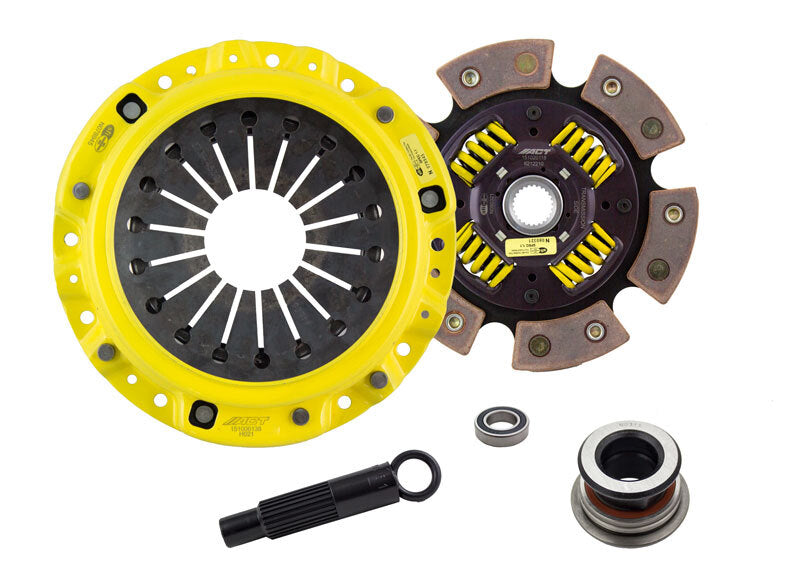

The HS2-HDG6 kit pairs ACT's most popular Heavy Duty pressure plate with a 6-pad, spring-centered race disc for the Honda S2000. The Heavy Duty pressure plate uses ACT's exclusive diaphragm design, four-stage heat treating, and precision cover stampings for consistent clamp load. The 6-pad race disc uses spring-center construction to properly damp torsional vibration and resist failure under harsh conditions; spring retainers use wraparound windows and thicker stampings for added strength. Engagement is firmer than a street disc, but shifting is faster, and the 6-pad disc is recommended for larger clutch sizes that need to absorb more heat.
Warranty | Installation Instructions
Specifications
- Pressure Plate: ACT Heavy Duty (four-stage heat-treated diaphragm design, precision cover stampings)
- Disc: 6-Pad Spring-Centered Race Disc
- Balance: Computer spin balanced to within .25 oz-in
- Warranty: 12-Month ACT "Excellence in Performance" Limited Warranty
- Part Number: ACTHS2-HDG6
Vehicle Applications
Confirmed fitment, listed by individual model year:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2000 | Honda | S2000 | Base |
| 2001 | Honda | S2000 | Base |
| 2002 | Honda | S2000 | Base |
| 2003 | Honda | S2000 | Base |
| 2004 | Honda | S2000 | Base |
| 2005 | Honda | S2000 | Base |
| 2006 | Honda | S2000 | Base |
| 2007 | Honda | S2000 | Base |
| 2008 | Honda | S2000 | Base |
| 2009 | Honda | S2000 | Base |
| 2008 | Honda | S2000 | CR |
| 2009 | Honda | S2000 | CR |
California Prop 65 Warning: This product can expose you to chemicals including carbon black, glass wool fibers, and silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Are ACT clutch kits balanced?
Yes. Every ACT clutch assembly is computer spin-balanced to within .25 oz-in, tighter than the .50 oz-in typical of stock production clutches, for smoother operation across the RPM range.
Will this clutch increase pedal effort?
ACT pressure plates are engineered for higher torque capacity, so pedal effort typically increases 15-40% with a Heavy Duty pressure plate and 50-80% with an Xtreme pressure plate compared to stock, depending on the application.
Does this clutch need a break-in period?
Organic street discs should be broken in for 300-500 miles of mild, stop-and-go driving before spirited use. Race discs generally only need a few hard slips to lap the surfaces before normal use. Avoid overheating the clutch during break-in, as this can glaze the friction surfaces.
Is this clutch kit repairable or rebuildable?
In some cases a rebuild or repair may be possible after inspection; contact ACT's technical department for guidance, and use a qualified clutch specialist due to the kit's specialized components.
