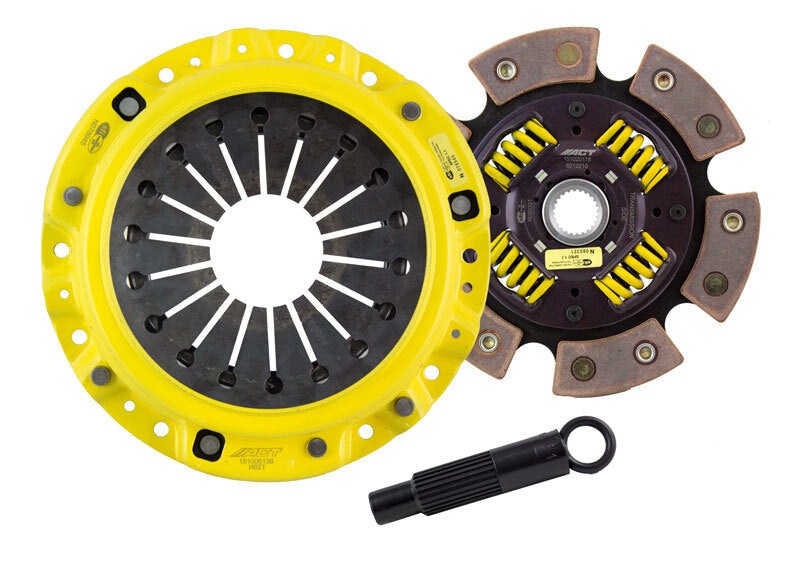

The HS1-HDG6 kit pairs ACT's most popular Heavy Duty pressure plate with a 6-pad, spring-centered race disc. The Heavy Duty pressure plate uses ACT's exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life; every diaphragm goes through a four-stage heat-treating process, and cover stampings are precision-made for rigidity and consistency. The 6-pad, spring-centered race disc damps torsional vibration and resists failure under hard use, with wraparound spring windows and thicker retainer stampings for added strength. Engagement is firmer than a street disc, but shifts are quicker, and the larger pad design helps the disc absorb more heat.
WarrantyInstallation Instructions
- Backed by ACT's one-year "Excellence in Performance" warranty
Specifications
- Pressure Plate: ACT Heavy Duty, four-stage heat-treated diaphragm, precision cover stamping
- Disc: 6-pad spring-centered race disc
- Recommended Use: Race and aggressive street driving; recommended for larger clutch sizes needing to absorb more heat
- Engagement: Firmer engagement, faster shifting than a street disc
- Part Number: HS1-HDG6
Vehicle Applications
| Year | Make | Model | Trim |
|---|---|---|---|
| 2000 | Honda | S2000 | Base |
| 2001 | Honda | S2000 | Base |
| 2002 | Honda | S2000 | Base |
| 2003 | Honda | S2000 | Base |
| 2004 | Honda | S2000 | Base |
| 2005 | Honda | S2000 | Base |
| 2006 | Honda | S2000 | Base |
| 2007 | Honda | S2000 | Base |
| 2008 | Honda | S2000 | Base |
| 2009 | Honda | S2000 | Base |
| 2008 | Honda | S2000 | CR |
| 2009 | Honda | S2000 | CR |
FAQ
What does HD/Race Sprung 6 Pad mean?
It refers to the pairing in this kit: an ACT Heavy Duty pressure plate matched to a 6-pad, spring-centered race disc for higher clamp load and quicker shifting than a stock or street-disc setup.
Is this kit streetable?
It can be driven on the street, but engagement is firmer than a street disc; it suits drivers who want faster shifting and more heat capacity and can tolerate more driveline feel.
Does this kit fit the S2000 CR?
Yes, HS1-HDG6 covers both the standard S2000 (2000-2009) and the S2000 CR (2008-2009).
What's included in the kit?
The kit includes the ACT Heavy Duty pressure plate and the 6-pad, spring-centered race disc sized for this application.
