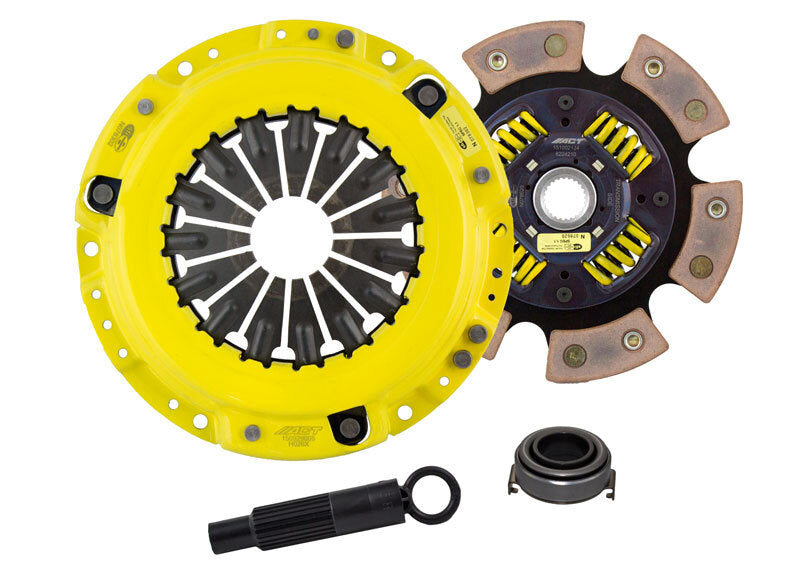

The HA3-XTG6 kit pairs an ACT Xtreme pressure plate with a 6-pad spring-centered race disc for drivers who want maximum clamping power. The Xtreme pressure plate uses ACT's exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life; every diaphragm goes through a four-stage heat-treating process, and the cover stampings are precision-made for rigidity and consistency. The 6-pad spring-centered race disc uses a spring-center construction to damp torsional vibration and resist failure under hard use, with wraparound spring windows and thicker retainer stampings for added strength. Engagement is firmer than a street disc, but shifts are quicker, and the larger pad design helps the disc absorb more heat.
WarrantyInstallation Instructions
- Backed by ACT's one-year "Excellence in Performance" warranty
Specifications
- Pressure Plate: ACT Xtreme, four-stage heat-treated diaphragm, precision cover stamping
- Disc: 6-pad spring-centered race disc
- Recommended Use: Race and aggressive street driving; recommended for larger clutch sizes needing to absorb more heat
- Engagement: Firmer engagement, faster shifting than a street disc
- Part Number: HA3-XTG6
Vehicle Applications
| Year | Make | Model | Trim |
|---|---|---|---|
| 1997 | Acura | CL | Base |
| 1998 | Acura | CL | Base |
| 1997 | Acura | CL | Premium |
| 1998 | Acura | CL | Premium |
| 1999 | Acura | CL | Premium |
| 1990 | Honda | Accord | DX |
| 1991 | Honda | Accord | DX |
| 1992 | Honda | Accord | DX |
| 1993 | Honda | Accord | DX |
| 1994 | Honda | Accord | DX |
| 1995 | Honda | Accord | DX |
| 1996 | Honda | Accord | DX |
| 1997 | Honda | Accord | DX |
| 1998 | Honda | Accord | DX |
| 1999 | Honda | Accord | DX |
| 2000 | Honda | Accord | DX |
| 2001 | Honda | Accord | DX |
| 2002 | Honda | Accord | DX |
| 1990 | Honda | Accord | EX |
| 1991 | Honda | Accord | EX |
| 1992 | Honda | Accord | EX |
| 1993 | Honda | Accord | EX |
| 1994 | Honda | Accord | EX |
| 1995 | Honda | Accord | EX |
| 1996 | Honda | Accord | EX |
| 1997 | Honda | Accord | EX |
| 1998 | Honda | Accord | EX |
| 1999 | Honda | Accord | EX |
| 2000 | Honda | Accord | EX |
| 2001 | Honda | Accord | EX |
| 2002 | Honda | Accord | EX |
| 1990 | Honda | Accord | LX |
| 1991 | Honda | Accord | LX |
| 1992 | Honda | Accord | LX |
| 1993 | Honda | Accord | LX |
| 1994 | Honda | Accord | LX |
| 1995 | Honda | Accord | LX |
| 1996 | Honda | Accord | LX |
| 1997 | Honda | Accord | LX |
| 1998 | Honda | Accord | LX |
| 1999 | Honda | Accord | LX |
| 2000 | Honda | Accord | LX |
| 2001 | Honda | Accord | LX |
| 2002 | Honda | Accord | LX |
| 1991 | Honda | Accord | SE |
| 1997 | Honda | Prelude | Base |
| 1998 | Honda | Prelude | Base |
| 1999 | Honda | Prelude | Base |
| 2000 | Honda | Prelude | Base |
| 2001 | Honda | Prelude | Base |
| 1992 | Honda | Prelude | S |
| 1993 | Honda | Prelude | S |
| 1994 | Honda | Prelude | S |
| 1995 | Honda | Prelude | S |
| 1996 | Honda | Prelude | S |
| 1995 | Honda | Prelude | SE |
| 1992 | Honda | Prelude | Si |
| 1993 | Honda | Prelude | Si |
| 1994 | Honda | Prelude | Si |
| 1995 | Honda | Prelude | Si |
| 1996 | Honda | Prelude | Si |
| 1992 | Honda | Prelude | Si 4WS |
| 1993 | Honda | Prelude | Si 4WS |
| 1994 | Honda | Prelude | Si 4WS |
| 1997 | Honda | Prelude | Type SH |
| 1998 | Honda | Prelude | Type SH |
| 1999 | Honda | Prelude | Type SH |
| 2000 | Honda | Prelude | Type SH |
| 2001 | Honda | Prelude | Type SH |
| 1993 | Honda | Prelude | VTEC |
| 1994 | Honda | Prelude | VTEC |
| 1995 | Honda | Prelude | VTEC |
| 1996 | Honda | Prelude | VTEC |
FAQ
What does the Xtreme pressure plate add over a Heavy Duty plate?
The Xtreme pressure plate increases clamp load further than ACT's Heavy Duty option, giving more holding capacity for higher-power, race-oriented builds.
Is the 6-pad race disc streetable?
It can be driven on the street, but engagement is noticeably firmer than a street disc; it is intended for drivers prioritizing quick shifts and heat capacity over smooth engagement.
What is included in the HA3-XTG6 kit?
The kit includes the ACT Xtreme pressure plate and the 6-pad spring-centered race disc sized for this application.
Does this kit fit both Accord and Prelude?
Yes, HA3-XTG6 is a shared-platform kit covering the applicable Acura CL, Honda Accord, and Honda Prelude trims listed in the Vehicle Applications table.
