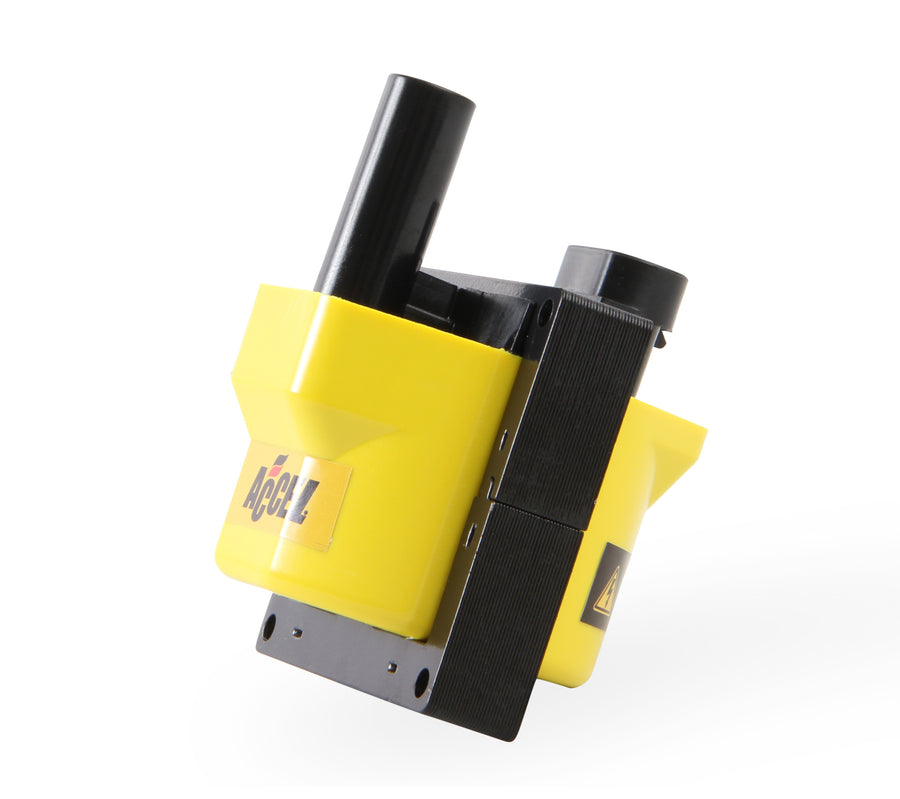

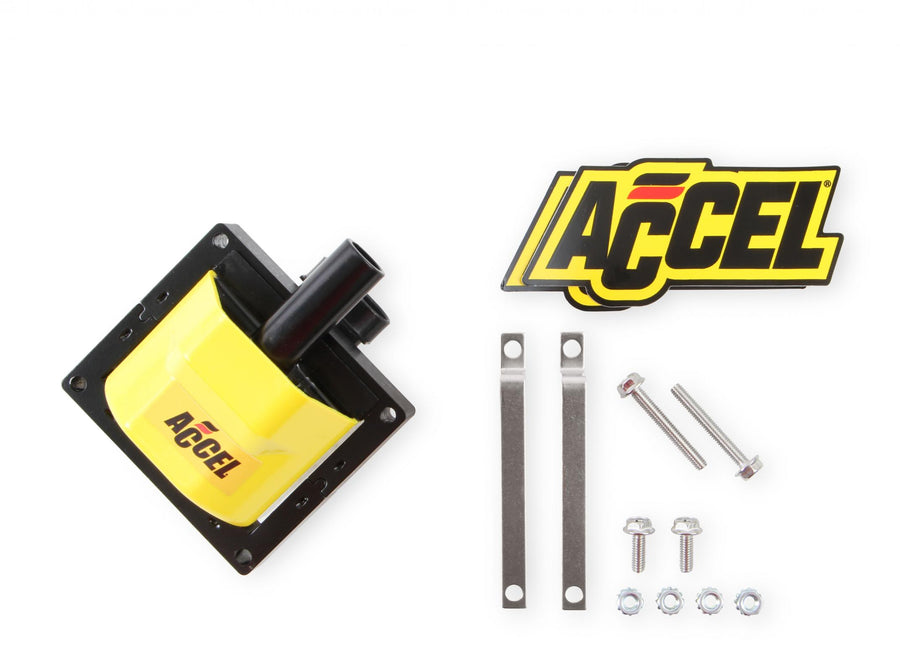

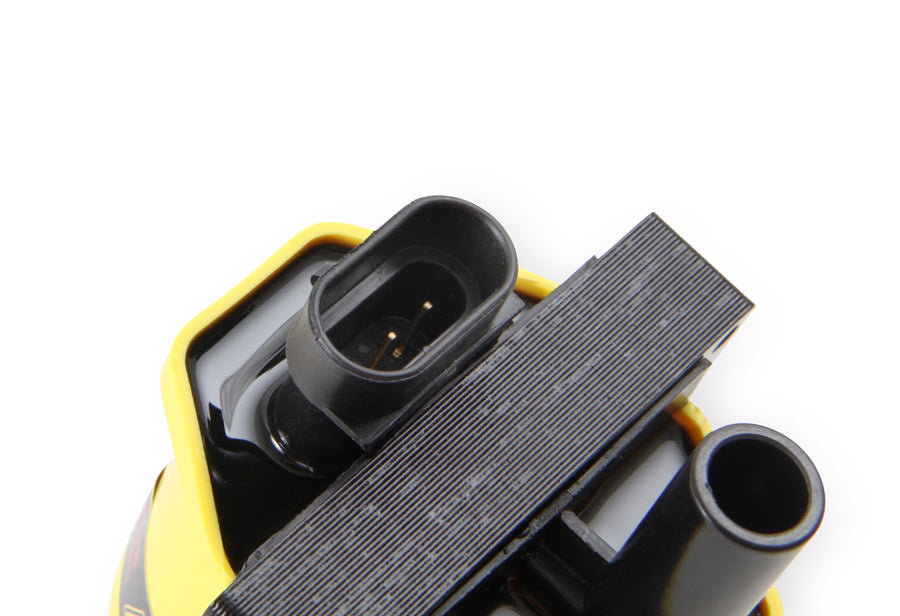

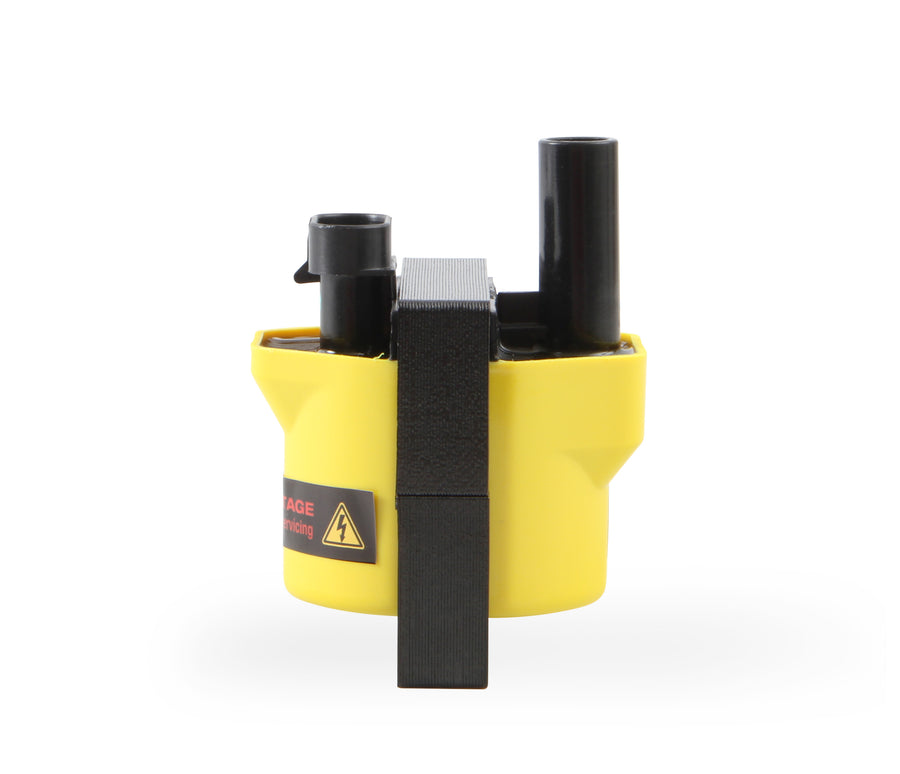

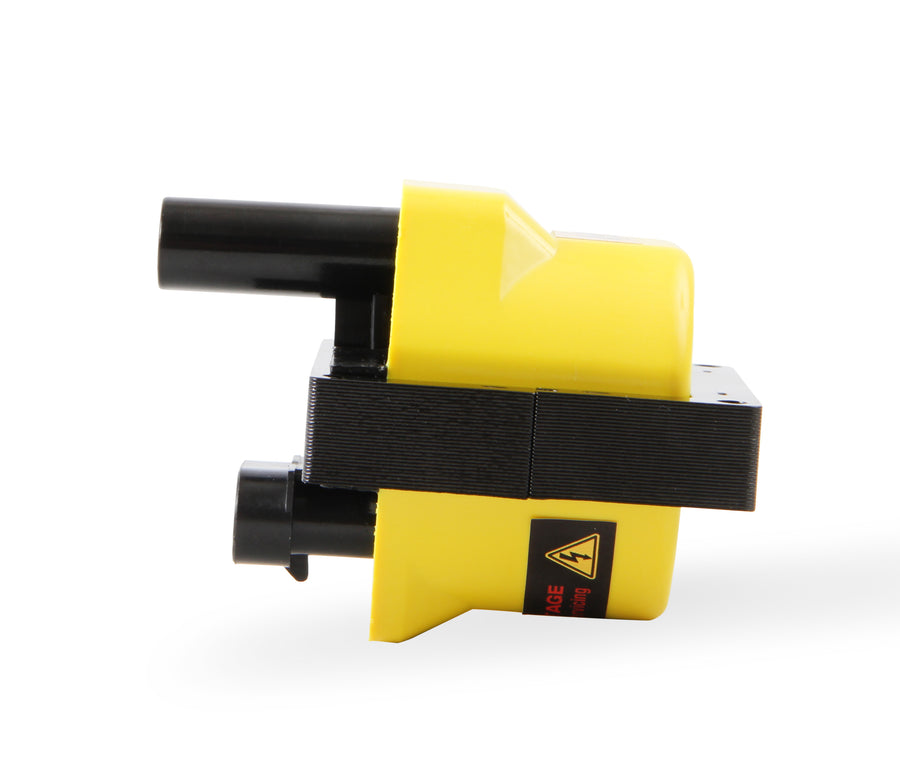

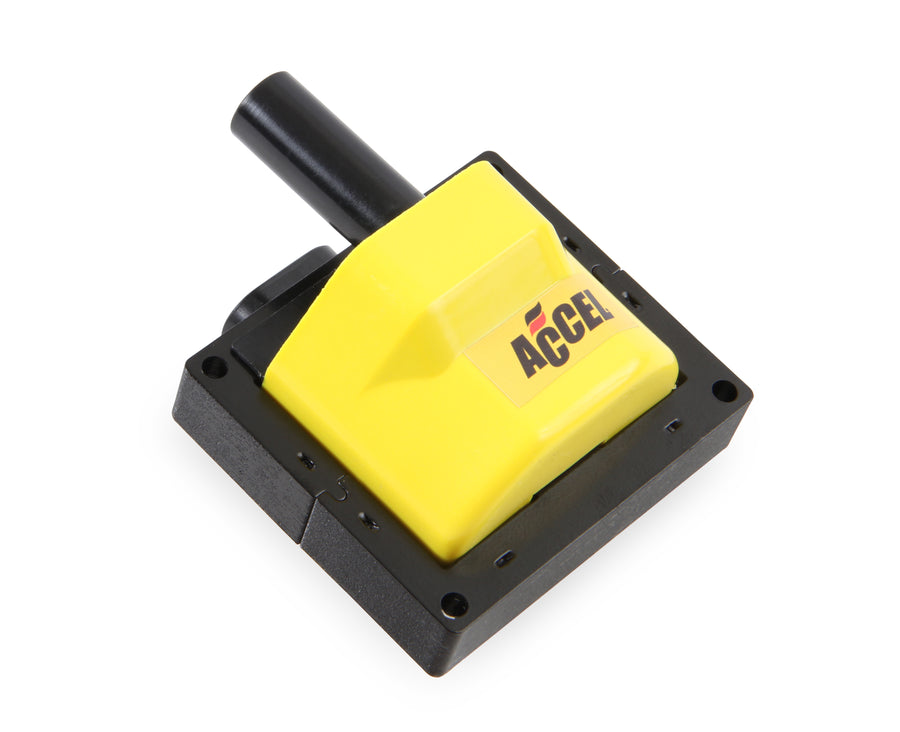

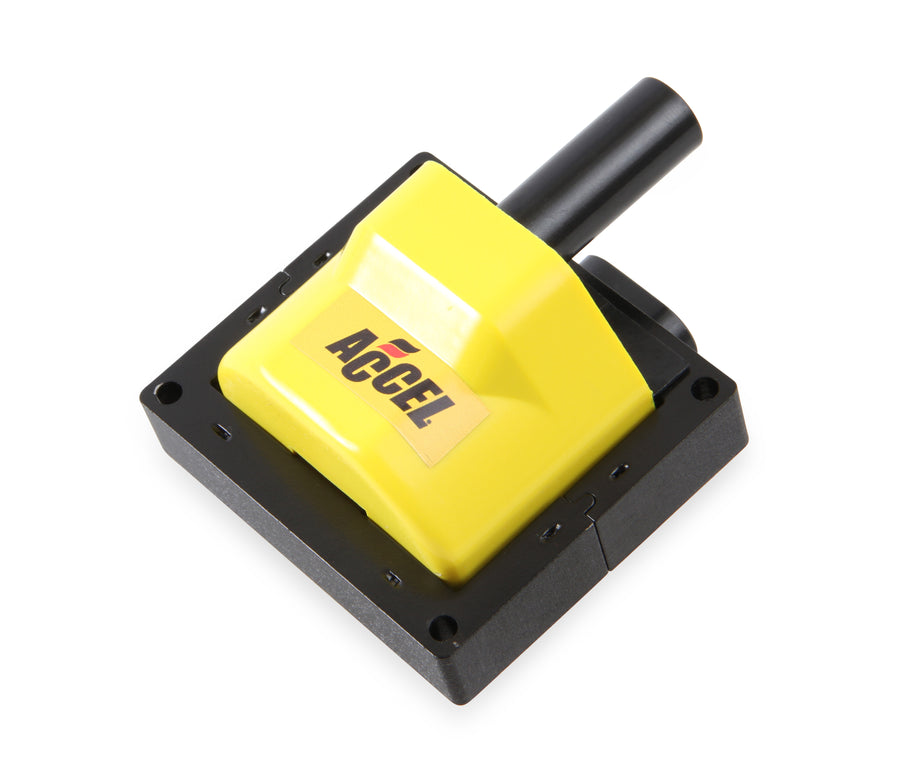

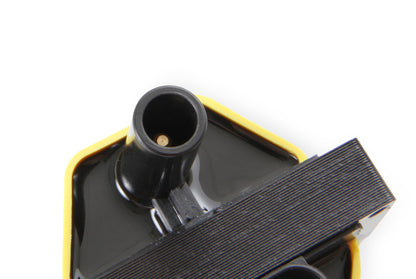

The ACCEL 140024ACC is an ACCEL SuperCoil ignition coil for 1996-2001 GM Vortec 5.0, 5.7, and 7.4L engines with the remote-mount HEI system. It is engineered with optimized low-resistance, high-turns-ratio windings around an M36 high-silicon magnetic steel E-core, producing up to 48,000 volts for quicker starts, a smoother idle, crisper throttle response, and more high-RPM power. It is a direct bolt-in, plug-in replacement, works with CD ignition systems, and uses brass contacts. High-temperature epoxy resists shock and vibration.
- Type: SuperCoil, E-core (remote-mount HEI)
- Sold As: Single
- Color: Yellow
- Max Voltage: 48,000 V
- Primary Resistance: 0.2 ohm
- Secondary Resistance: 6.7 k-ohm
- Turns Ratio: 92:1
- Energy vs OE: +11%
- Fits: 1996-2001 GM Vortec 5.0/5.7/7.4L HEI
- CD Compatible: Yes
- Replacement: Direct bolt-in / plug-in
- Part Number: 140024ACC
Vehicle Application: 1996-2001 GM Vortec 5.0/5.7/7.4L with remote-mount HEI.
WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
FAQ
What does the ACCEL 140024ACC fit?
1996-2001 GM Vortec 5.0, 5.7, and 7.4L engines with the remote-mount HEI system.
What is the output?
Up to 48,000 volts, with a 0.2 ohm primary and 92:1 turns ratio.
Is it a direct replacement?
Yes, a direct bolt-in, plug-in replacement that also works with CD ignition systems.
Will it help high-RPM power?
Yes, the higher energy and voltage output supports quicker starts and more high-RPM power.
