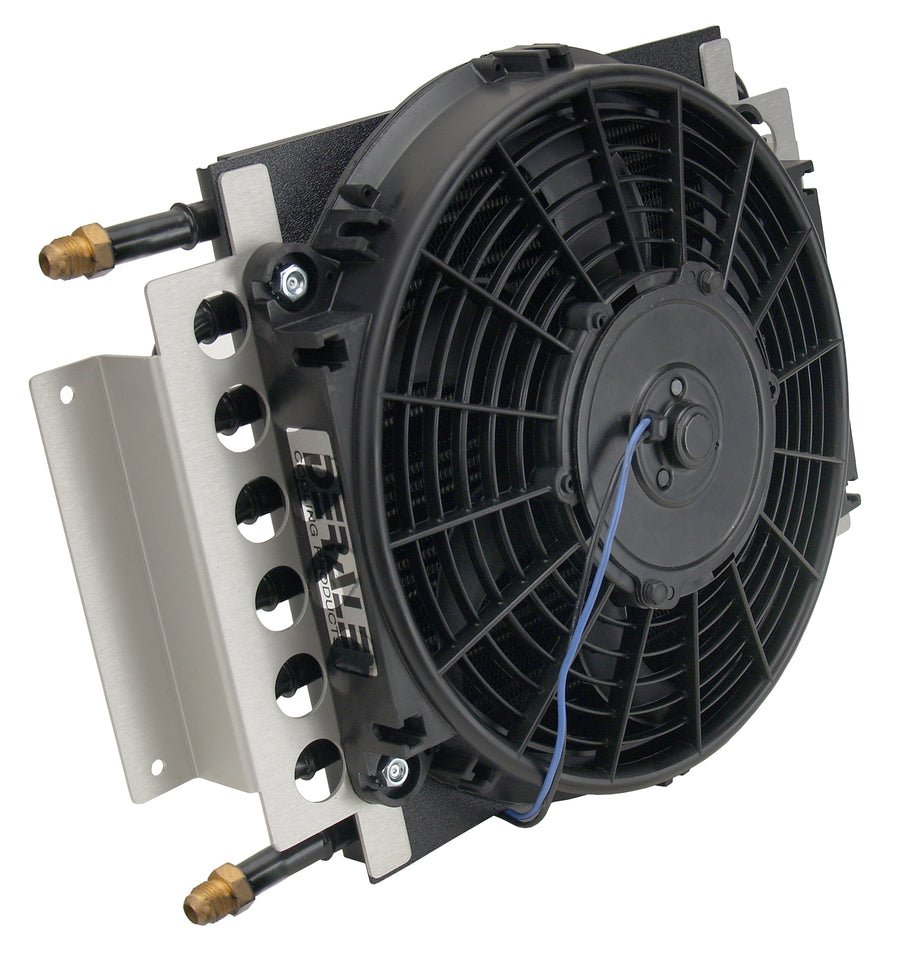

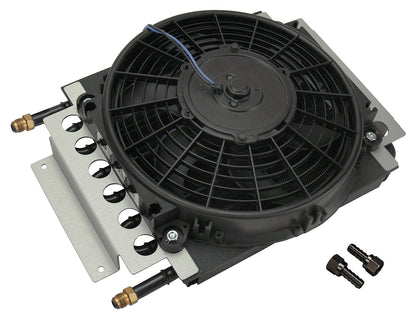

The Derale 13720 is an 8 pass Electra-Cool remote mount cooler with an integrated 10 inch Tornado fan. The reversible puller fan mounts on the cooler so it moves air across the tube and fin core even at a standstill, which suits remote mounting away from the airstream. It carries a clear anodized aluminum shroud, aluminum brackets, and aluminum -6AN fittings. It is designed for transmission, power steering, and fuel cooling.
Specifications:
- Type: Electra-Cool remote mount cooler (fan-mounted)
- Passes: 8
- Inlets: -6AN (aluminum fittings)
- Integrated fan: 10" Tornado electric fan, reversible puller
- Airflow: 650 CFM
- Amp draw: 5.3 A

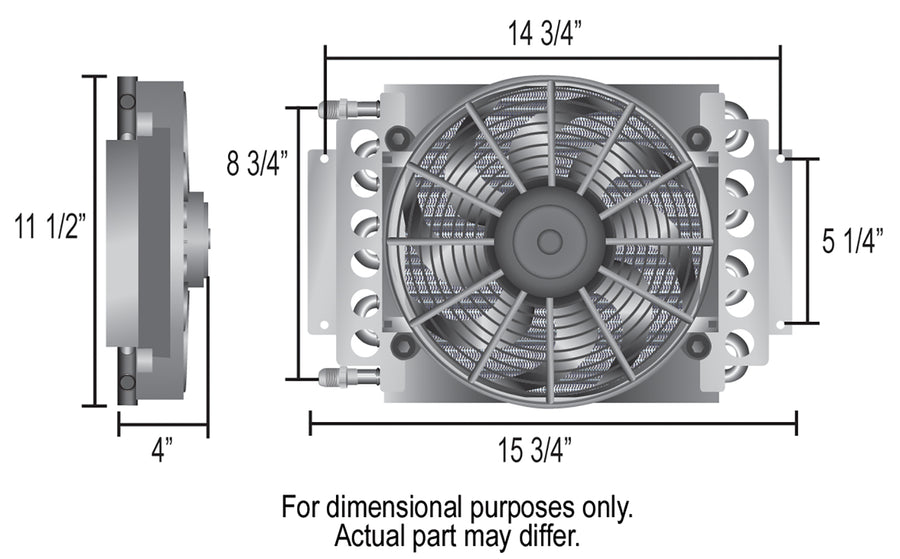

- Overall dimensions: 15-3/4" W x 11-1/2" H x 4" D
- Construction: Tube and fin core, clear anodized aluminum shroud, aluminum brackets
- Cools: Transmission, power steering, or fuel
- Part number: 13720
FAQ
How many passes is the Derale 13720 cooler?
It is an 8 pass Electra-Cool remote cooler.
Does it include a fan?
Yes, it has an integrated 10" Tornado reversible puller fan that moves about 650 CFM.
What inlets does it use?
It uses -6AN inlets with aluminum fittings.
What are the overall dimensions?
It measures 15-3/4" wide by 11-1/2" tall by 4" deep.
What can it cool?
It is designed for transmission, power steering, and fuel cooling.
