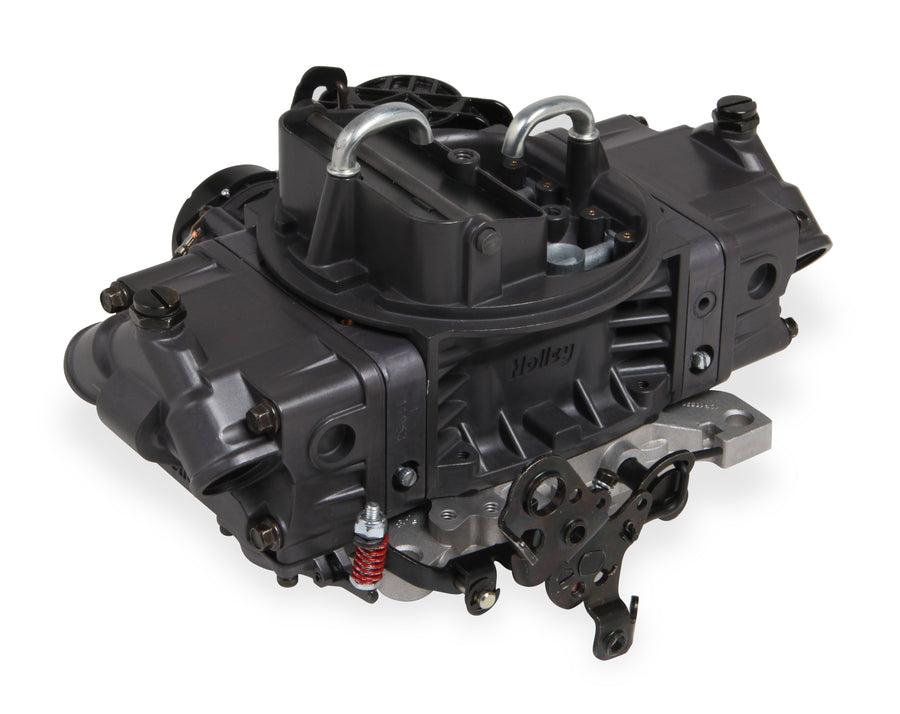

Building on the proven performance of the Aluminum Street Avenger series, the Marine Avenger is engineered for on-the-water use. This all-aluminum carburetor is hard coat anodized in a Hard Core Gray finish to resist corrosion in fresh or salt water, is built to exceed Coast Guard standards, and is J1223 Marine Standard certified. It carries the same limited lifetime warranty on parts as Holley's Street Avenger series, with one year of warranty coverage on repair labor.
Specifications:
- CFM: 770
- Carburetor Use: Marine
- Fuel Type: Gasoline
- Secondaries: Vacuum
- Choke: Electric
- Finish: Hard Core Gray
- Body Finish: E-Coated
- Flange Type: Square/4150
- Material: Aluminum
- Model: 4150
- Marine Use: Yes
- Marine Engine Size: Universal
- Primary Main Jet: 76
- Primary Power Valve: 10.5
- Primary Pump Nozzle Size: .025
- Secondary Main Jet: 89
- Throttle Bore: 1.6875 inch
- Venturi Size: 1.375 inch
- Warranty: Manufacturer's Limited 1 Year Warranty
- Part Number: 0-82770

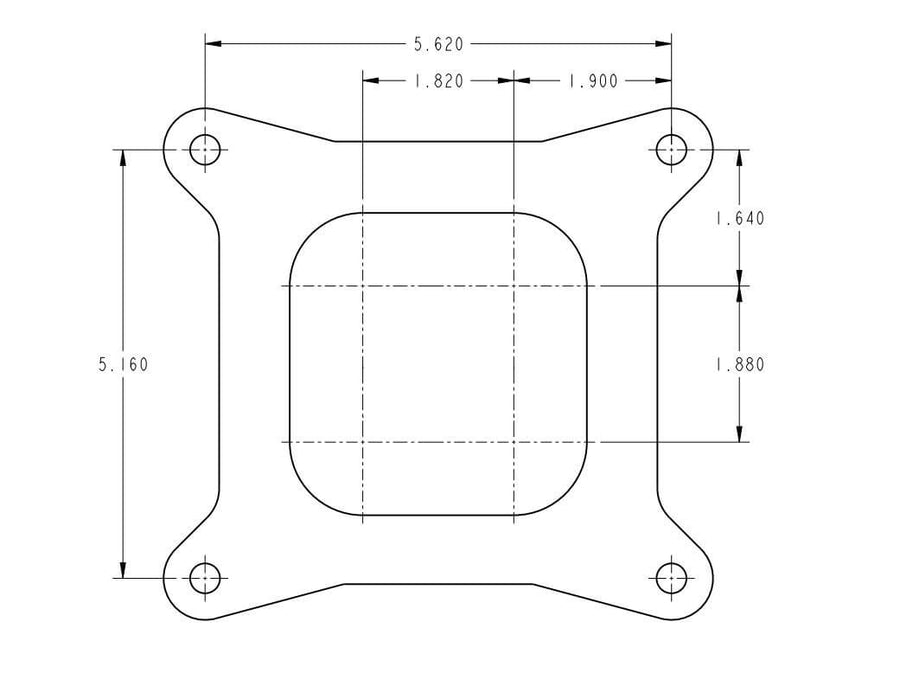

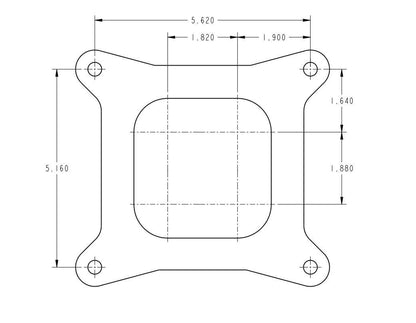

This carburetor uses the square-bore flange bolt pattern and can replace Holley, Edelbrock, Carter AFB, and Autolite carburetors with a 5-3/16" x 5-5/8" bolt pattern (similar to Mr. Gasket #1932). A spreadbore-style intake manifold will require an adapter.
FAQ
What CFM rating does this Marine Avenger carburetor have?
This Marine Avenger is rated at 770 CFM.
Is this carburetor built for marine use?
Yes, it's built to exceed Coast Guard standards and is J1223 Marine Standard certified for fresh or salt water use.
What finish does this carburetor have?
It's hard coat anodized in Hard Core Gray for corrosion protection in marine environments.
What idle control system does it use?
It uses a dual metering block system with four-corner idle adjustment for precision tuning.
What warranty coverage does this carburetor have?
It carries Holley's limited lifetime warranty on parts, with one year of coverage on repair labor.
