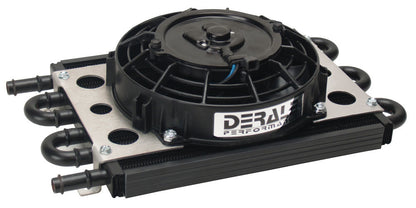

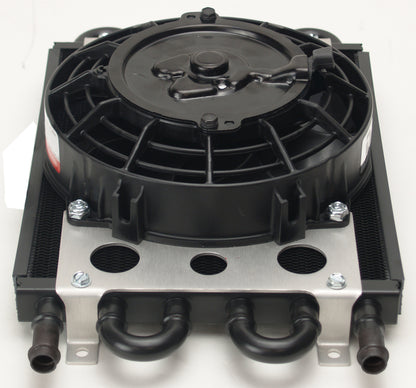

The Derale 15830 is a 6 pass Econo-Cool remote fluid cooler with a built-in 7 inch reversible Tornado electric fan, so it cools even when the vehicle is not moving. The copper and aluminum tube and fin core uses 1/2 inch barb inlets and is rated at 6,000 BTU per hour, which makes it a good light-duty cooler for transmission fluid, engine oil, power steering fluid, or fuel. The fan moves 400 CFM at a 4.8 amp draw, and the cooler is rated at 250 psi working pressure with 300 psi burst strength.
Specifications:
- Type: Econo-Cool remote fluid cooler with fan
- Cooler style: Tube and fin, 6 pass
- Construction: Copper tube with aluminum fin
- Inlet size: 1/2 inch barb
- Fan: 7 inch Tornado, puller (reversible)
- Airflow: 400 CFM
- Amp draw: 4.8 amps
- Cooling capacity: 6,000 BTU per hour
- Pressure: 250 psi working, 300 psi burst
- Additional fluid capacity: 4 oz

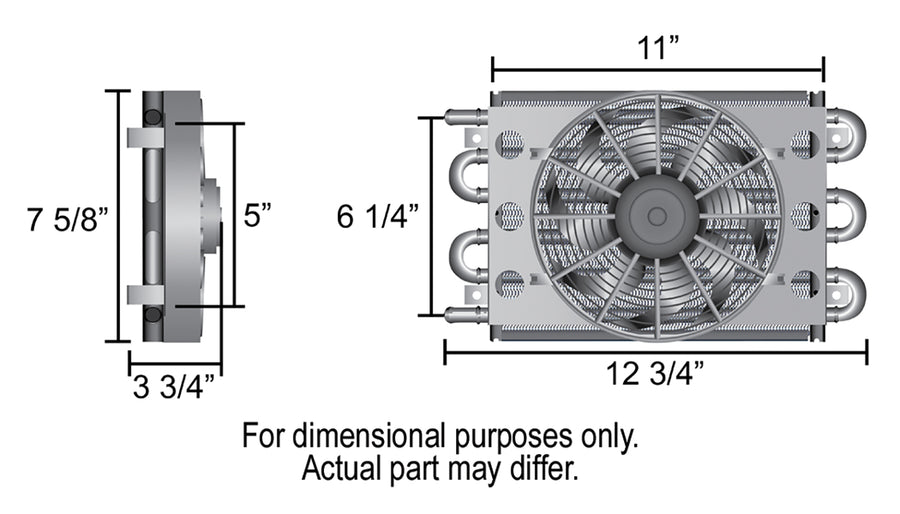

- Width: 12-3/4 inches
- Height: 7-5/8 inches
- Depth: 3-3/4 inches
- Mounting: 11 inch x 5 inch
- Part number: 15830
FAQ
What does the Derale 15830 cool?
It is a light-duty fluid cooler recommended for transmission fluid, engine oil, power steering fluid, or fuel.
Does the 15830 include a fan?
Yes, it has a built-in 7 inch reversible Tornado fan that moves 400 CFM at a 4.8 amp draw.
What inlet size does the 15830 use?
It uses 1/2 inch barb inlets.
What is the 15830 rated at?
The 6 pass core is rated at 6,000 BTU per hour, 250 psi working pressure, and 300 psi burst strength.
